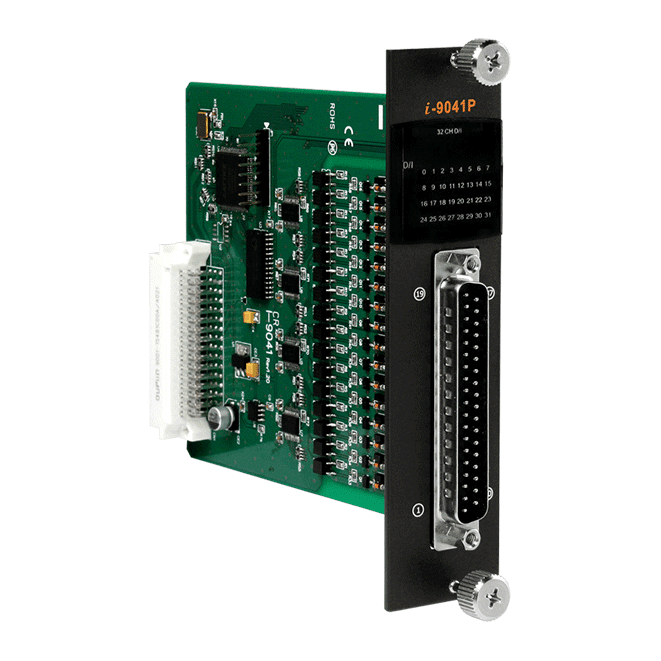

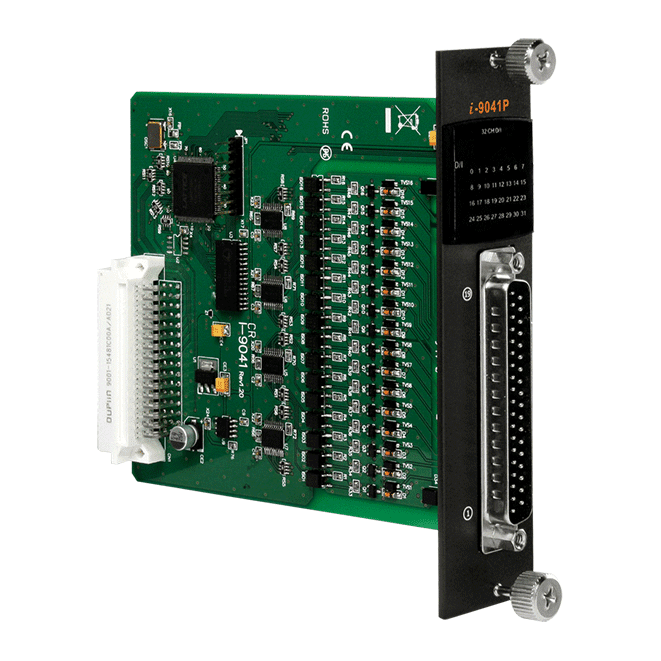

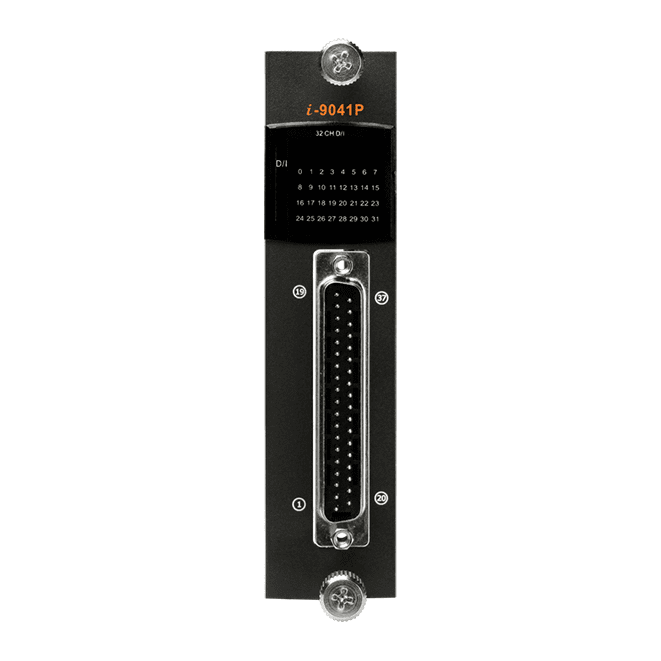

I-9041P 32-ch Isolated Sink (NPN) Digital Output Module, 10 to 50 VDC
32-channel sink-type (NPN) isolated digital output module for the I-9K/I-97K series, with 10 to 50 VDC load voltage, 100 mA per channel and overvoltage, overload and short-circuit protection.
- 32 sink-type (NPN) open collector digital outputs
- Load voltage +10 VDC to +50 VDC with 100 mA per channel
- Overvoltage protection to 60 VDC, overload protection at 1.1 A and short-circuit protection
- Configurable power-on value and safe value for each output
- 3750 Vrms field-to-logic isolation and 4 kV ESD protection
- 32 channel status LEDs plus power and communication indicator
2 437,49 kr per st.
| 1–9 st. | 2 437,49 kr | |
|---|---|---|
| 10–30 st. | 2 359,93 kr | −3 % |
| 31+ st. | 2 315,62 kr | −5 % |
Produktinformation "I-9041P 32-ch Isolated Sink (NPN) Digital Output Module, 10 to 50 VDC"
The I-9041P CR is a 32-channel sink-type digital output module from the I-9K/I-97K series, designed to switch field loads from an external supply of +10 VDC to +50 VDC. Each channel is rated at 100 mA, and a status LED for every output shows its on/off state.
Each output is protected against overvoltage (60 VDC), overload (1.1 A) and short circuits. Power-on and safe values can be configured for the outputs. Field-to-logic isolation of 3750 Vrms and 4 kV ESD protection are included, although channels are not isolated from each other.
For simpler wiring, the module can be paired with optional daughter boards such as the DN-37-381-A for easy field termination, or the DN-8K32R for relay output. The CR ordering code is listed as RoHS compliant, and the module is rated for an operating range of -25 ~ +75 °C.
Applications
- Switching industrial loads, switches and devices from an external 10 to 50 VDC supply
- Remote digital output expansion within I-9K/I-97K series PAC I/O systems
- Field wiring through optional DN-37-381-A daughter board
- Relay output switching via DN-8K32R daughter board
| Product type: | Digital output module |
|---|---|
| Digital outputs: | 32 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication 32 x DO |
| Digital Output | |
| Channels | 32 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ +50 VDC |
| Load Current | 100 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.1 A |
| Short-circuit Protection | Yes |
| Power on Value | Yes |
| Safe Value | Yes |
| Power | |
| Consumption | 1.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 134 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
