I-9040P 32-ch Isolated Digital Input Module, Sink/Source
32-channel isolated digital input module for +24 VDC systems, accepting dry contact, wet and 5 V/TTL signals with sink or source wiring and selectable low pass filtering.
- 32 photo-coupler isolated digital input channels
- Sink-type or source-type input selected by wiring
- Dry contact, wet (+19 VDC to +30 VDC ON) and 5 V/TTL inputs
- Selectable low pass filter from 1 ms to 70 ms, set by jumper or CPU parameter (disabled by default)
- 3750 VDC intra-module isolation and ±4 kV contact / ±8 kV air ESD protection
- 32 DI status LEDs plus a power and communication LED
2 204,82 kr per st.
| 1–9 st. | 2 204,82 kr | |
|---|---|---|
| 10–30 st. | 2 138,34 kr | −3 % |
| 31+ st. | 2 094,03 kr | −5 % |
Produktinformation "I-9040P 32-ch Isolated Digital Input Module, Sink/Source"

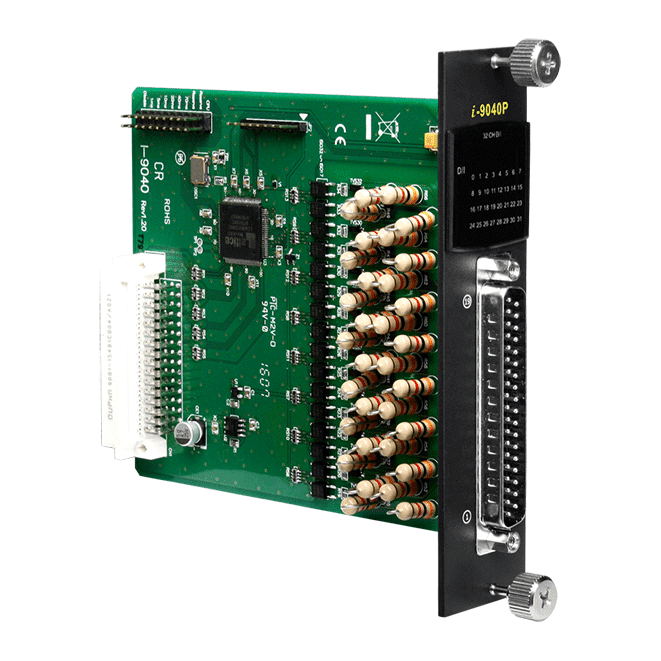

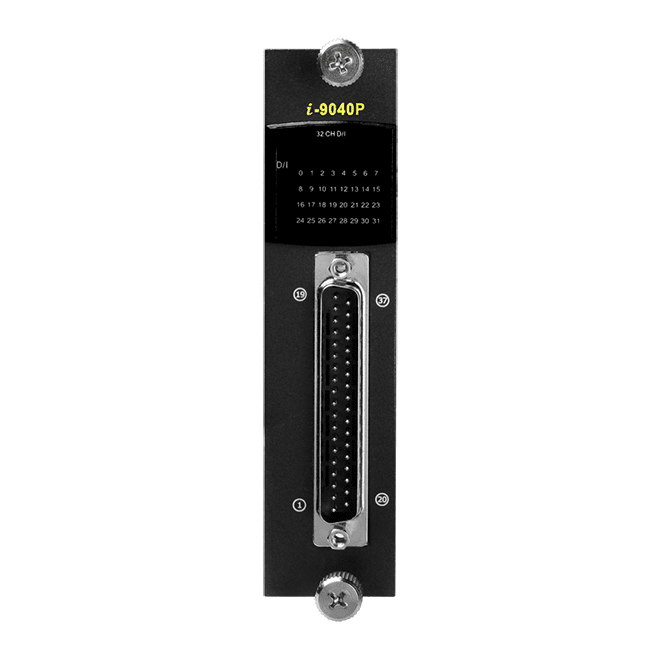

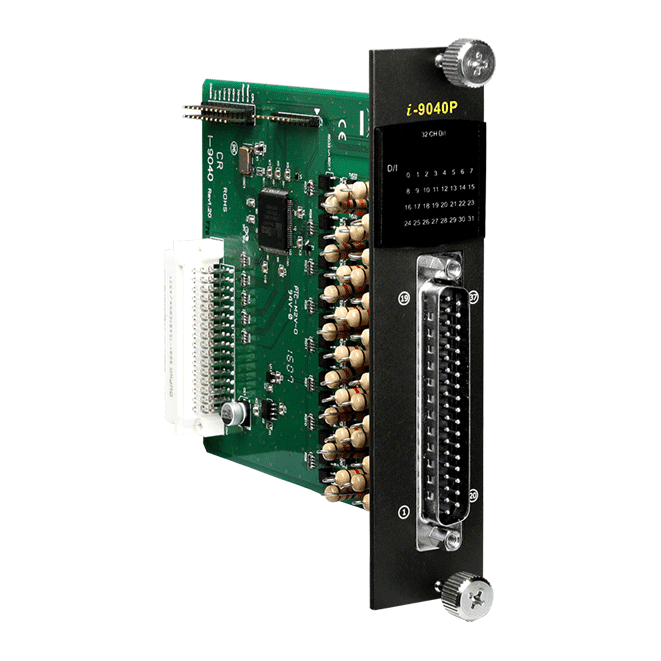

I-9040P CR is a 32-channel digital input module from the I-9K/I-97K series for PAC-based I/O systems. Each channel is photo-coupler isolated and can be wired as either a sink-type or source-type input, so one module suits both common input wiring arrangements. It accepts dry contacts, wet (24 V level) signals and 5 V/TTL signals.
Wet inputs switch on between +19 VDC and +30 VDC and switch off below +11 VDC, which fits +24 VDC digital input systems. A low pass filter with settings from 1 ms to 70 ms can be selected by jumper or CPU parameter, helping to suppress short-duration noise on field signals. The filter is disabled by default.
Each channel has its own status LED, with a further LED for power and communication. For easier field wiring, an optional daughter board such as the DN-37-381-A can be paired with the module. The module provides 3750 VDC intra-module isolation and ±4 kV contact and ±8 kV air ESD protection.
Applications
- Digital status monitoring in +24 VDC input systems
- Digital input expansion for PAC-based I/O (I-9K/I-97K series)
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 32 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication 32 x DI |
| Digital Input | |
| Channels | 32 |
| Type | Dry + Wet Contact 5 V/TTL |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +19 VDC ~ +30 VDC TTL: 0 V ~ +0.8 V |
| OFF Voltage Level | Dry: Open Wet: +11 VDC Max. TTL: +2 V ~ +5 V |
| Isolation | ON Voltage Level: +4 V ~ +30 V OFF Voltage Level: 0 V ~ +1 V |
| Input Impedance | 3 KΩ, 0.5W |
| Low Pass Filter | 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms, by Jumper select or CPU parameter settings; Default Setting is Disable |
| Power | |
| Consumption | 1 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 134 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
