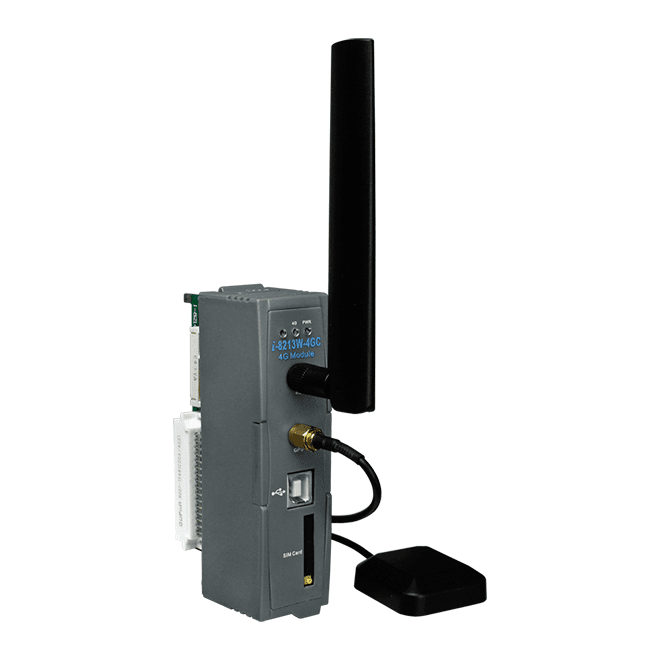

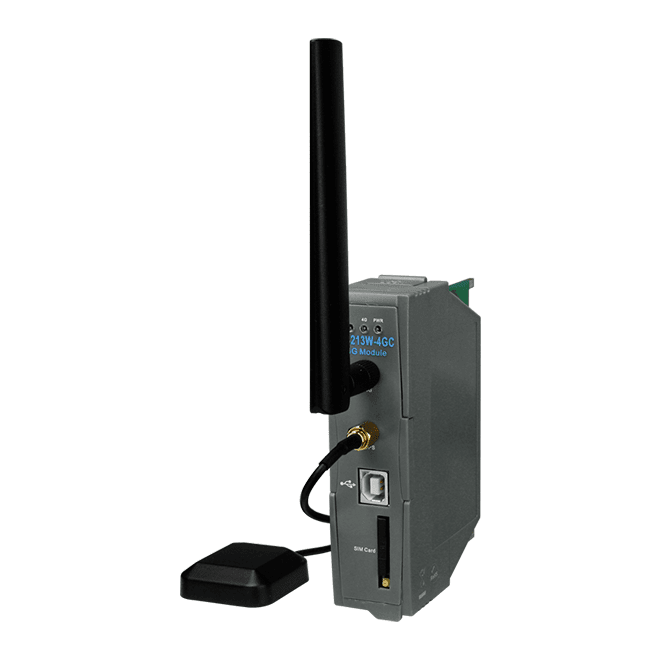

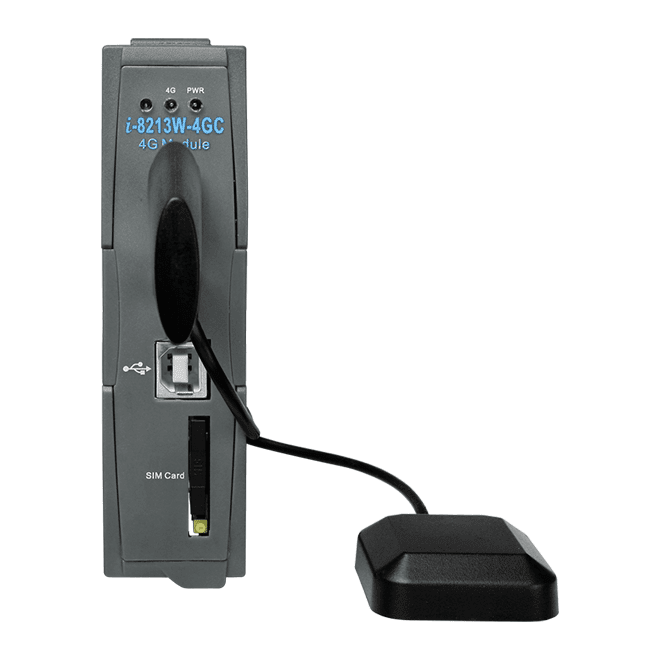

I-8213W-4GC Industrial 4G LTE Modem with GPS, FDD/TDD LTE Bands
Industrial 4G LTE modem with GPS for DIN-rail mounting. Covers FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41 bands, with an integrated TCP/IP stack and NMEA 0183 GPS output.
- Supports FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41 bands
- Integrated TCP Server, TCP Client and UDP Client connection stack over 4G, 3G or GPRS
- 32-channel GPS with NMEA 0183 (v3.01) output
- Standard AT command support
- Compatible with XP-8000, WinPAC-8000, LinPAC-8000 and ViewPA
- USB 2.0 (high speed) interface
5 528,67 kr per st.
| 1–9 st. | 5 528,67 kr | |
|---|---|---|
| 10–30 st. | 5 362,48 kr | −3 % |
| 31+ st. | 5 251,68 kr | −5 % |
Produktinformation "I-8213W-4GC Industrial 4G LTE Modem with GPS, FDD/TDD LTE Bands"
The I-8213W-4GC CR is an industrial 4G LTE modem with integrated GPS, intended for moving data from remote instruments, meters, computers or control systems over cellular networks. It supports FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41, alongside WCDMA, GPRS and SMS.
An integrated TCP/IP stack allows controllers with serial ports to reach the network without custom driver development. The module offers TCP Server, TCP Client and UDP Client connection modes over 4G, 3G or GPRS, and accepts standard AT commands.
The -4GC variant is the TDD-capable version, labelled for China in the product description. Its sister model, the I-8213W-4GE, covers FDD LTE B1/B3/B5/B7/B8/B20 instead. The module installs on DIN-rail and is rated for -25 to 75 °C operation, and it pairs with WinPAC-8000, LinPAC-8000 or XP-8000 controllers.
Applications
- Remote data transfer from instruments, meters, computers or control systems
- SMS, GPRS and 4G connections for PAC-based systems
- Live or packet data transfer over cellular networks
| Product type: | Modem |
|---|---|
| Interface: | USB 2.0 |
| Protocol: | TCP/IP |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x 4G |
| 2G System | |
| Data Transmission Rate | GPRS: Max 107Kbps (DL) / Max 85.6Kbps (UL) |
| Frequency Band | 900/1800 MHz |
| Coding Schemes | CS 1, CS 2, CS 3, CS 4 |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| 3G System | |
| Data Transmission Rate | DC-HSPA+: Max 42Mbps (DL) / Max 5.76Mbps (UL) TD-SCDMA:Max 4.2Mbps (DL) / Max 2.2Mbps (UL) CDMA2000 EVDO: Max 3.1Mbps (DL) / Max 1.8Mbps (UL) |
| Frequency Band | WCDMA 900/2100 MHz TDSCDMA : 1900/2100 MHz |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| SMS Mode | MT, MO, CB, Text and PDU mode |
| 4G System | |
| Data Transmission Rate | LTE FDD: Max 150Mbps (DL) / Max 50Mbps (UL) LTE TDD: Max 130 Mbps (DL) / Max 30Mbps (UL) |
| Frequency Band | FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41 |
| GPS/GNSS | |
| Protocol | NMEA 0183 |
| Support Channels | 32 |
| USB | |
| Specification | USB 2.0 (high speed) |
| Power | |
| Consumption | Idle: 0.15 A @ 5 VDC; Data Link: 0.2 ~ 1.62 A (peak) @ 5 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 30 x 85x 114 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25℃ to 75℃ |
| Storage Temperature | -30°C ~ +80 °C |
| Humidity | 5~95% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
