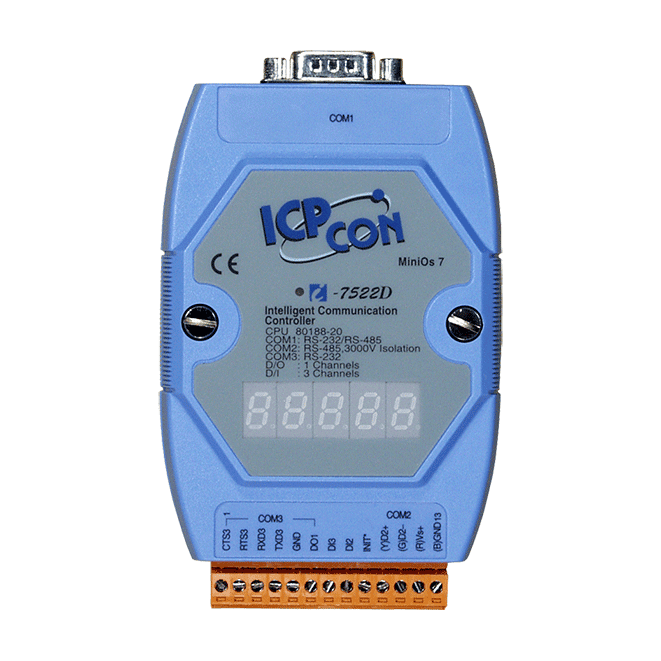

I-7522D Addressable RS-485 to RS-232/RS-485 Converter with 2 DI, 1 DO
Addressable RS-485 to 2 x RS-232/RS-485 converter that gives RS-232 devices a unique address on an RS-485 network, with 2 DI, 1 DO and a 7-segment LED display.
- Addressable RS-485 to RS-232 converter firmware with device addressing for RS-232 devices
- Master-type operation, not dependent on a host PC
- 2 digital inputs (dry contact) and 1 open-collector digital output, +30 VDC, 100 mA
- Dual-watchdog commands and power-up and safe values for DO
- 3000 V isolation on the RS-485 interface
- 1KB queue buffer for each RS-232 interface, up to 115200 bps
2 736,64 kr per st.
| 1–9 st. | 2 736,64 kr | |
|---|---|---|
| 10–30 st. | 2 659,08 kr | −3 % |
| 31+ st. | 2 603,68 kr | −5 % |
Produktinformation "I-7522D Addressable RS-485 to RS-232/RS-485 Converter with 2 DI, 1 DO"
The I-7522D CR lets RS-232 devices sit on an RS-485 network with their own address. Commands from the host carry the device address, the converter strips it and passes the command to the locally attached RS-232 device, and the reply returns through the module to the host. Each RS-232 interface has a 1KB queue buffer.
Unlike slave-type converters that depend on a host PC to operate, this unit is described by the manufacturer as a master-type converter, so it can run its own logic. It adds two dry-contact digital inputs and one open-collector digital output, all monitored and controlled in real time, with dual-watchdog commands and power-up and safe values for the output.
The RS-485 port is isolated to 3000 V. The blue-cover version is supplied with a 7-segment LED indicator, a +10 ~ 30 VDC supply input with reverse polarity protection, and DIN-rail or wall mounting for industrial cabinets.
Applications
- Connecting RS-232 devices to an RS-485 network with individual addressing
- Adding local digital I/O to serial-based industrial installations
| Product type: | Converter |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 2 |
| Digital outputs: | 1 |
| Ports: | 3 |
| Isolation: | 3000 V (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188 or compatible, 20 MHz |
| Flash | 512 KB |
| SRAM | 128 KB |
| Watchdog Timer | Yes |
| Digital Input | |
| Channels | 2 |
| Type | Dry Contact, Non-isolated |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 1 |
| Type | Open Collector |
| Load Voltage | +30 VDC |
| Load Current | 100 mA |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 (3000 VDC Isolated) 1 x RS-232/RS-485 (DB-9 male) |
| Baud Rate | 115200 bps Max. |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
