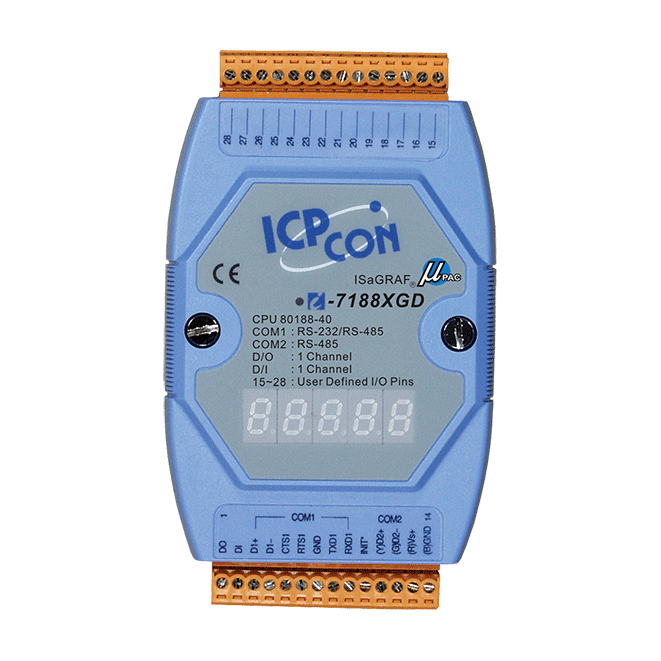

I-7188XGD ISaGRAF Palm-Sized Serial PAC with 5-Digit 7-Segment LED Display
Palm-sized ISaGRAF SoftLogic PAC with a 40 MHz 80188 CPU, two serial ports and a 5-digit 7-segment LED display for DIN-rail serial control.
- 80188 CPU at 40 MHz running MiniOS7
- Embedded ISaGRAF Ver.3 SoftLogic programmable to IEC 61131-3
- Modbus RTU/ASCII master and Modbus RTU slave support
- Two non-isolated serial ports: RS-232/RS-485 and RS-485, up to 115200 bps
- 5 x digit 7-segment LED display, the defining feature of the -GD version
- One dry-contact digital input and one open-collector digital output, +30 VDC max., 100 mA
3 811,35 kr per st.
| 1–9 st. | 3 811,35 kr | |
|---|---|---|
| 10–30 st. | 3 700,55 kr | −3 % |
| 31+ st. | 3 623,00 kr | −5 % |
Produktinformation "I-7188XGD ISaGRAF Palm-Sized Serial PAC with 5-Digit 7-Segment LED Display"
The I-7188XGD is a compact programmable automation controller that runs IEC 61131-3 logic through embedded ISaGRAF Ver.3 SoftLogic on a 40 MHz 80188 CPU under MiniOS7. It suits engineers who need serial device control and local logic in a small footprint on a DIN rail.
Two serial ports, RS-232/RS-485 and RS-485, support Modbus RTU/ASCII master and Modbus RTU slave operation, along with DCON and user-defined protocols. The I-7188XGD adds a 5-digit 7-segment LED display to the base I-7188XG, which is useful for showing status values on the unit itself. An X-Board expansion option can add COM ports, I/O or memory if the standard configuration is not enough.
Note that ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs. Where that applies, Win-GRAF is the suitable development environment.
Applications
- Serial device control over RS-232/RS-485 networks
- Modbus RTU master or slave communication
- Local logic control in DIN-rail control cabinets
| Product type: | PAC |
|---|---|
| Interface: | RS-232/RS-485, RS-485 |
| Protocol: | Modbus RTU/ASCII |
| Digital inputs: | 1 |
| Digital outputs: | 1 |
| Ports: | 2 |
| Isolation: | Non-isolated |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Palm-sized |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Protocol | • NET ID • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU remote I/O • Fbus • SMS |
| Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module | |
| CPU | 80188, 40 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 1 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 1 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
| I/O Type | X-board |
| COM Ports | |
| Ports | 1 x RS-485, Non-isolated 1 x RS-232/485, Non-isolated |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
