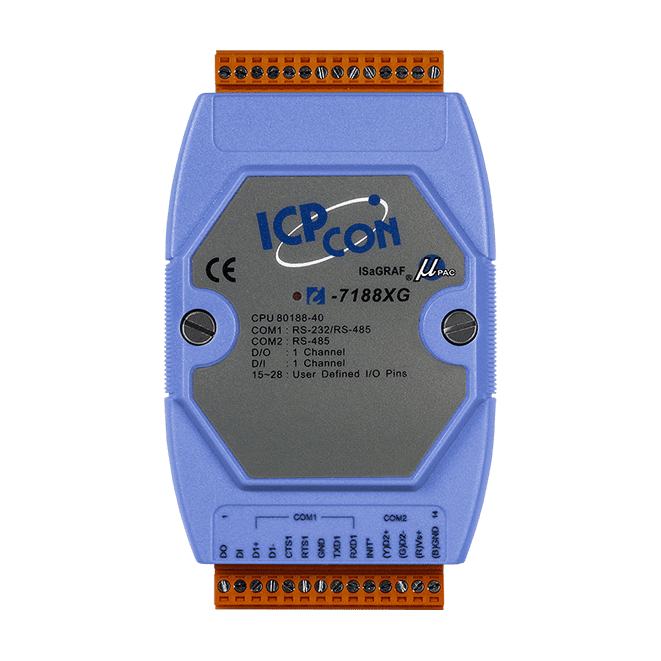

I-7188XG ISaGRAF Palm-Sized Serial PAC with 1 DI and 1 DO
Palm-sized ISaGRAF-based serial PAC with an 80188 40 MHz CPU, MiniOS7, two serial ports, one digital input and one open-collector digital output. Supports Modbus RTU/ASCII master and Modbus RTU slave.
- 80188 CPU at 40 MHz running MiniOS7
- Embedded ISaGRAF Ver.3 SoftLogic programmable to IEC 61131-3
- Modbus RTU/ASCII master and Modbus RTU slave support
- Two serial ports: RS-232/RS-485 and RS-485, non-isolated, up to 115200 bps
- One dry-contact digital input and one open-collector digital output (+30 VDC max., 100 mA)
- X-Board I/O expansion option to add COM ports, I/O or memory
3 490,04 kr per st.
| 1–9 st. | 3 490,04 kr | |
|---|---|---|
| 10–30 st. | 3 390,33 kr | −3 % |
| 31+ st. | 3 312,77 kr | −5 % |
Produktinformation "I-7188XG ISaGRAF Palm-Sized Serial PAC with 1 DI and 1 DO"
The I-7188XG CR is a compact programmable automation controller that runs embedded ISaGRAF Ver.3 SoftLogic to IEC 61131-3, making it a practical choice for local control logic in a small DIN-rail footprint. It combines an 80188 CPU at 40 MHz with MiniOS7 and two serial ports for connecting field devices.
Two serial ports are provided, one RS-232/RS-485 and one RS-485, both non-isolated and capable of up to 115200 bps. Modbus RTU/ASCII master and Modbus RTU slave functions are supported, alongside DCON, user-defined protocols and remote I/O over DCON or Modbus RTU. An optional X-Board can be fitted to add COM ports, I/O or memory.
This variant has no 5-digit 7-segment LED display; that feature is found on the I-7188XGD. Note that ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs, so Win-GRAF is the suitable programming environment in that case.
Applications
- Standalone IEC 61131-3 control logic in compact cabinets
- Serial Modbus RTU/ASCII master polling of field devices
- Serial device gateways and local I/O on DIN-rail panels
| Product type: | PAC |
|---|---|
| Interface: | RS-232/RS-485, RS-485 |
| Protocol: | Modbus RTU/ASCII |
| Digital inputs: | 1 |
| Digital outputs: | 1 |
| Ports: | 2 |
| Isolation: | Non-isolated |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Protocol | • NET ID • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU remote I/O • Fbus • SMS |
| Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module | |
| CPU | 80188, 40 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 1 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 1 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
| I/O Type | X-board |
| COM Ports | |
| Ports | 1 x RS-485, Non-isolated 1 x RS-232/485, Non-isolated |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
