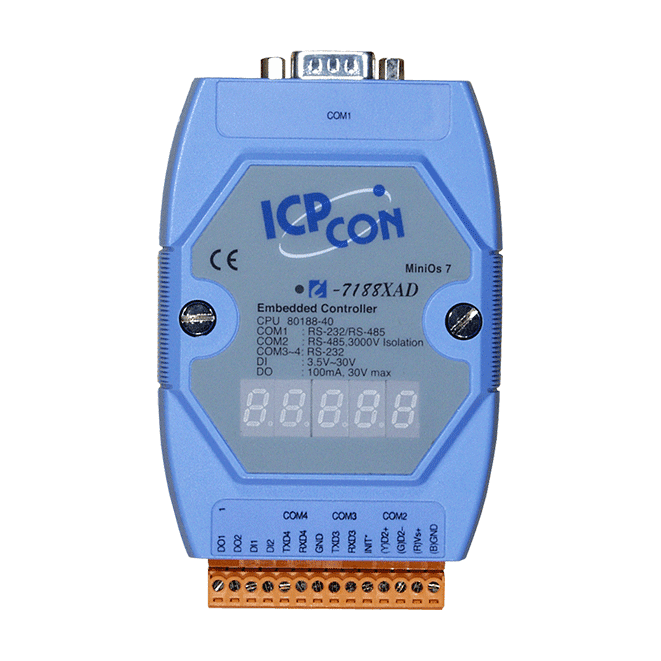

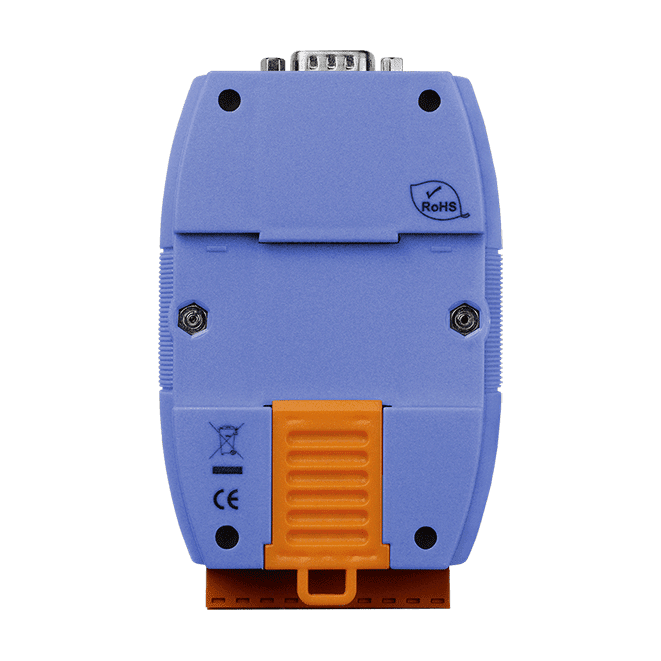

I-7188XAD Serial PAC with 80188-40 CPU, MiniOS7 and 4 Serial Ports
Serial PAC with 80188-40 CPU and MiniOS7 for embedded control, offering 4 serial ports, 2 dry contact inputs, 2 open-collector outputs and an I/O expansion bus.
- 80188-40 CPU running MiniOS7, programmed in C
- 4 serial ports: 2 x RS-232, 1 x RS-485 and 1 x RS-232/RS-485
- 2 dry contact digital inputs and 2 open-collector outputs (+30 VDC max., 100 mA)
- 512 KB flash, 512 KB SRAM and 2 KB EEPROM
- X-board I/O expansion bus interface
- Real-time clock, watchdog timer and 64-bit hardware serial number
3 246,29 kr per st.
| 1–9 st. | 3 246,29 kr | |
|---|---|---|
| 10–30 st. | 3 146,58 kr | −3 % |
| 31+ st. | 3 080,10 kr | −5 % |
Produktinformation "I-7188XAD Serial PAC with 80188-40 CPU, MiniOS7 and 4 Serial Ports"
The I-7188XAD CR is a compact serial PAC built around an 80188-40 CPU and the MiniOS7 operating system, programmed in C. It suits palm-size embedded controllers where a PC or PLC would otherwise be used, particularly in harsh environments that demand reliable operation.
On board you get two RS-232 ports, one RS-485 port and one RS-232/RS-485 combo port, along with 2 dry contact digital inputs and 2 open-collector digital outputs rated at +30 VDC max. and 100 mA. An X-board I/O expansion bus lets you add further I/O to match the application.
Storage includes 512 KB flash, 512 KB SRAM and 2 KB EEPROM, and the unit adds a 64-bit hardware serial number, a real-time clock, a watchdog timer and a 5-digit 7-segment LED display. It is a practical processor core for OEM products, with a DIN-rail mounting option and an operating range of -25 ~ +75 °C.
Applications
- Embedded control in harsh environments
- Replacing PC or PLC devices in compact controller roles
- Processor core component for OEM products
- Palm-size embedded systems requiring high reliability
| Product type: | Serial PAC |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Ports: | 4 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 2 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
| I/O Type | X-board |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
