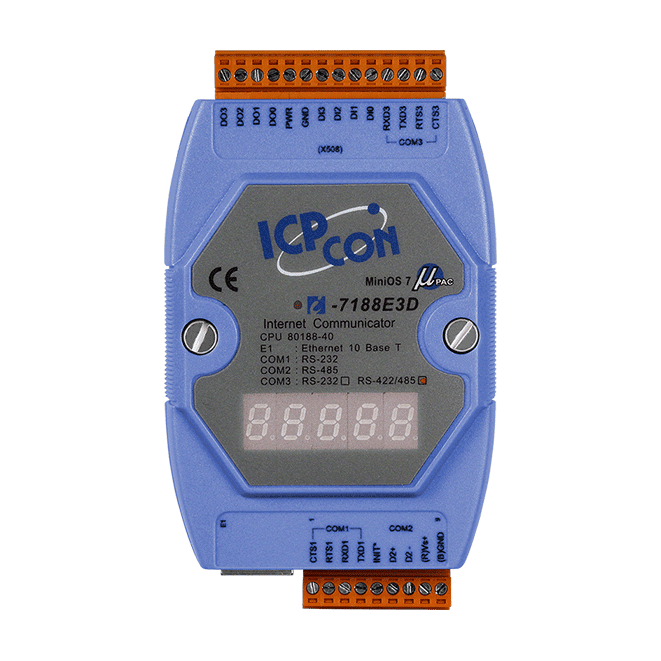

I-7188E3D Programmable Ethernet to Serial Converter, RS-232/422/485
Programmable device server that links one RS-232, one RS-422 and one RS-485 serial device to Ethernet using Virtual COM or raw TCP. Includes built-in MiniOS7 and an LED status display.
- Connects one RS-232, one RS-422 and one RS-485 serial device to Ethernet in a single unit
- Virtual COM or raw TCP data transmission
- VxComm driver for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016
- Built-in MiniOS7 and Xserver programming structure for custom Ethernet applications
- Watchdog timer for harsh industrial environments
- Compact housing with LED status display
3 268,45 kr per st.
| 1–9 st. | 3 268,45 kr | |
|---|---|---|
| 10–30 st. | 3 168,74 kr | −3 % |
| 31+ st. | 3 102,26 kr | −5 % |
Produktinformation "I-7188E3D Programmable Ethernet to Serial Converter, RS-232/422/485"
The I-7188E3D (ordering code I-7188E3D CR) is a programmable device server for bringing three serial devices onto an Ethernet network. It provides one RS-232, one RS-422 and one RS-485 port, so engineers can connect legacy serial equipment without replacing it. Data can be passed through as a Virtual COM port for existing Windows software, or as a raw TCP connection for custom applications.
Built around the MiniOS7 operating system and an Xserver programming structure, the unit suits applications where the serial logic needs to be adapted or extended. It also carries 4 digital inputs and 4 open-collector digital outputs, with a watchdog timer for reliable operation in harsh environments.
Key electrical and environmental details:
- Power input: +10 VDC to +30 VDC (non-regulated), with reverse polarity protection
- Operating temperature: -25 °C to +75 °C
- Dimensions: 123 mm x 72 mm x 33 mm
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-422, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 3 serial |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Digital Input | |
| Channels | 4 |
| Type | Wet Contact, Dry Contact |
| Sink/Source (NPN/PNP) | Wet:Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Load Voltage | +30 VDC Max. |
| Load Current | 100 mA |
| Ethernet | |
| Ports | 10 BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-422 (TXD+, TXD-, RXD+, RXD-) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Humidity | 5 to 95 %, non-condensing |
