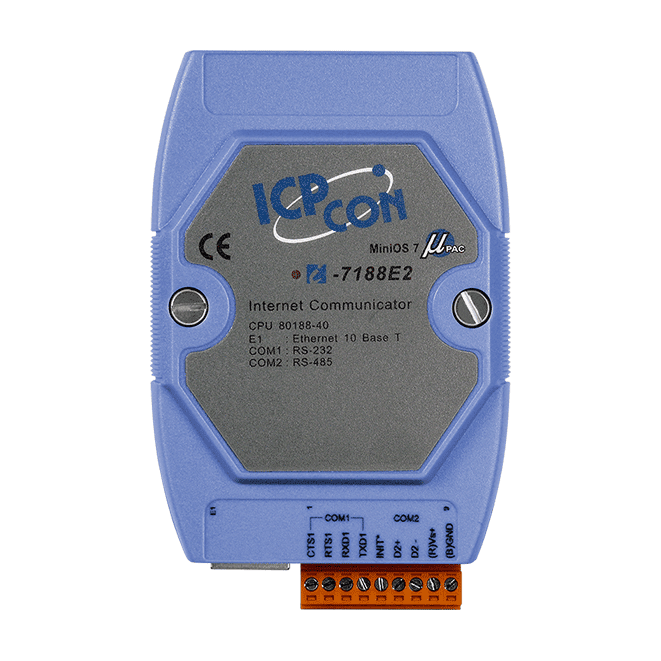

I-7188E2 Programmable Ethernet to 2-Port Serial Converter (RS-232/RS-485)
Programmable device server that links one RS-232 and one RS-485 serial device to Ethernet, using Virtual COM or raw TCP on a built-in MiniOS7 platform.
- Bridges one RS-232 port and one RS-485 port to Ethernet
- Data transmission via Virtual COM or raw TCP connection
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 from ICP DAS, boots in one second
- Watchdog timer suitable for harsh environments
- Removable on-board terminal block for wiring
1 850,28 kr per st.
| 1–9 st. | 1 850,28 kr | |
|---|---|---|
| 10–30 st. | 1 794,88 kr | −3 % |
| 31+ st. | 1 761,64 kr | −5 % |
Produktinformation "I-7188E2 Programmable Ethernet to 2-Port Serial Converter (RS-232/RS-485)"
I-7188E2 is a programmable Ethernet device server that brings an RS-232 device and an RS-485 device onto a network. Each serial port can be accessed over Ethernet, so existing serial equipment can be integrated without replacing it.
Data can be passed through as Virtual COM ports, which suits software written for standard COM ports, or as raw TCP connections for direct socket communication. A VxComm driver supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016.
The unit runs the built-in MiniOS7 from ICP DAS and includes a watchdog timer for unattended operation in harsh environments. Its removable on-board terminal block simplifies field wiring, and the compact housing measures 123 mm x 72 mm x 33 mm.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 2 |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
