I-7017R-A5-G 8-ch High Voltage AI Module, ±50 V / ±150 V, DCON RS-485
8-channel high-voltage analog input module for ±50 V and ±150 V signals, with an RS-485 DCON interface, 16-bit resolution and 3000 VDC intra-module isolation.
- ±50 V and ±150 V input ranges, voltage input only on this -A5 variant
- 8 differential analog input channels with 16-bit resolution
- Overvoltage and common voltage protection rated at ±200 VDC
- Adjustable sampling: Normal Mode 10 Hz, Fast Mode 50 Hz
- 3000 VDC intra-module isolation and ±4 kV ESD contact protection per terminal
- 1 x RS-485 port with DCON protocol, 1200 ~ 115200 bps
2 703,40 kr per st.
| 1–9 st. | 2 703,40 kr | |
|---|---|---|
| 10–30 st. | 2 614,76 kr | −3 % |
| 31+ st. | 2 559,36 kr | −5 % |
Produktinformation "I-7017R-A5-G 8-ch High Voltage AI Module, ±50 V / ±150 V, DCON RS-485"

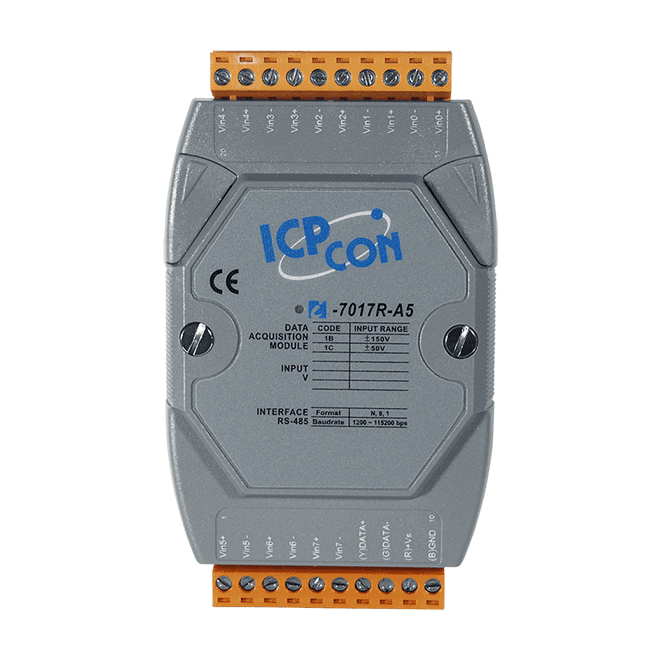

The I-7017R-A5-G CR is a DIN-rail analog input module for engineers who need to measure high-voltage signals over RS-485. It accepts ±50 V or ±150 V inputs across eight differential channels, with 16-bit resolution and an input impedance of 290 kΩ on the voltage ranges.
This gray-cover variant is built for signals that would overload standard low-voltage input modules. Overvoltage and common voltage protection are rated at ±200 VDC, and the module offers ±4 kV ESD contact protection on each terminal. Sampling can be switched between Normal Mode at 10 Hz and Fast Mode at 50 Hz, with accuracy of ±0.1% of FSR and ±0.5% of FSR respectively.
Communication runs through one RS-485 port using the DCON protocol at 1200 ~ 115200 bps, with data format (N, 8, 1). The module is powered from +10 ~ +30 VDC with reverse polarity protection and is rated for operation from -25 ~ +75 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 8 Differential |
| Type | Voltage/Current |
| Range | I-7017R(-G): ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor) I-7017R-A5: ±50 V, ±150 V |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR |
| Sampling Rate | I-7017R(-G): Normal Mode: 10 Hz / Fast Mode: 60 Hz I-7017R-A5: Normal Mode: 10 Hz / Fast Mode: 50 Hz |
| Input Impedance | Voltage: I-7017R(-G): 2 MΩ I-7017R-A5: 290 kΩ |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | I-7017R(-G): 240 Vrms I-7017R-A5: ±200 VDC |
| Individual Channel Configuration | Yes, only for I-7017R(-G) |
| Open Wire Detection | 4 ~ 20 mA, only for I-7017R(-G) |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | I-7017R(-G): 1.3 W I-7017R-A5: 1.6 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
