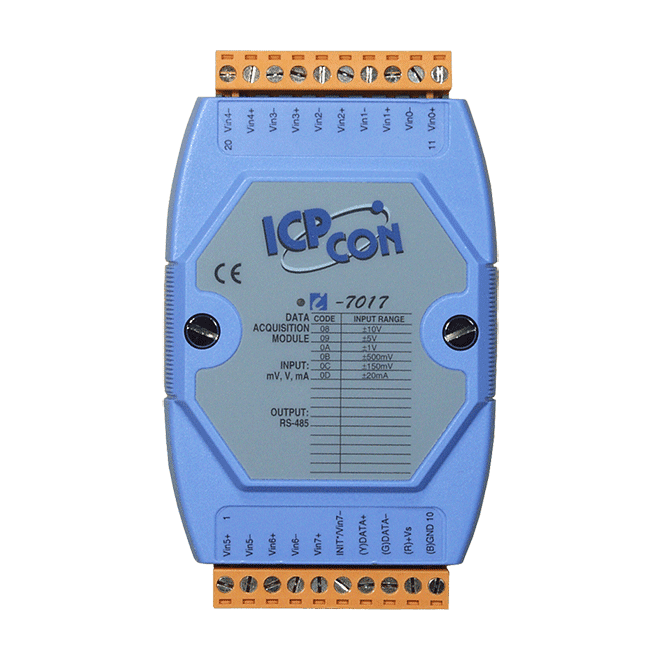

I-7017 8-ch Analog Input Module, DCON RS-485, Voltage and Current
8-channel, 16-bit analog input module for voltage and current signals, with DCON protocol over RS-485 and 3000 VDC intra-module isolation for DIN-rail installations.
- 8 differential inputs, or 6 differential and 2 single-ended, selectable by jumper
- Voltage and current inputs, with all channels set to the same input range
- 16-bit resolution with 10 Hz normal sampling mode
- Open wire detection for 4 ~ 20 mA inputs
- Built-in dual watchdog
- 3000 VDC intra-module isolation and ±120 VDC overvoltage protection
2 382,09 kr per st.
| 1–9 st. | 2 382,09 kr | |
|---|---|---|
| 10–30 st. | 2 304,54 kr | −3 % |
| 31+ st. | 2 260,22 kr | −5 % |
Produktinformation "I-7017 8-ch Analog Input Module, DCON RS-485, Voltage and Current"
The I-7017 is an RS-485 analog input module for engineers who need to acquire voltage or current signals across eight channels. Channels can be configured as eight differential inputs, or as six differential and two single-ended inputs, using a jumper. All channels share the same selected input range, and 4 ~ 20 mA inputs need an optional external 125 Ω resistor.
The module provides 16-bit resolution and a normal sampling mode of 10 Hz. Open wire detection for 4 ~ 20 mA inputs helps identify broken sensor wiring, and a built-in dual watchdog supports reliable operation in unattended systems. Intra-module isolation of 3000 VDC and ±120 VDC overvoltage protection add robustness on the input side.
This blue-cover version communicates over a single RS-485 port using the DCON protocol, with baud rates from 1200 to 115200 bps. It suits building, factory and machine automation, as well as remote maintenance, diagnosis and testing equipment.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 6 Differential and 2 Single-ended, or 8 Differential |
| Type | Voltage Current |
| Range | Voltage: ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR (Only for I-7017F) |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 60 Hz (Only for I-7017F) |
| Input Impedance | 20 MΩ |
| Common Voltage Protection | ±15 VDC |
| Overvoltage Protection | ±120 VDC |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.3 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
