I-25140-ENC IP66 Industrial Enclosure with DIN-Rail, 255 x 181 x 140 mm
IP66 industrial enclosure with built-in DIN-rail, self-drilling mounting points and a -40 ~ +80 °C operating range, for installations in industrial or protected outdoor areas.
- IP66 ingress protection rating
- Overall dimensions 255 mm x 181 mm x 140 mm (W x L x H)
- Operating temperature -40 ~ +80 °C
- Built-in DIN-rail for easy mounting
- Self-drilling mounting points
- Includes 2 x 4PASO-0028 and 1 x 4SASO-0007 cable glands
1 130,11 kr per st.
| 1–9 st. | 1 130,11 kr | |
|---|---|---|
| 10–30 st. | 1 096,87 kr | −3 % |
| 31+ st. | 1 074,71 kr | −5 % |
Produktinformation "I-25140-ENC IP66 Industrial Enclosure with DIN-Rail, 255 x 181 x 140 mm"
The I-25140-ENC is an IP66 industrial enclosure for housing automation modules in industrial installations or protected outdoor areas. Its sturdy housing shields the module from moisture and UV rays.
Engineers will find it practical to install: a built-in DIN-rail and self-drilling mounting points simplify fitting inside a panel or cabinet. The enclosure is rated for an operating temperature of -40 ~ +80 °C.

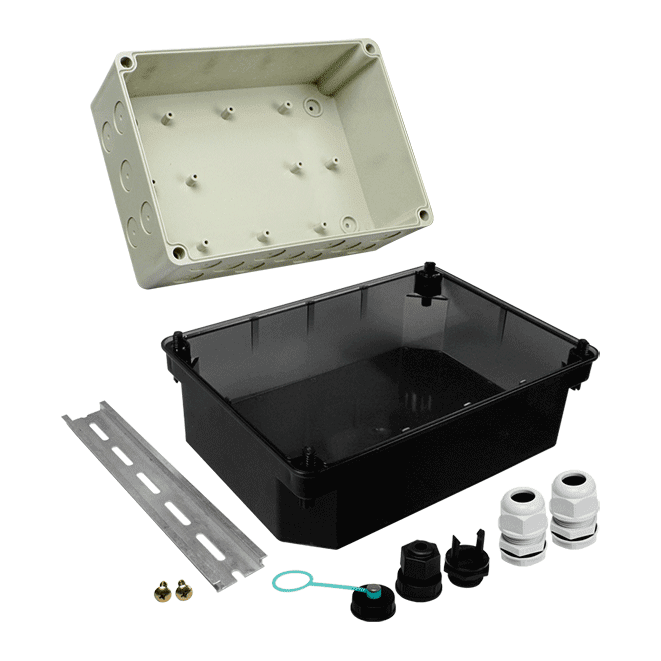

The package includes two cable glands 4PASO-0028 (cable range Φ9~14 mm), one cable gland 4SASO-0007 (cable range Φ7~4 mm), four captive lid screws and a 210 mm DIN-rail. Dimensions are 255 mm x 181 mm x 140 mm (W x L x H).
Applications
- Industrial installations
- Protected outdoor areas
| Product type: | Enclosure |
|---|---|
| Operating temperature: | -40 ~ +80 °C |
| Mounting: | DIN-rail |
| Housing: | IP66 |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 255 mm x 181 mm x 140 mm (W x L x H) |
| Ingress Protection Rating | IP66 |
| Environment | |
| Operating Temperature | -40 ~ +80 °C |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
