HRT-227CS HART to Single Mode Fiber Converter, SC 100Base-FX
Converts HART signals to 100Base-FX single mode fiber, extending HART communication up to 30 km over SC connectors. Supports point-to-point and multi-drop networks.
- Extends HART communication up to 30 km over single mode fiber with SC duplex connectors and 100Base-FX, 1310 nm optics
- Supports HART short and long frames, burst mode, and point-to-point or multi-drop operation with up to 15 slave devices
- Two HART masters permitted; HART ports with the same Group ID can communicate with each other
- Selectable 250 Ω loop resistor set by DIP switch
- Fiber broken line detection and built-in watchdog
- 4 kV ESD protection and UL1577 isolation on the HART port
4 697,71 kr per st.
| 1–9 st. | 4 697,71 kr | |
|---|---|---|
| 10–30 st. | 4 564,75 kr | −3 % |
| 31+ st. | 4 465,04 kr | −5 % |
Produktinformation "HRT-227CS HART to Single Mode Fiber Converter, SC 100Base-FX"

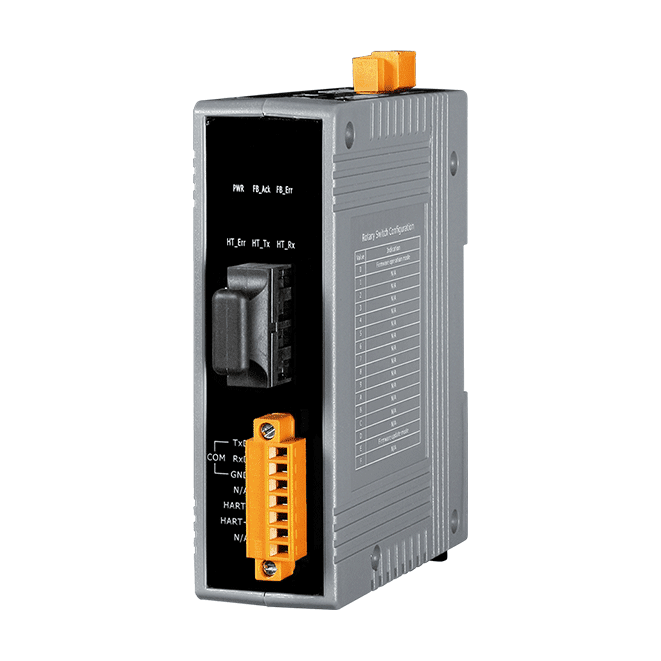

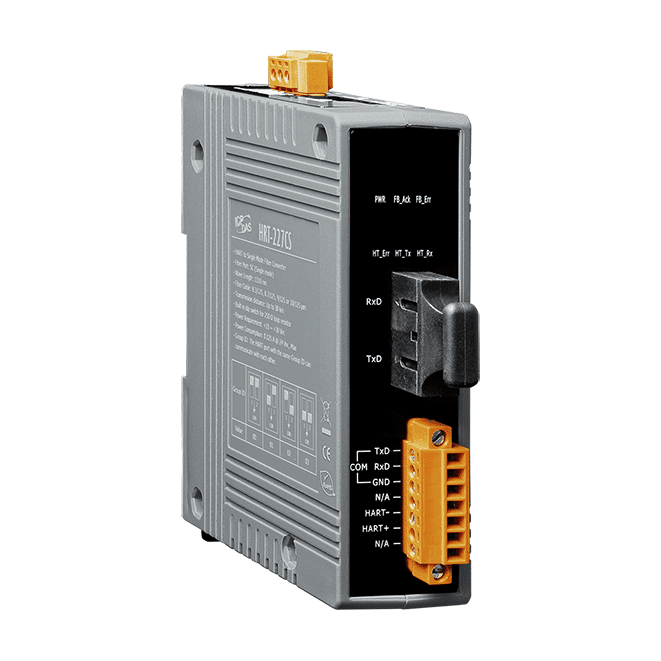

The HRT-227CS CR converts a HART loop into a single mode fiber link, so HART field devices can be monitored over distances that copper cabling cannot practically cover. Its 1310 nm SC duplex optical port reaches up to 30 km, and the unit suits engineers who need to bring remote transmitters onto a central HART host without losing the digital data.

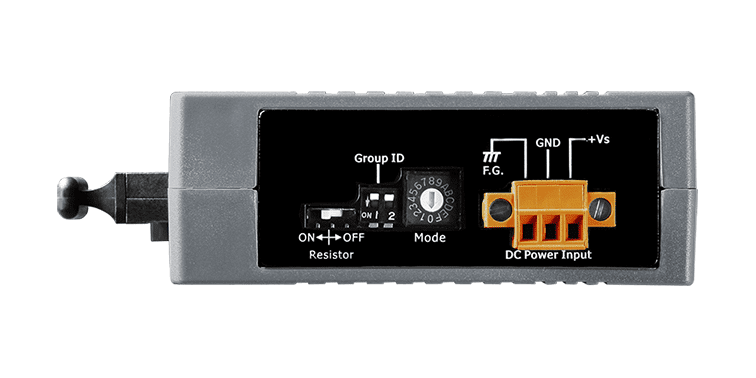

The converter handles both HART short and long frames and supports burst mode. It can run in point-to-point or multi-drop configuration with up to 15 HART slave devices, and it allows two HART masters on the network. A selectable 250 Ω loop resistor is set by DIP switch, so the unit can be fitted without an external resistor where one is required.
Configuration is carried out with the free HC_Tool utility over an RS-232 configuration port, and firmware can be updated through the same COM port. Fiber break detection and a built-in watchdog help with fault diagnosis, while 4 kV ESD protection and UL1577 isolation on the HART port support reliable installation. The unit mounts on a DIN rail and is rated for an operating temperature of -25 ~ +75 °C.
Applications
- Current measuring
- Petrochemical industry
- Environment monitoring
- Tunnel monitoring
- Monitor systems
- Building monitoring
| Product type: | Converter |
|---|---|
| Interface: | 100Base-FX SC single mode |
| Protocol: | HART |
| Ports: | 1 |
| Isolation: | UL1577 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer

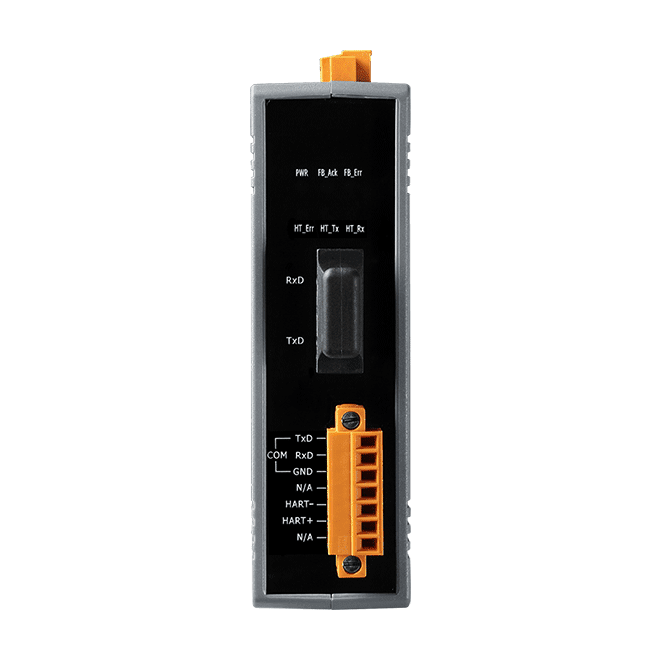

| LED Indicators | |
|---|---|
| Status | PWR, FB_Ack, FB_Err, HT_Err, HT_Tx and HT_Rx |
| COM Ports | |
| Ports | RS-232 (TXD / RXD / GND) for configuration (1200, O, 8 ,1) |
| Fiber | |
| Ports | SC Duplex type ; Single mode ; 100 Base-FX |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 |
| Wavelength | 1310 nm |
| TX Output | -15 dBm Min. -8 dBm Max. |
| RX Sensitivity | -34 dBm Max. |
| RX Overload | -5 dBm Max. |
| Budget | 19 dBm |
| HART | |
| Ports | 1 |
| Data | Only Digital Data |
| Loop Resistor | Selectable 250 Ω loop resistor |
| Isolation | UL1577 Spec. |
| Protocol | 2-pin screwed terminal block (HART+, HART-) |
| Power | |
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | 3W |
| Mechanical | |
| Dimensions (mm) | 33.0 x 126 x 101 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C (-13 to 167ºF) |
| Storage Temperature | -30 ~ +80 °C (-22 to 176ºF) |
| Humidity | 10% ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
