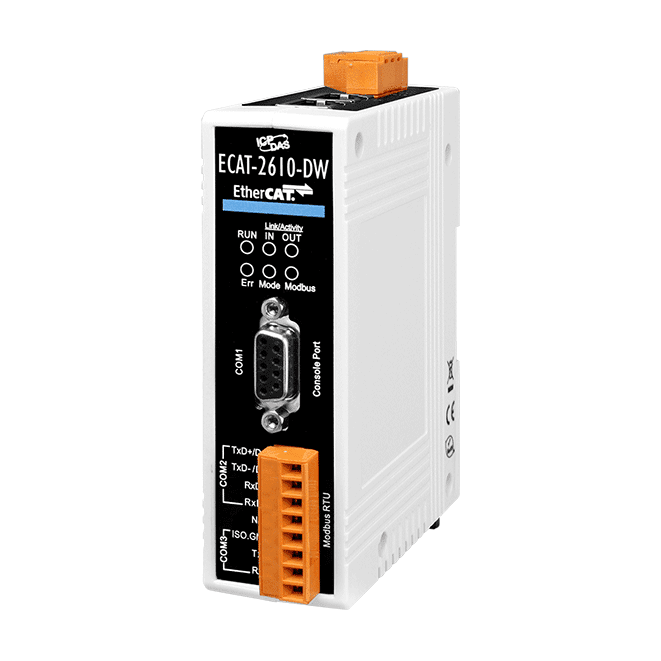

ECAT-2610-DW EtherCAT SubDevice to Modbus RTU and Power Meter Gateway
EtherCAT SubDevice gateway that brings a serial Modbus RTU device or PM-3033/3133/3114/3112 power meters into an EtherCAT control system via an RS-232/422/485 port.
- Supports a maximum of 128 input and output data
- Connects up to 6 PM-3033/3133 power meters

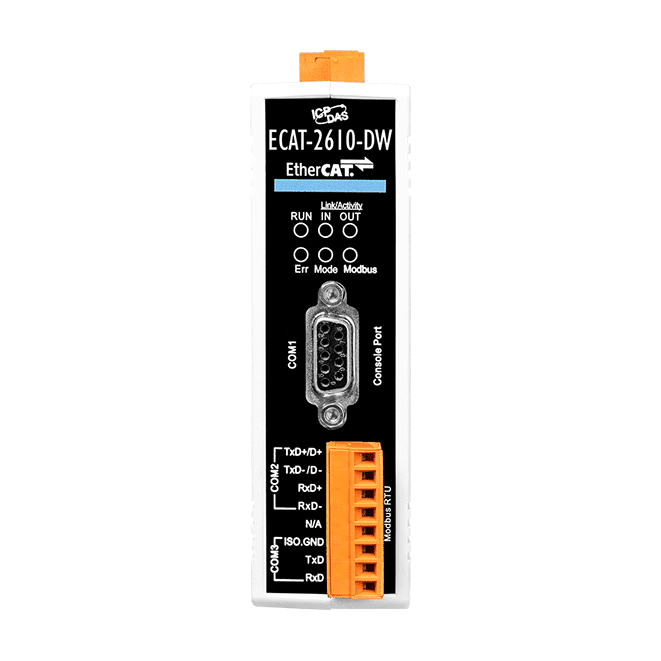

- Two RJ-45 EtherCAT bus ports and one RS-232/422/485 serial port
- Maximum baud rate of 115200 bps
- 10 ms cycle time
- Maximum station distance of 100 m (100BASE-TX) with Min. CAT 5e cable
3 678,39 kr per st.
| 1–9 st. | 3 678,39 kr | |
|---|---|---|
| 10–30 st. | 3 567,60 kr | −3 % |
| 31+ st. | 3 501,12 kr | −5 % |
Produktinformation "ECAT-2610-DW EtherCAT SubDevice to Modbus RTU and Power Meter Gateway"
ECAT-2610-DW is a gateway that converts EtherCAT to Modbus RTU, so a serial device on its RS-232/422/485 port can be integrated into an EtherCAT network. It also integrates PM-3033/3133/3114/3112 power meter SubDevices, with the Main Device reaching their RxPDO and TxPDO data through a configuration file supplied by ICP DAS.
The unit suits system integrators who want to retro-fit older automation equipment into modern EtherCAT structures. Several power meters can be connected at once, supporting more diversified energy management programs. The source notes a simple installation and configuration process.

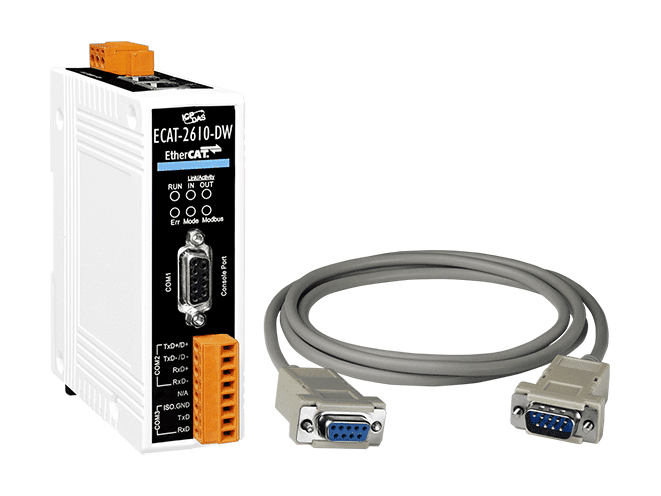

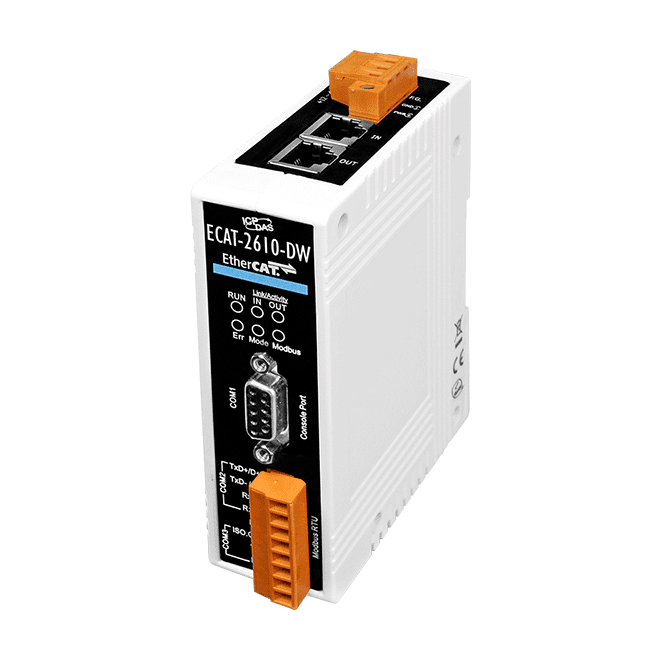

The gateway is supplied as the CR ordering code with a CA-0915 DB9 Male to DB9 Female cable, 1.5 M. It is certified to CE, UKCA, FCC, RoHS and WEEE and mounts on a DIN-rail in a plastic housing.
Applications
- Retro-fitting older automation devices into EtherCAT control systems
- Energy management and power monitoring with multiple power meters
- Integrating Modbus RTU serial devices into EtherCAT networks
| Product type: | Gateway |
|---|---|
| Interface: | RS-232/422/485 |
| Protocol: | EtherCAT, Modbus RTU |
| Ports: | 2 x RJ-45, 1 x RS-232/422/485 |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/422/485 |
| Protocol | Modbus RTU |
| EtherCAT | |
| Ports | 2 x RJ-45 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 10 ms |
| Distributed Clocks | N/A |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 99 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
