ECAT-2517 8-port EtherCAT Junction SubDevice Module
8-port EtherCAT junction SubDevice for branch and star wiring of EtherCAT networks, with up to 100 m between stations on 100BASE-TX and DIN-rail mounting.

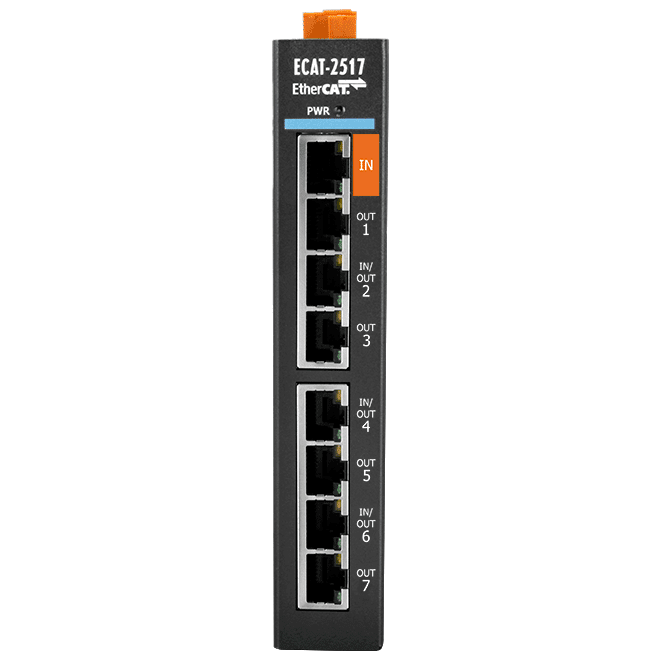

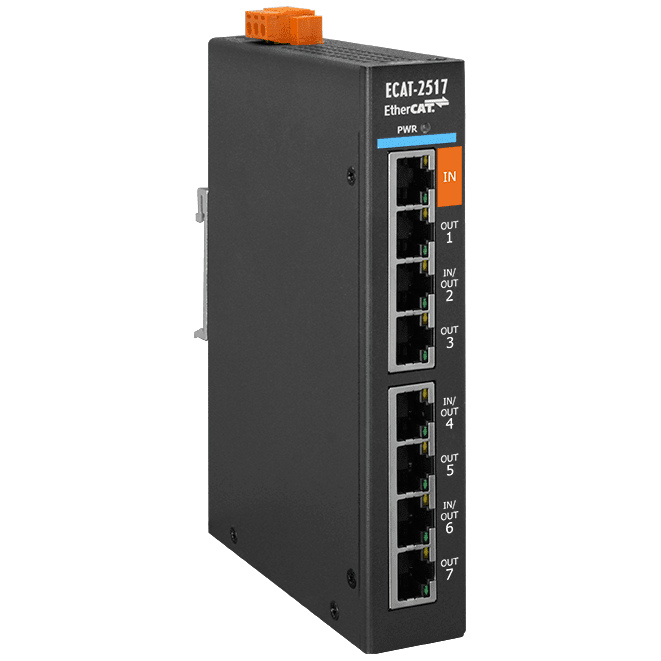

- 8 x RJ-45 ports (1 IN, 7 OUT) for daisy-chain and star connection
- Up to 100 m between stations over 100BASE-TX
- Verified with the EtherCAT conformance test tool
- 4 KV contact ESD protection on each port

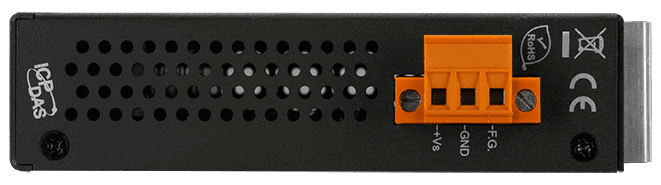

- Reverse polarity protection on a +10 ~ +30 VDC input

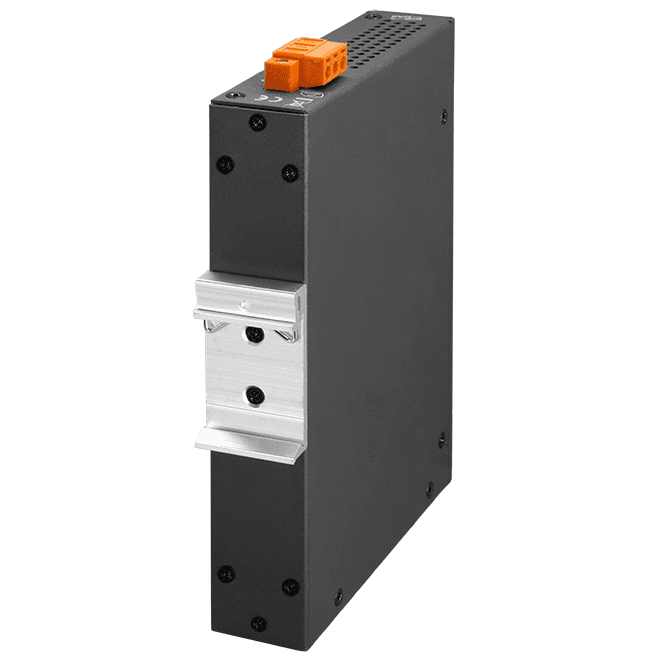

- Metal casing for DIN-rail mounting, 28 x 154 x 110 mm
4 309,93 kr per st.
| 1–9 st. | 4 309,93 kr | |
|---|---|---|
| 10–30 st. | 4 176,97 kr | −3 % |
| 31+ st. | 4 088,34 kr | −5 % |
Produktinformation "ECAT-2517 8-port EtherCAT Junction SubDevice Module"
ECAT-2517 CR is an 8-port EtherCAT junction SubDevice that lets engineers move away from a single daisy-chain run. Its ports (one IN and seven OUT) allow the network to be split into branches or star-style segments, which simplifies cabling in machines and panels where a long serial chain is awkward to route.
Because each branch is wired as a separate section, a failed SubDevice or a disconnected cable only affects the segment it belongs to. Devices in the other sections keep communicating with the Main Device controller, so faults can be isolated and debugging carried out section by section rather than halting the whole network.

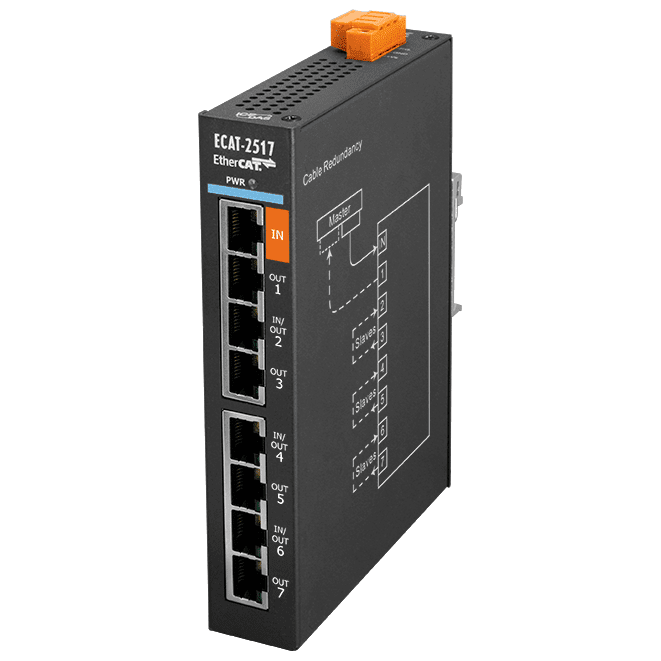

The module supports a cable redundancy layout in which the network forms a ring, so communication can continue through the other side if one cable path is lost. Each port carries 4 kV contact ESD protection, and the unit is housed in a metal casing for DIN-rail installation with a +10 ~ +30 VDC supply input.
Applications
- Converting daisy-chain wiring into branch or star topology
- Isolating network faults to individual sections to speed up debugging
- Ring-based cable redundancy for control systems
- Distributed EtherCAT wiring in machine and panel builds
| Product type: | EtherCAT junction |
|---|---|
| Interface: | RJ-45 |
| Protocol: | EtherCAT |
| Ports: | 8 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| EtherCAT | |
|---|---|
| Ports | 8 x RJ-45 (1 IN; 7-OUT) |
| No. of Nodes | 6 |
| Distance Between Stations | Max. 100 m (100BASE-TX) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.23 A @ 24 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 28 x 154 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ + 75 °C |
| Storage Temperature | -30 ~ + 80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
