ECAT-2045K-32 EtherCAT I/O Module, 32-ch Isolated Digital Output (Sink, NPN)
EtherCAT SubDevice with 32 isolated sink (NPN) digital outputs that can hold their last state through EtherCAT state machine changes. Supports daisy-chain wiring.
- 32 isolated sink (NPN) digital outputs, 3.5 to 50 VDC load voltage, 500 mA per channel
- Keep output values after EtherCAT state machine change, or clear all outputs, as configured
- Two RJ-45 ports with daisy-chain support; up to 100 m between stations (100BASE-TX)
- Cycle time of 1 ms and distributed clocks supported
- 3750 Vrms isolation and 4 kV contact ESD protection on each channel
- LED indicators for output status and removable terminal block connector
2 459,65 kr per st.
| 1–9 st. | 2 459,65 kr | |
|---|---|---|
| 10–30 st. | 2 382,09 kr | −3 % |
| 31+ st. | 2 326,70 kr | −5 % |
Produktinformation "ECAT-2045K-32 EtherCAT I/O Module, 32-ch Isolated Digital Output (Sink, NPN)"

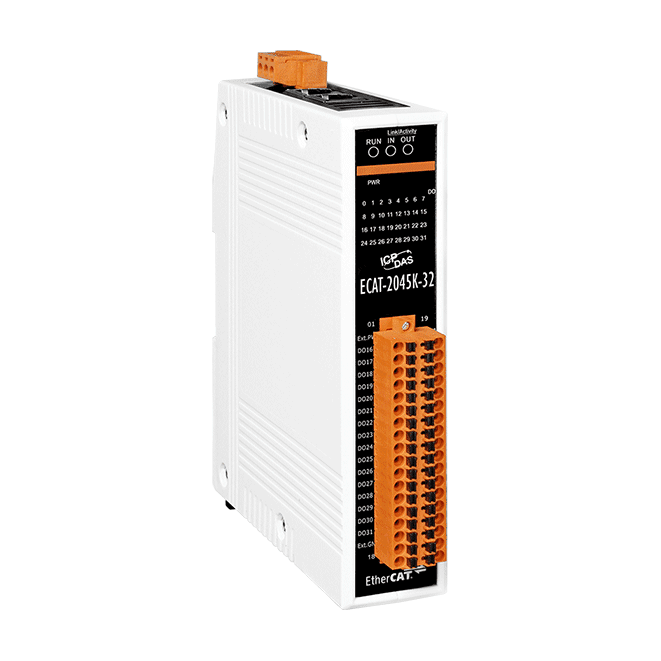

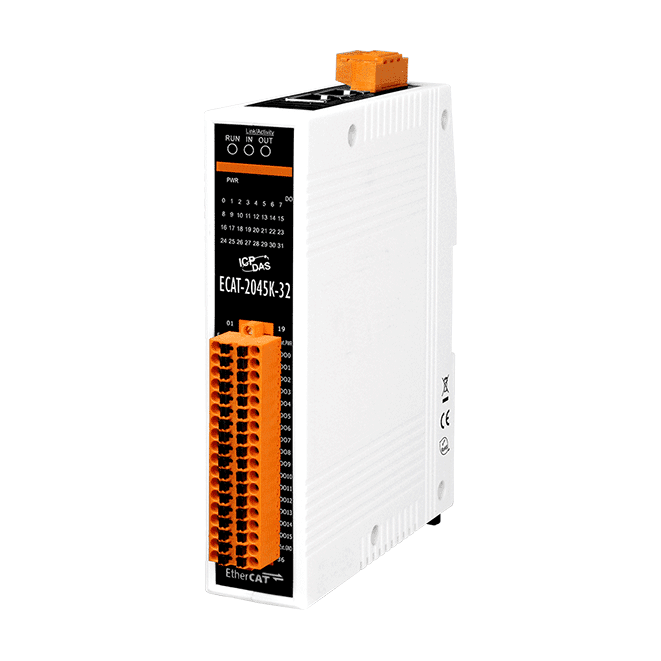

ECAT-2045K-32 is an EtherCAT SubDevice that drives 32 isolated, sink-type (NPN) open-collector digital outputs from a single DIN-rail module. Its two RJ-45 ports allow daisy-chain wiring, so devices can be installed along a line or in star and ring topologies without a separate switch between stations.
Each output switches a load from +3.5 VDC to +50 VDC at up to 500 mA per channel, with 3750 Vrms isolation between the field side and the bus. The 'keep output values' behaviour lets the outputs hold their last state when the EtherCAT state machine changes, which suits machines where a sudden reset of actuators is undesirable.

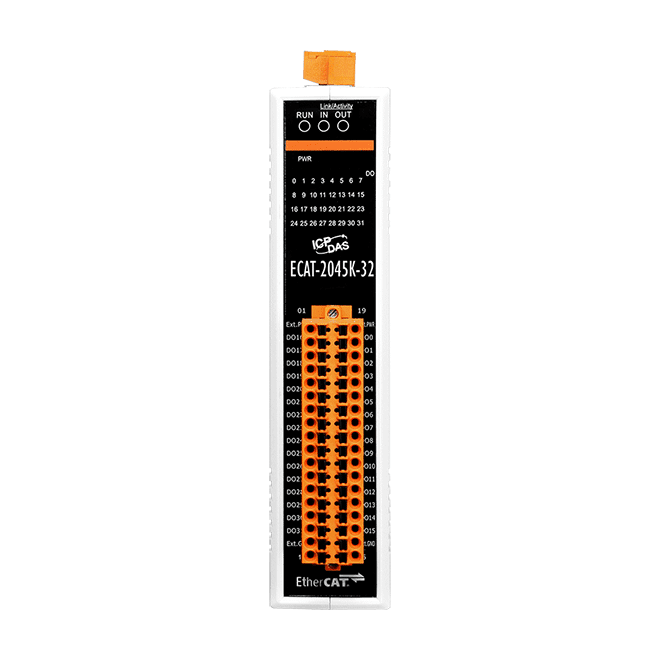

Output status is visible from the LED indicators on the front panel and is also available through process data. The module has been verified with the EtherCAT conformance test tool, and it is rated for an operating range of -25 ~ +75 °C.
Applications
- Semiconductor Tools
- Metal Forming
- Packaging
- Injection Molding
- Assembly Systems
- Printing Machines
- Robotics
| Product type: | Digital output module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Digital outputs: | 32 |
| Ports: | 2 x RJ-45 |
| Isolation: | 3750 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector (Sink , NPN) |
| Load Voltage | +3.5 VDC ~ +50 VDC |
| Load Current | 500 mA/Channel |
| Isolation | 3750 Vrms |
| EtherCAT | |
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
