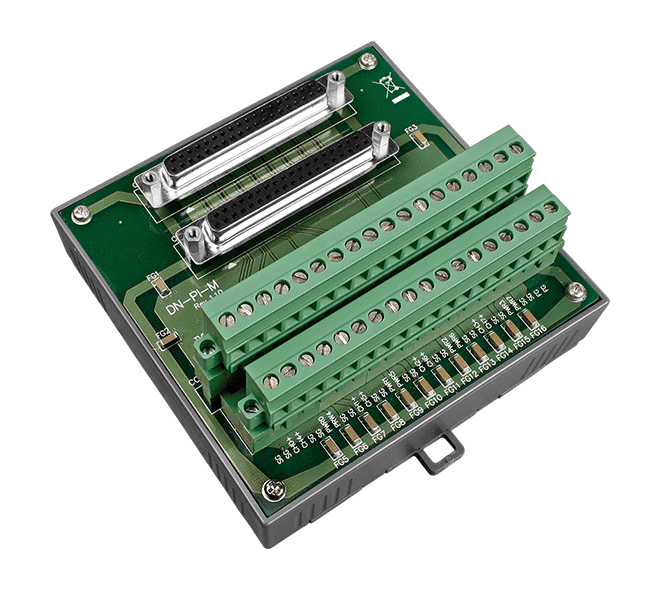

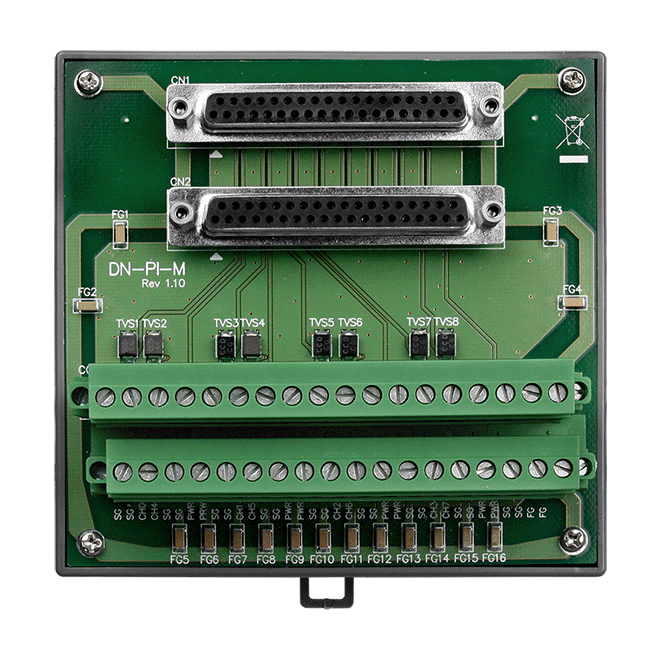

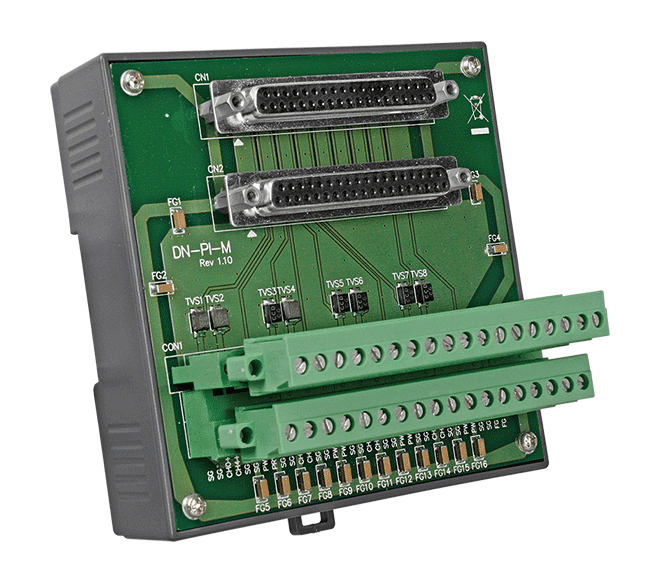

DN-PI-M Termination Board for Pulse Input Modules, 8 Channels
Compact 8-channel termination board for pulse input modules, suited to small cabinet installations with DIN-rail or wall mounting.
- 8 channels for pulse input module termination
- Compact 112 x 117 x 29 mm footprint for small cabinets
- DIN-rail or wall mounting
- Operating temperature -25 ~ 75 °C
- Humidity 5 ~ 95% RH, non-condensing
- RoHS compliant with CE, UKCA, NCC and WEEE certifications
1 562,21 kr per st.
| 1–9 st. | 1 562,21 kr | |
|---|---|---|
| 10–30 st. | 1 517,89 kr | −3 % |
| 31+ st. | 1 484,65 kr | −5 % |
Produktinformation "DN-PI-M Termination Board for Pulse Input Modules, 8 Channels"
The DN-PI-M CR is a termination board for pulse input modules, providing a connection point for field wiring to the module. It offers 8 channels in a compact footprint of 112 x 117 x 29 mm.
Its small size makes it practical where cabinet space is limited, allowing it to fit into compact control enclosures. It can be mounted on a DIN rail or on a wall.
The board is rated for an operating temperature of -25 ~ 75 °C and a humidity range of 5 ~ 95% RH, non-condensing. It carries CE, UKCA, NCC, RoHS and WEEE certifications.
Applications
- Pulse input wiring in small control cabinets
- Pulse input signal termination for space-constrained installations
| Product type: | Termination board |
|---|---|
| Operating temperature: | -25 ~ 75 °C |
| Mounting: | DIN-rail & wall |
Specifikationer
| Analog Input | |
|---|---|
| Channels | 8 |
| Mechanical | |
| Dimensions (mm) | 112 x 117 x 29 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
