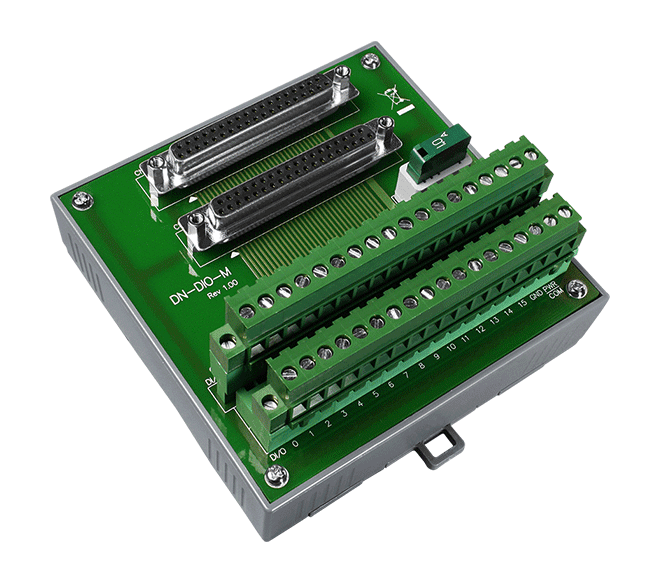

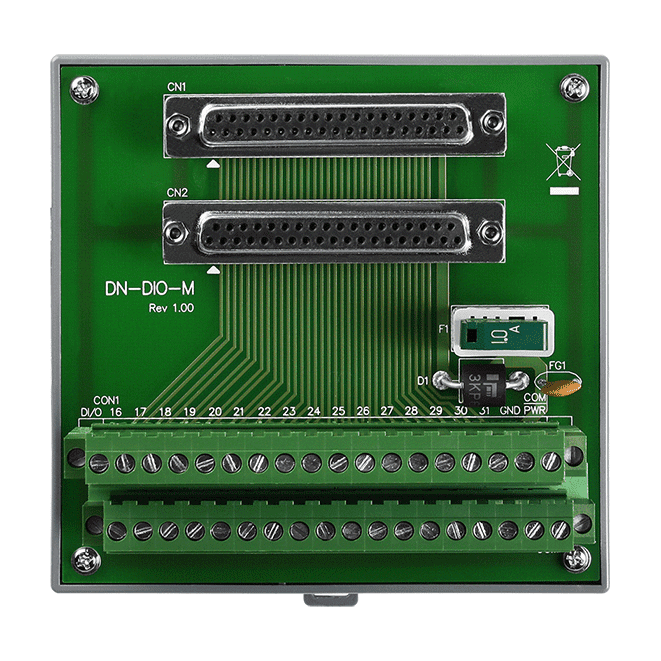

DN-DIO-M Universal Termination Board for Digital I/O, 32-ch Digital Output
Compact termination board for digital input and output wiring, mountable on DIN-rail or wall. Suited to small cabinets where space is limited. Ordering code DN-DIO-M CR.
- Universal termination board for digital I/O signals
- 32 digital output channels
- Compact 112 x 117 x 29 mm footprint for small cabinets
- DIN-rail & wall mounting
- Operating temperature -25 ~ +75 °C
- Humidity 5 ~ 95% RH, non-condensing
1 628,69 kr per st.
| 1–9 st. | 1 628,69 kr | |
|---|---|---|
| 10–30 st. | 1 573,29 kr | −3 % |
| 31+ st. | 1 540,05 kr | −5 % |
Produktinformation "DN-DIO-M Universal Termination Board for Digital I/O, 32-ch Digital Output"
The DN-DIO-M CR is a universal termination board for digital I/O signals, providing a convenient point to terminate field wiring for digital input and output modules.
Its compact footprint of 112 x 117 x 29 mm makes it practical where cabinet space is tight. It can be fitted to a DIN-rail or mounted directly on a wall, and it is rated for an operating temperature of -25 ~ +75 °C and 5 ~ 95% RH non-condensing humidity.
The board carries CE, UKCA, FCC, RoHS and WEEE certifications and provides 32 digital output channels.
Applications
- Termination of digital I/O wiring in small control cabinets
- Space-constrained industrial automation panels
| Product type: | Termination board |
|---|---|
| Digital outputs: | 32 |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail & wall |
Specifikationer
| Digital Output | |
|---|---|
| Channels | 32 |
| Mechanical | |
| Dimensions (mm) | 112 x 117 x 29 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
