DN-84100U 4-Axis Stepper/Servo Terminal Board for PISO-PS410/PS810
Snap-on wiring terminal board linking PISO-PS410 or PISO-PS810 motion controllers to stepper and servo drivers, with 4-axis I/O signals and status LEDs.
- Connects PISO-PS410 or PISO-PS810 motion controllers to a range of servo and stepper drivers
- Supports pulse command type step motors and servo motors
- Universal snap-on wiring terminals for 4-axis I/O signals
- Power LED plus status LEDs for home and limit switches
- FRnet terminal for high-speed serial I/O expansion where the controller supports FRnet
- Powered from 20 ~ 26 VDC, 0.5 A; 12 W consumption at 24 VDC
2 193,74 kr per st.
| 1–9 st. | 2 193,74 kr | |
|---|---|---|
| 10–30 st. | 2 127,26 kr | −3 % |
| 31+ st. | 2 082,95 kr | −5 % |
Produktinformation "DN-84100U 4-Axis Stepper/Servo Terminal Board for PISO-PS410/PS810"

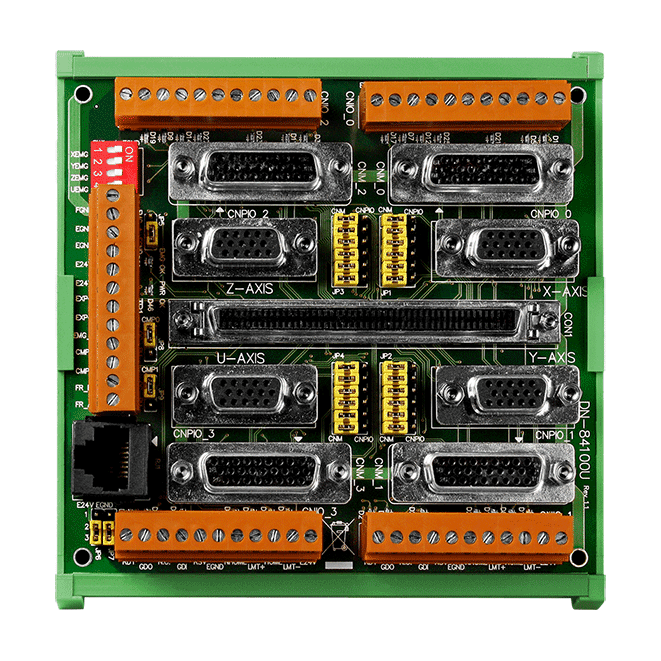

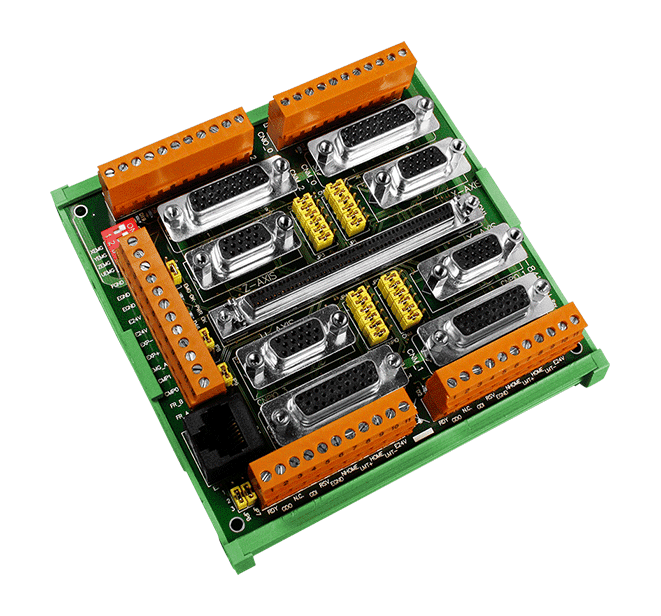

The DN-84100U CR is a terminal board that sits between a PISO-PS410 or PISO-PS810 motion controller and the servo or stepper drivers it commands. It gives engineers a single wiring point for the 4-axis I/O signals, so drive connections can be changed without rewiring the controller itself.
The board supports pulse command type step motors and servo motors. A power LED and status LEDs for home and limit switches make it easier to check the state of each axis during commissioning and fault finding.
- Power input: 20 ~ 26 VDC, 0.5 A
- Consumption: 12 W at 24 VDC
- Board dimensions: 118 mm X 121 mm
- Operating temperature: -20 ~ +75 °C; storage: -30 ~ +85 °C
Where the connected controller supports FRnet, the board's FRnet terminal provides high-speed serial I/O expansion. The DN-84100U CR is CE, UKCA, RoHS and WEEE certified.
Applications
- Connecting PISO-PS410 or PISO-PS810 motion controllers to servo drivers
- Stepper and servo motor motion control with pulse command drives
- Multi-axis wiring and I/O breakout for 4-axis motion systems
| Product type: | Motion control terminal board |
|---|---|
| Interface: | FRnet |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Specifikationer
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 118 mm X 121 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
