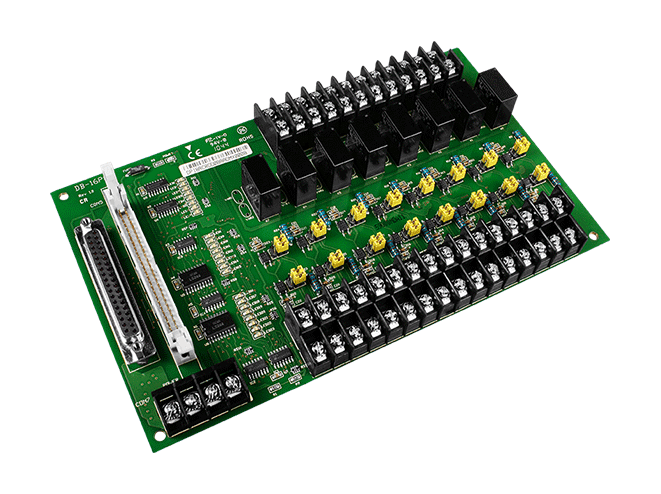

DB-16P8R/DIN Daughter Board, 16-ch Isolated DI & 8-ch Relay, DIN-rail
DIN-rail mounted daughter board with 16 optically isolated digital inputs and 8 Form C relay outputs for OPTO-22 compatible DIO cards. Includes CA-5015 50-pin flat cable.
- 16 optically isolated digital input channels, dry or wet contact selectable by jumper
- 8 Form C relay outputs rated 250 VAC/5A and 30 VDC/5A
- Connects directly to DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U and PIO-D48U OPTO-22 compatible boards
- Input response speed of 20us
- Relay operate time 10 ms, release time 5 ms
- DIN-rail mounting variant
1 772,72 kr per st.
| 1–9 st. | 1 772,72 kr | |
|---|---|---|
| 10–30 st. | 1 717,32 kr | −3 % |
| 31+ st. | 1 684,08 kr | −5 % |
Produktinformation "DB-16P8R/DIN Daughter Board, 16-ch Isolated DI & 8-ch Relay, DIN-rail"
The DB-16P8R/DIN CR is a DAQ daughter board that adds 16 optically isolated digital inputs and 8 relay outputs to compatible OPTO-22 style digital I/O boards. It suits engineers who need field contacts electrically separated from the host board, or who need to switch loads through Form C relays.
Each input can be set by jumper for dry or wet contact operation. The relays are rated 250 VAC/5A and 30 VDC/5A, with an operate time of 10 ms and a release time of 5 ms. The DIN-rail version is supplied for mounting on a standard DIN rail.
A 1.5 m, 50-pin flat cable (CA-5015) is included. The board is specified for an operating temperature of 0 ~ 60°C.
Applications
- Isolated digital input sensing
- Testing automation
| Product type: | Daughter board |
|---|---|
| Interface: | 50-pin flat cable |
| Digital inputs: | 16 |
| Relay outputs: | 8 |
| Isolation: | Optical |
| Operating temperature: | 0 ~ 60°C |
| Mounting: | DIN-rail |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Dry+Wet Contact |
| ON Voltage Level | Dry: Close to GND(TTL) Wet: 2.8 V ~ 24 V(Max) |
| OFF Voltage Level | Dry: Open (TTL) Wet: 1 V (Max) |
| Response Speed | 20us |
| Input Impedance | 1.2K Ohm |
| Relay Output | |
| Channels | 8 X FORM C |
| Type | 24 V Power Relay |
| Contact Rating | 250 VAC/5A , 30 VDC/5A |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 1 x 10^5 |
| Mechanical Endurance | 1 x 10^7 |
| Mechanical | |
| Dimensions (mm) | 213 mm x 132 mm |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
