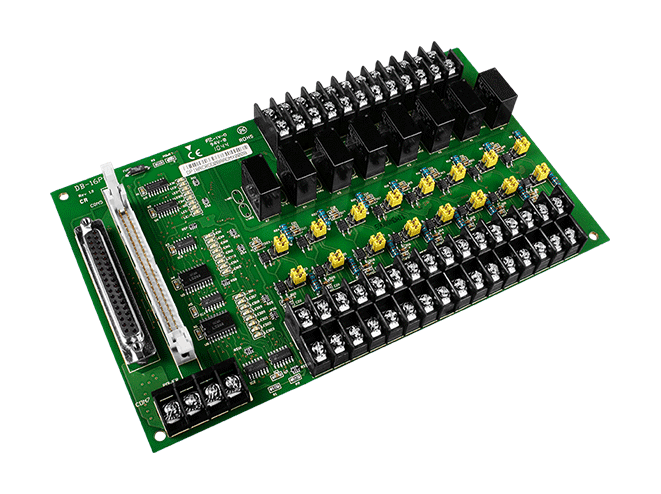

DB-16P8R/D/DIN Daughter Board, 16-ch Isolated Input & 8-ch Relay, DIN-Rail
DIN-rail version of the DB-16P8R daughter board, adding 16 optically isolated digital inputs and 8 Form C relay outputs to OPTO-22 compatible digital I/O cards.
- 16 optically isolated digital input channels with jumper-selectable dry or wet contact operation
- Wet contact input range: high 5~24Vdc, low 0~1.8Vdc
- 8 Form C relay outputs rated 250 VAC/5A and 30 VDC/5A
- Connects directly to DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U and PIO-D48U OPTO-22 compatible I/O boards
- DIN-rail mounting for panel installation
- Relay operate time 10 ms, release time 5 ms; input response speed 20us
1 772,72 kr per st.
| 1–9 st. | 1 772,72 kr | |
|---|---|---|
| 10–30 st. | 1 717,32 kr | −3 % |
| 31+ st. | 1 684,08 kr | −5 % |
Produktinformation "DB-16P8R/D/DIN Daughter Board, 16-ch Isolated Input & 8-ch Relay, DIN-Rail"
The DB-16P8R/D/DIN CR is a DIN-rail mounted daughter board that extends compatible OPTO-22 style digital I/O cards with 16 optically isolated digital inputs and 8 Form C relay outputs. It connects directly to the DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U and PIO-D48U range, so engineers can add isolated sensing and switching without custom wiring.
Each input can be set by jumper to dry or wet contact operation. In wet contact mode the input range is high 5~24Vdc and low 0~1.8Vdc, with a response speed of 20us. The relay outputs are rated 250 VAC/5A and 30 VDC/5A, with an operate time of 10 ms and a release time of 5 ms.
This variant ships with a CA-3710 cable (DB37 male to male, 45º, 1 M). The board is rated for an operating temperature of 0 ~ 60°C and a storage temperature of -20 ~ 70°C.
Applications
- Isolated digital input sensing
- Testing automation
| Product type: | Daughter board |
|---|---|
| Digital inputs: | 16 |
| Relay outputs: | 8 |
| Isolation: | Optically isolated |
| Operating temperature: | 0 ~ 60°C |
| Mounting: | DIN-rail |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Dry+Wet Contact |
| ON Voltage Level | Dry: Close to GND(TTL) Wet: 2.8 V ~ 24 V(Max) |
| OFF Voltage Level | Dry: Open (TTL) Wet: 1 V (Max) |
| Response Speed | 20us |
| Input Impedance | 1.2K Ohm |
| Relay Output | |
| Channels | 8 X FORM C |
| Type | 24 V Power Relay |
| Contact Rating | 250 VAC/5A , 30 VDC/5A |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 1 x 10^5 |
| Mechanical Endurance | 1 x 10^7 |
| Mechanical | |
| Dimensions (mm) | 213 mm x 132 mm |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
