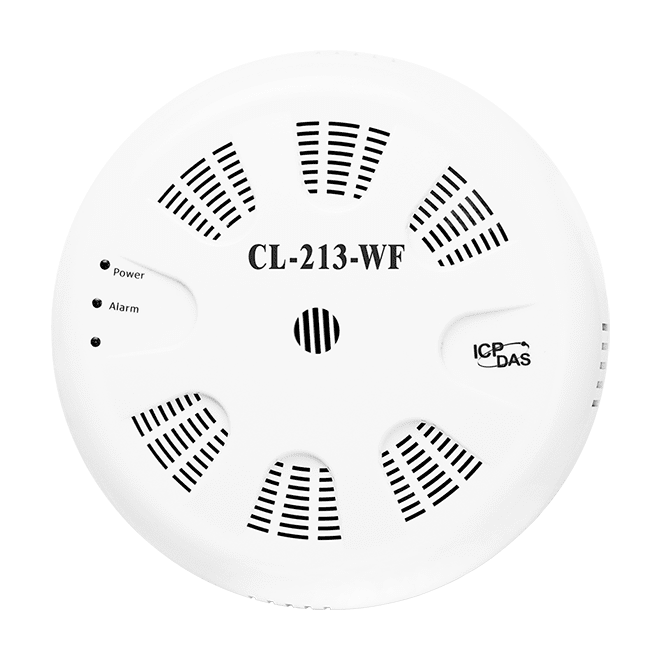

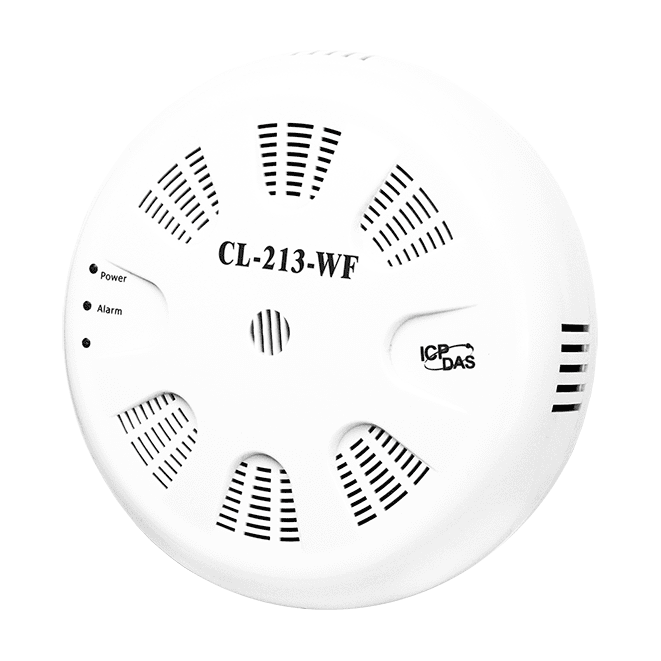

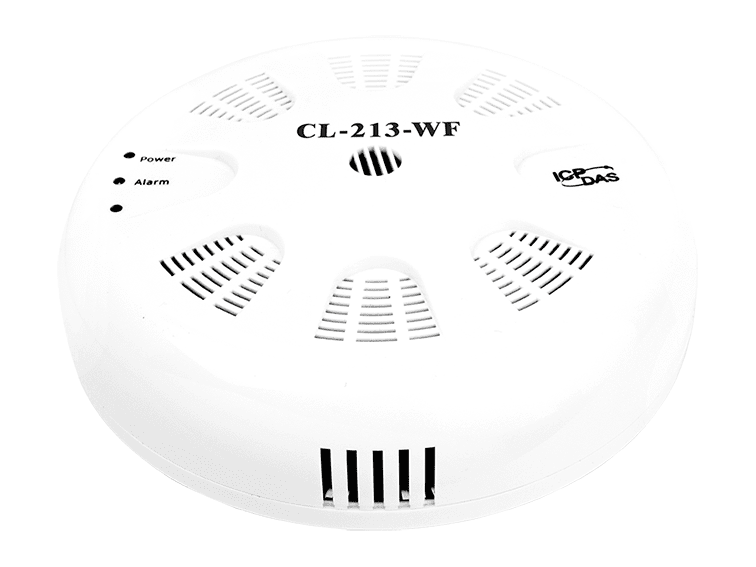

CL-213-WF IAQ Data Logger Module with PM2.5, CO, CO2 and Wi-Fi
Indoor air quality data logger module measuring PM2.5, CO, CO2, temperature, humidity and dew point, with RS-485, Ethernet PoE and Wi-Fi connectivity for monitoring and control systems.
- Measures PM2.5, CO, CO2, temperature, humidity and dew point in one module
- NDIR CO2 sensor and electrochemical CO sensor with logging up to 450,000 time-stamped records
- RS-485 and Ethernet (PoE) interfaces plus Wi-Fi (IEEE 802.11b/g/n) with Infrastructure and Limited AP modes
- DCON, Modbus RTU, Modbus TCP and MQTT (Ethernet) protocol support
- Redundant power inputs: PoE (IEEE 802.3af, Class 1) and +12 ~ +48 VDC
- Relay output for alarm or IAQ device control
6 703,10 kr per st.
| 1–9 st. | 6 703,10 kr | |
|---|---|---|
| 10–30 st. | 6 503,67 kr | −3 % |
| 31+ st. | 6 370,71 kr | −5 % |
Produktinformation "CL-213-WF IAQ Data Logger Module with PM2.5, CO, CO2 and Wi-Fi"
CL-213-WF is an indoor air quality (IAQ) data logger module that records PM2.5, CO, CO2, temperature, humidity and dew point. A non-dispersive infrared (NDIR) sensor handles the CO2 measurement, and onboard storage holds up to 450,000 time-stamped records for later analysis.
The module offers RS-485, Ethernet and Wi-Fi interfaces, so it can be integrated into existing HMI or SCADA systems. It supports DCON and Modbus RTU over RS-485, Modbus TCP over Ethernet and Wi-Fi, and MQTT over Ethernet. Real-time data can be viewed from any device on the same local network using the supplied Windows software or the iOS and Android apps.
Power can be supplied by PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, giving redundant power inputs. A relay output provides alarm or IAQ device control, and the module mounts on the ceiling or wall.
Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations and pharmacies
- Building and energy management
- Warehouse management
- Museums, archives and galleries
- Indoor or underground parking lot air quality monitoring
| Product type: | Data logger module |
|---|---|
| Interface: | Ethernet, RS-485, Wi-Fi |
| Protocol: | DCON, Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | 1 |
| Ports: | 2 |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | 0 ~ 50°C |
| Mounting: | Ceiling or wall |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (2.3 seconds), Communication (Programmable) |
| System | |
| Security | IP filter (whitelist) and Password (web) |
| Alarm | CO/CO2 |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Temperature Measurement | |
| Range | -10 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Humidity Measurement | |
| Range | 0 ~ 100% RH, Non-condensing |
| Resolution | 0.1% RH, Non-condensing |
| Accuracy | ±5% RH, Non-condensing |
| Dew Point | |
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| CO Measurement | |
| Range | 0 to 1000 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% of measured value |
| Response Time | 30 seconds |
| Warm-up Time | 5 minutes |
| CO2 Measurement | |
| Range | 0 to 9999 ppm (NDIR) |
| Resolution | 1 ppm |
| Accuracy | ±40 ppm ±3% of measured value |
| Response Time | 120 seconds |
| Warm-up Time | 5 minutes |
| PM2.5 Measurement | |
| Range | 0 ~ 400 μg/m3 |
| Resolution | 1μg/m3 |
| Response Time | <= 1 min. |
| Wi-Fi | |
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard Supported | IEEE 802.11 b/g/n |
| RX Sensitivity | -95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM |
| Output Power | 18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM |
| Mode | Infrastructure & Limited AP |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 1 dBi (PCB Antenna) |
| Relay Output | |
| Channels | 1 x Form A, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 1 x Ethernet |
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | DCON and Modbus/RTU (RS-485) Modbus TCP (Ethernet, Wi-Fi) MQTT (Ethernet) |
| Power | |
| Consumption | Non-PoE: 2.9 W (Max.) PoE: 3.0 W (Max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | Ø 150 x 53 (Ø x H) |
| Installation | Ceiling Mounting/Wall Mounting |
| Ingress Protection Rating | IP20 |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
