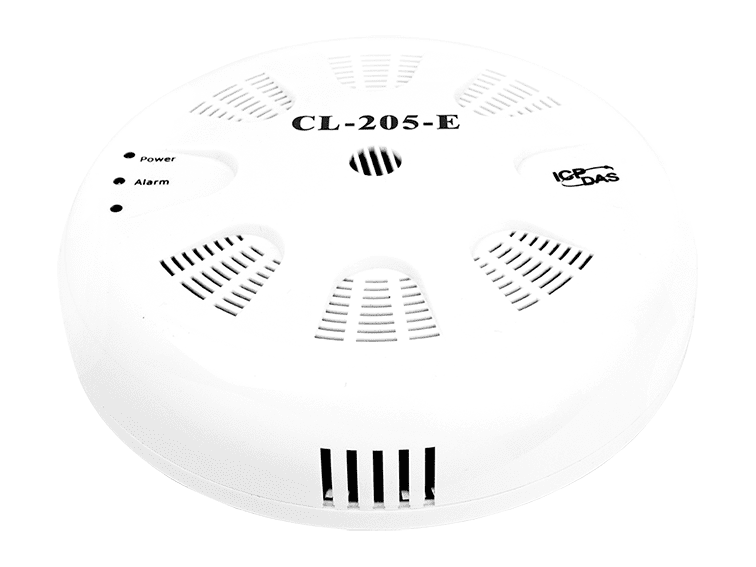

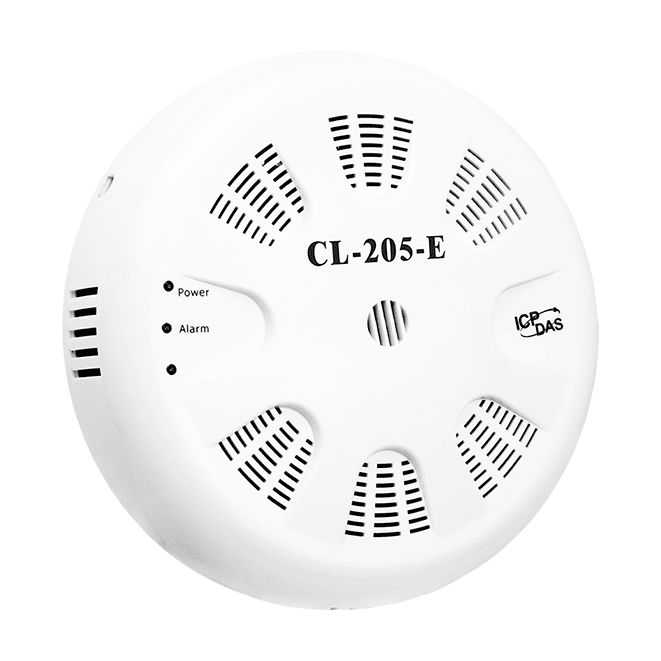

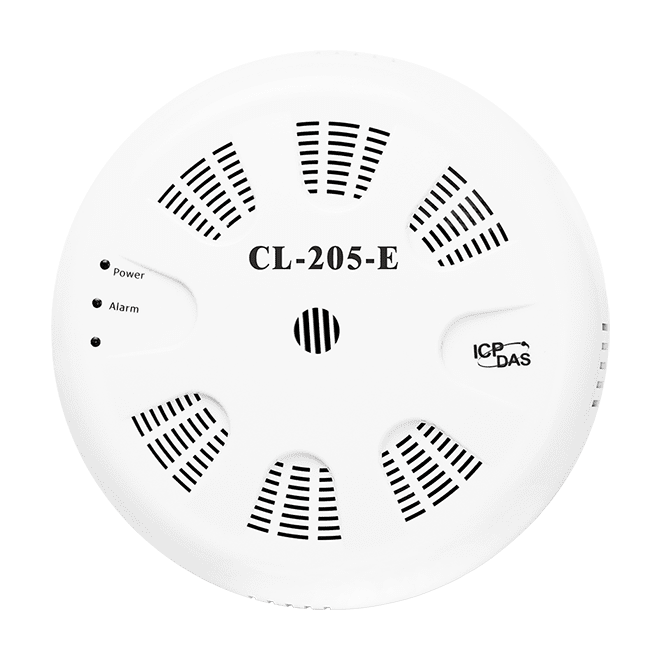

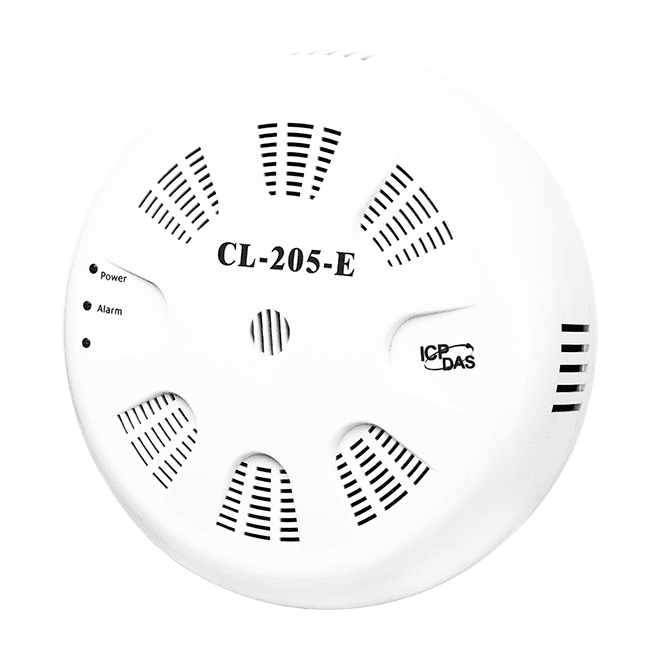

CL-205-E NH3/Temperature/Humidity/Dew Point Data Logger, RS-485/Ethernet PoE
Data logger module that records NH3, temperature, humidity and dew point with date and time stamps, storing up to 450,000 records. Connects via RS-485 or Ethernet with PoE support.
- Measures NH3 (0 to 100 ppm, electrochemical), temperature, humidity and dew point
- Stores up to 450,000 records with date and time stamps
- Supports DCON, Modbus RTU, Modbus TCP and MQTT protocols
- RS-485 and Ethernet interfaces with PoE support
- Relay output of 1 x Form A, SPST for alarm or IAQ device control
- Real-time clock for time-stamped logging
5 118,73 kr per st.
| 1–9 st. | 5 118,73 kr | |
|---|---|---|
| 10–30 st. | 4 963,62 kr | −3 % |
| 31+ st. | 4 863,90 kr | −5 % |
Produktinformation "CL-205-E NH3/Temperature/Humidity/Dew Point Data Logger, RS-485/Ethernet PoE"
CL-205-E CR is a data logger module for monitoring NH3 (ammonia) alongside temperature, relative humidity and dew point. Each reading is stored with date and time stamps in internal memory holding up to 450,000 records, which can be downloaded for later analysis.
Communication is provided through an RS-485 port and a 10/100 Base-TX Ethernet port with PoE capability. Supported protocols are DCON, Modbus RTU over RS-485, and Modbus TCP and MQTT over Ethernet, allowing the module to feed existing HMI, SCADA or IoT platforms in distributed control systems. A relay output can be used for alarm signalling or for controlling air quality devices.
Configuration, real-time monitoring and grouping of several CL-205-E modules are handled through the iAir Utility, which can also export logged data to CSV for use in standard spreadsheet or analysis software. Real-time data can additionally be viewed from iOS or Android apps or a web browser on the same local network.
Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations and pharmacies
- Building and energy management
- Warehouse management
- Museums, archives and galleries
- Indoor or underground parking lot air quality monitoring
| Product type: | Data logger module |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | DCON, Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | 1 |
| Ports: | 2 |
| PoE: | Yes |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | 0 ~ 50°C |
| Mounting: | Ceiling/Wall |
Specifikationer
| System | |
|---|---|
| Alarm | NH3/RH/Temperature |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Temperature Measurement | |
| Range | -10 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Humidity Measurement | |
| Range | 0 ~ 100% RH, Non-condensing |
| Resolution | 0.1% RH, Non-condensing |
| Accuracy | ±5% RH, Non-condensing |
| NH3 Measurement | |
| Range | 0 to 100 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% of measured value |
| Response Time | < 120 Sec |
| Warm-up Time | 180 Sec |
| Relay Output | |
| Channels | 1 x Form A, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 1 x Ethernet |
| Protocol | DCON and Modbus/RTU (RS-485) Modbus TCP and MQTT (Ethernet) |
| Power | |
| Consumption | Non-PoE: 1.6 W (Max.) PoE: 1.7 W (Max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | Ø 150 x 53 (Ø x H) |
| Installation | Ceiling Mounting/Wall Mounting |
| Ingress Protection Rating | IP20 |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
