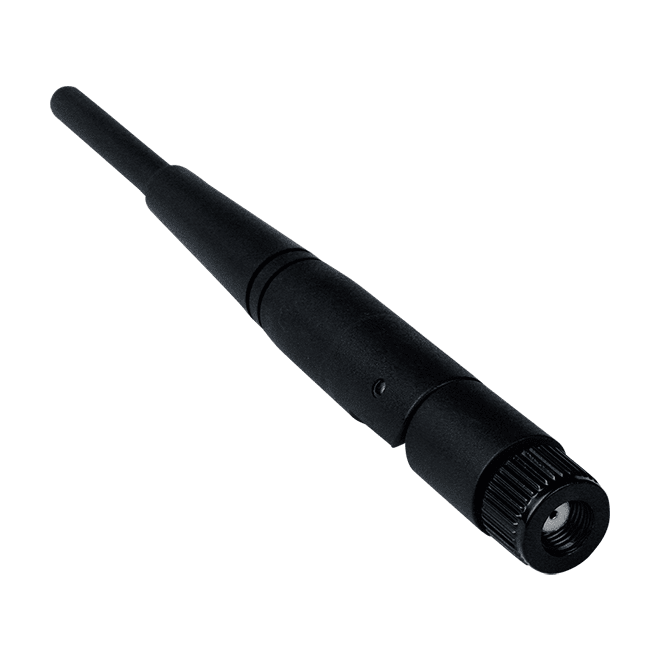

ANT-124-03 2.4 GHz 3 dBi Omni-directional Dipole Antenna, RP-SMA Male
ANT-124-03 is a 3 dBi omni-directional dipole antenna for the 2.4 to 2.5 GHz band, fitted with an RP-SMA male plug. Rated for operation from -30 °C to +85 °C.
- 3 dBi gain with omni-directional dipole radiation pattern
- Covers the 2.4 to 2.5 GHz band
- RP-SMA male (plug) connector
- Operating temperature -30 °C to +85 °C
- Compact, lightweight design: φ13 x 136 mm, 17 ± 2 g
- RoHS and WEEE certified
132,95 kr per st.
| 1–9 st. | 132,95 kr | |
|---|---|---|
| 10–30 st. | 132,95 kr | |
| 31+ st. | 121,87 kr | −8 % |
Produktinformation "ANT-124-03 2.4 GHz 3 dBi Omni-directional Dipole Antenna, RP-SMA Male"
ANT-124-03 is a 3 dBi omni-directional dipole antenna for 2.4 GHz wireless links. Its RP-SMA male plug connector suits equipment with an RP-SMA female socket, and its 2.4 to 2.5 GHz band coverage matches the 2.4 GHz range.
The antenna measures φ13 x 136 mm and weighs 17 ± 2 g, so it can be mounted without adding significant bulk or load. It is rated for an operating temperature range of -30 °C to +85 °C, which suits installations exposed to wide ambient swings.
- Carries RoHS and WEEE certifications.
Applications
- Omni-directional 2.4 GHz wireless links
| Product type: | Antenna |
|---|---|
| Interface: | RP-SMA Male |
| Operating temperature: | -30 ~ +85 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | φ13 x 136 mm |
| Weight | 17 ± 2 g |
| Environment | |
| Operating Temperature | -30 °C ~ +85 °C |
| Antenna | |
| Type | Dipole |
| Connector | RP SMA Male (Plug) |
| Gain (dBi) | 3 |
| Band | 2.4 ~ 2.5GHz |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
