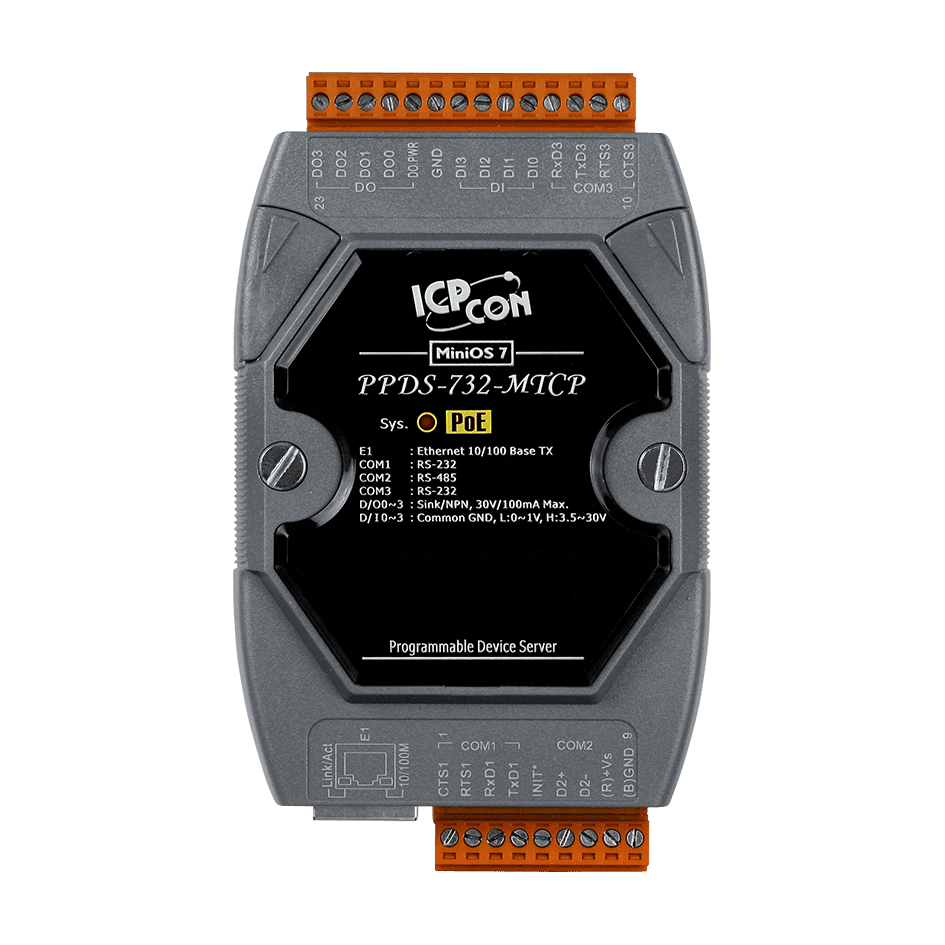

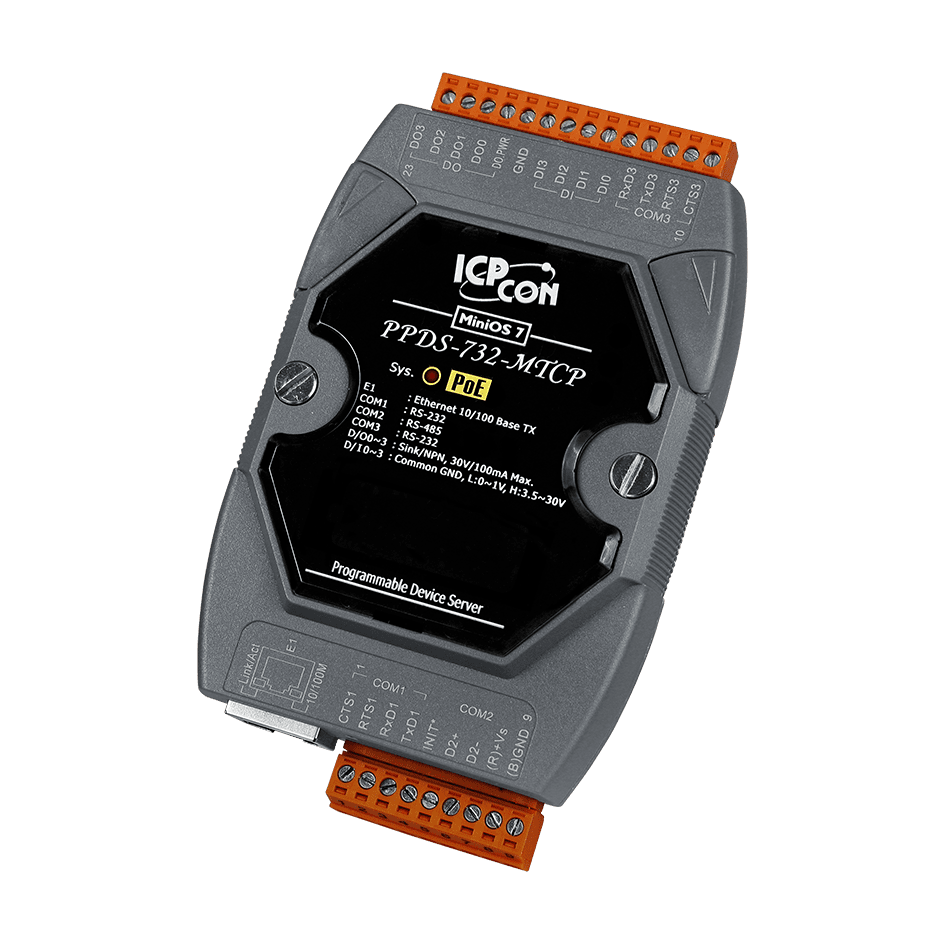

PPDS-732-MTCP PoE Serial-to-Ethernet Device Server, Modbus TCP Gateway
Programmable device server with 2x RS-232 and 1x RS-485 ports, 4 DI, 4 DO, PoE and a Modbus TCP to RTU/ASCII gateway for bringing serial devices onto Ethernet.
- Two RS-232 ports and one RS-485 port for connecting serial devices to Ethernet
- Modbus TCP to RTU/ASCII gateway function for SCADA and HMI communication
- Power over Ethernet to IEEE 802.3af Class 1, or 12 to 48 VDC terminal block power
- Four dry-contact digital inputs with latched and counter functions, plus four open-collector digital outputs
- VxComm driver and utility to present device COM ports as standard PC COM ports
- Built-in watchdog timer and +/-4 kV ESD protection on the serial ports
3 482,64 kr per st.
| 1–9 st. | 3 482,64 kr | |
|---|---|---|
| 10–30 st. | 3 383,14 kr | −3 % |
| 31+ st. | 3 305,74 kr | −5 % |
Produktinformation "PPDS-732-MTCP PoE Serial-to-Ethernet Device Server, Modbus TCP Gateway"
The PPDS-732-MTCP CR links serial equipment to an Ethernet network. It provides two RS-232 ports and one RS-485 port, together with four digital inputs and four digital outputs, and it can be powered over Ethernet via IEEE 802.3af Class 1 or from a 12 to 48 VDC terminal block.
Built around the MiniOS7 operating system, the unit can act as a Modbus TCP to RTU/ASCII gateway for SCADA and HMI systems that speak Modbus TCP. The VxComm driver and utility map the device's COM ports to standard COM ports on a Windows PC, which lets existing serial software reach remote hardware. The unit also includes a watchdog timer and programmable functions, with latched digital input and counter features.
The shipment includes a CA-0910 cable. The removable terminal block and the DIN-rail or wall mounting options make the device straightforward to install in control cabinets and plant environments rated for -25 ~ +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 2x RS-232, 1x RS-485 |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 |
| Stop Bit | 1, 2: for COM1 ~ COM3 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
