DB-8225/2 DB37 to Screw Terminal Board for A-82X and PCI-1800U DAQ
Female DB37 to screw terminal board for A-82X and PCI-1800U DAQ cards, supplied with a 2 m DB37 male-to-male cable. Offers 16 single-ended or 8 differential input channels.
- Screw terminal breakout for the 37-pin I/O connector of A-82X series and PCI-1800U cards
- 16 channels single-ended or 8 channels differential
- Blank pads for break detection, low-pass filter, current shunt and voltage attenuation
- On-board cold junction circuit on analogue input channel 1
- Jumper-selectable single-ended or differential mode on channel 1
- Supplied with CA-3720 DB37 male-to-male cable, 45º, 2 m
751,81 kr per st.
| 1–9 st. | 751,81 kr | |
|---|---|---|
| 10–30 st. | 729,70 kr | −3 % |
| 31+ st. | 718,64 kr | −4 % |
Produktinformation "DB-8225/2 DB37 to Screw Terminal Board for A-82X and PCI-1800U DAQ"

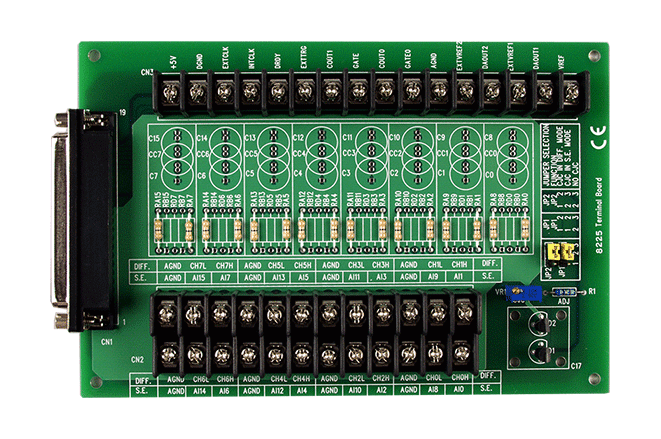

DB-8225/2 is a female DB37 to screw terminal board that breaks out the 37-pin I/O connector of the A-82X series and PCI-1800U data acquisition cards to field wiring terminals. It gives 16 single-ended or 8 differential channels, so engineers can wire sensors directly to the terminals and connect them to the acquisition card through a single cable.
The board includes blank pads for break detection, low-pass filtering, current shunt and voltage attenuation circuits, allowing signal conditioning to be added where the application requires it. An on-board cold junction circuit is fitted to analogue input channel 1, and jumpers select single-ended or differential mode for that channel.
- Supplied with a CA-3720 DB37 male-to-male cable, 45º, 2 m
- Operating temperature range 0 ~ +60 °C, storage -30 ~ +80 °C
- Board size 170 mm x 114 mm
Applications
- Wiring field sensors and signals to A-82X series or PCI-1800U data acquisition cards
- Analogue input signal conditioning using the blank pad circuits
| Product type: | DAQ daughter board |
|---|---|
| Interface: | DB37 |
| Analog inputs: | 16 single-ended / 8 differential |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 170 mm x 114 mm |
| Environment | |
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
