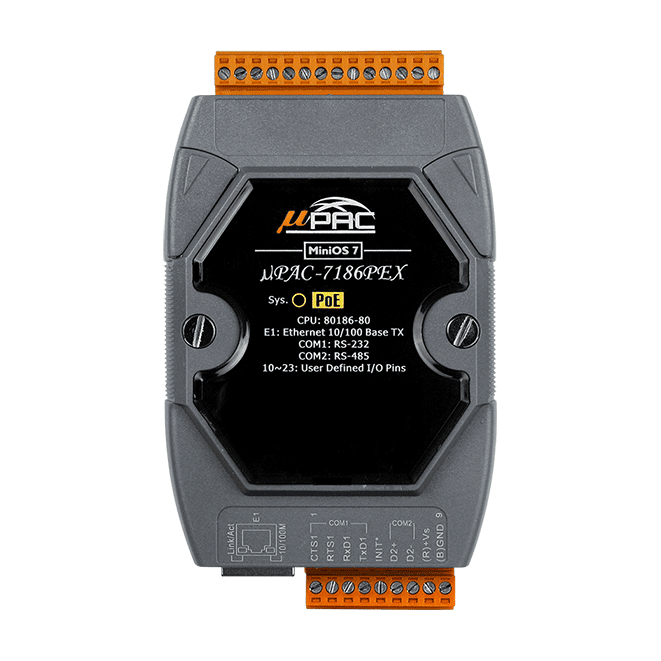

uPAC-7186PEX-G PoE Ethernet PAC with 80 MHz 80186 CPU and MiniOS7
Palm-size Ethernet programmable automation controller with RS-232 and RS-485 ports, MiniOS7 firmware and IEEE 802.3af Class 1 Power over Ethernet, in a grey cover.
- 80186-class CPU at 80 MHz, 16-bit, running the MiniOS7 framework
- Programmable in C using ICP DAS software development tool kits
- 1 x 10/100 Base-TX Ethernet port, 1 x RS-232 and 1 x RS-485 serial port up to 115200 bps
- IEEE 802.3af Class 1 PoE over a standard Category 5 cable, or +12 to 48 VDC input
- 512 KB flash, 512 KB SRAM, 16 KB EEPROM and 31-byte NVRAM
- I/O expansion bus supporting one X-board
3 029,34 kr per st.
| 1–9 st. | 3 029,34 kr | |
|---|---|---|
| 10–30 st. | 2 940,90 kr | −3 % |
| 31+ st. | 2 885,62 kr | −5 % |
Produktinformation "uPAC-7186PEX-G PoE Ethernet PAC with 80 MHz 80186 CPU and MiniOS7"
uPAC-7186PEX-G is a palm-size programmable automation controller built around an 80186-class CPU running at 80 MHz. It runs the MiniOS7 framework and can be programmed in C, making it suited to bringing serial devices onto Ethernet and Internet networks without a separate gateway.
The unit provides one 10/100 Base-TX Ethernet port and one RS-232 and one RS-485 port, with serial rates up to 115200 bps. Power can be taken from the Ethernet cable under IEEE 802.3af Class 1 Power over Ethernet, using a standard Category 5 cable from a PoE switch, or supplied from a +12 to 48 VDC input. An I/O expansion bus accepts one X-board for adding analogue, digital or serial functions.

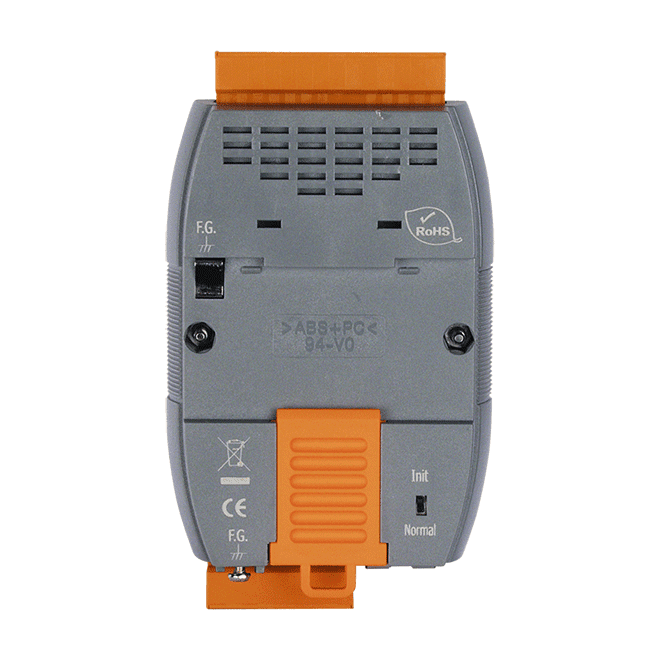

This grey cover variant is intended for DIN-rail installation across an operating range of -25 to +75 °C. Built-in storage includes 512 KB flash, 512 KB SRAM and 16 KB EEPROM, and a watchdog timer and real-time clock are included.
Applications
- Integrating serial devices into Ethernet and Internet communication
- Modbus communication with SCADA software
- Distributed automation and data acquisition with DIN-rail mounted control
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 3 |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray cover |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System/PoE |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802 3af, Class 1 |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
