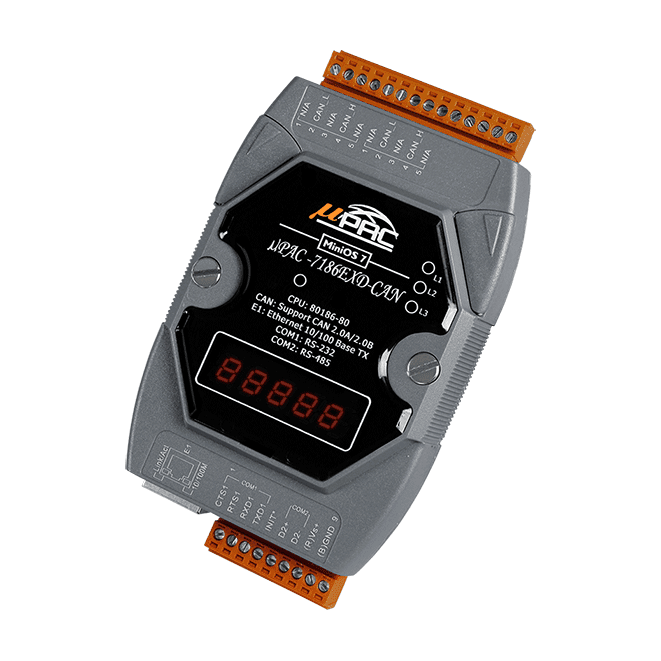

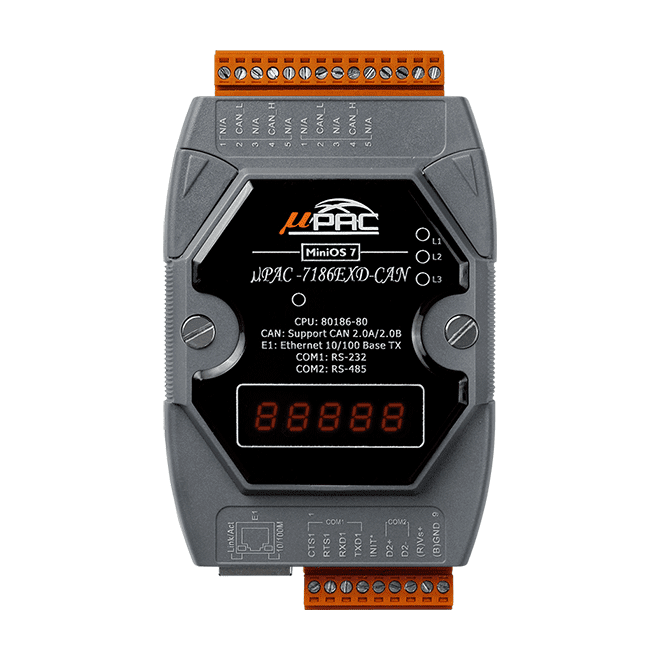

uPAC-7186EXD-CAN-G CAN Programmable Controller, Ethernet and Serial Ports
Programmable CAN controller with Ethernet, RS-232 and RS-485 ports and built-in MiniOS7, suited to linking CAN devices with other communication interfaces in control and monitoring systems.
- CAN 2.0A and 2.0B compatible port with programmable transfer rate up to 1 Mbps
- Jumper-selectable 120Ω terminal resistor on the CAN channel
- 10/100Base-TX Ethernet with TCP, UDP, IP, ICMP and ARP support and remote configuration
- One RS-232 and one RS-485 port, with self-tuner on the RS-485 port
- Built-in MiniOS7 with C/C++ application programming and upgradable OS image
- 80186 CPU at 80 MHz with 512 KB SRAM, 512 KB Flash, EEPROM, NVRAM and real-time clock
3 637,42 kr per st.
| 1–9 st. | 3 637,42 kr | |
|---|---|---|
| 10–30 st. | 3 526,86 kr | −3 % |
| 31+ st. | 3 449,47 kr | −5 % |
Produktinformation "uPAC-7186EXD-CAN-G CAN Programmable Controller, Ethernet and Serial Ports"
The uPAC-7186EXD-CAN-G CR is a programmable automation controller built around an 80186 processor, with a CAN 2.0A/2.0B port, a 10/100Base-TX Ethernet controller and RS-232 and RS-485 serial ports. It is intended for engineers who need a controller to pass commands between a CAN network and other devices on Ethernet or serial links.
Application programs can be written in C/C++ and run under the built-in MiniOS7 operating system. The unit provides 512 KB of SRAM and 512 KB of Flash, along with EEPROM, NVRAM and a real-time clock for storing settings and maintaining time. Three programmable status LEDs and a 7-segment display give local feedback during operation.
This variant has no digital or analogue I/O channels, so it suits communication-focused designs where the CAN, serial and Ethernet interfaces carry the workload. The CAN channel includes a jumper-selectable 120Ω terminal resistor, and the unit mounts on DIN-rail in a plastic housing.
Applications
- Relaying commands between CAN networks and Ethernet or serial communication devices
- Control and monitoring across a range of industrial sectors
- Economical CAN-based communication solutions
| Product type: | PAC |
|---|---|
| Interface: | CAN, Ethernet, RS-232, RS-485 |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 1 CAN, 1 RS-232, 1 RS-485, 1 Ethernet |
| Isolation: | 1000 VDC (DC-to-DC), 2500 Vrms (photo-coupler) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| LED Indicators | |
| Status | 3 x Programmable |
| Ethernet | |
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| COM Ports | |
| Ports | 1 x RS-232 (5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND)) 1 x RS-485 (Self-turner inside ; 2-pin screwed terminal block (DATA+, DATA-)) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 122 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
