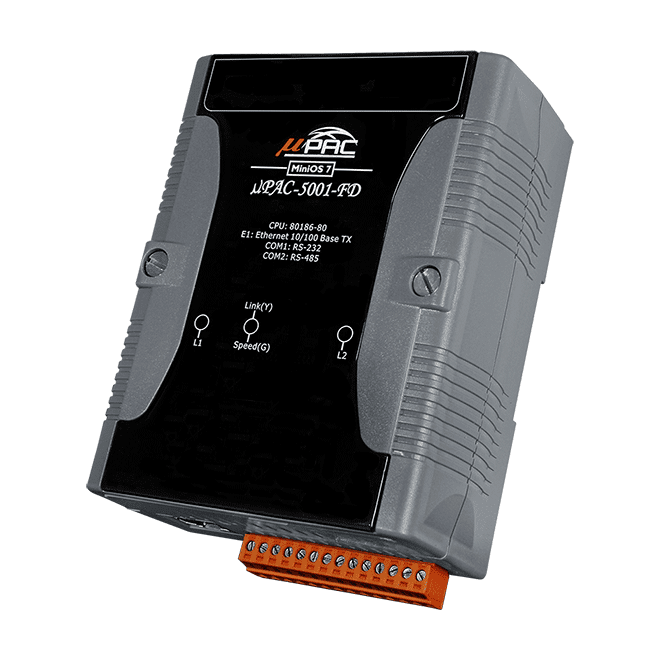

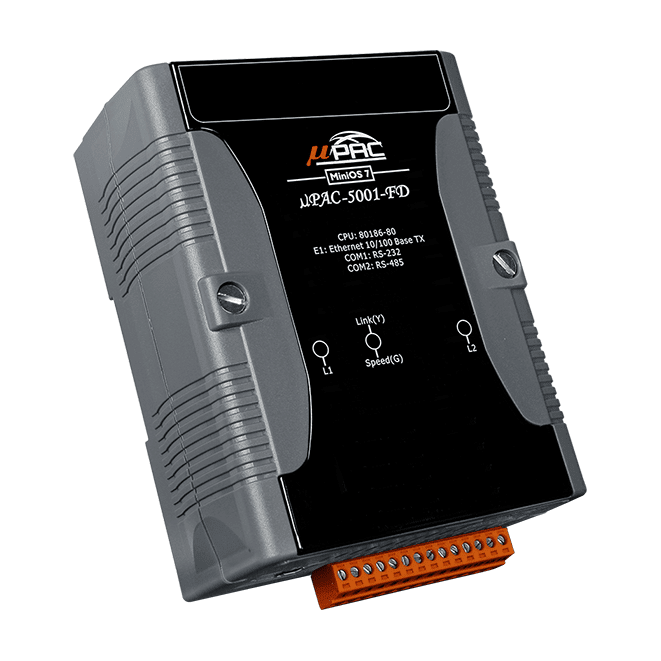

uPAC-5001-FD Ethernet PAC with MiniOS7 and 256 MB NAND Flash
Programmable automation controller with an 80 MHz 80186 CPU, Ethernet, RS-232/RS-485 ports and MiniOS7, for connecting serial devices to Ethernet and SCADA systems over Modbus.
- Built-in MiniOS7 with C language software development toolkits
- Ethernet 10/100 Base-TX port plus RS-232 and RS-485 serial ports, up to 115200 bps
- 80 MHz 80186 CPU with 512 KB SRAM
- 256 MB NAND flash, 512 KB flash, 16 KB EEPROM and microSD support up to 32 GB
- I/O expansion bus for XW-board A/D, D/A, D/I, D/O and serial expansion boards
- Redundant +12 ~ 48 VDC power inputs
4 146,00 kr per st.
| 1–9 st. | 4 146,00 kr | |
|---|---|---|
| 10–30 st. | 4 024,38 kr | −3 % |
| 31+ st. | 3 935,94 kr | −5 % |
Produktinformation "uPAC-5001-FD Ethernet PAC with MiniOS7 and 256 MB NAND Flash"
The uPAC-5001-FD is an Ethernet programmable automation controller built around an 80 MHz 80186 CPU and the MiniOS7 framework from ICP DAS. It suits engineers who need to bring RS-232 or RS-485 serial devices onto an Ethernet network and expose their data to SCADA packages through the standard Modbus protocol.
Application software is written in C using ICP DAS development toolkits, which include Modbus libraries. Storage comprises 512 KB flash, 16 KB EEPROM and 256 MB NAND flash, with microSD expansion of up to 32 GB. The unit also provides a 64-bit hardware serial number, a real-time clock, a watchdog timer and two programmable status LEDs.
An I/O expansion bus accepts XW-board modules for A/D, D/A, D/I, D/O and serial expansion. Power is taken from +12 ~ 48 VDC with redundant inputs, and the unit is rated for operation at -25 ~ +75 °C with DIN-rail mounting.
Applications
- Integrating RS-232 and RS-485 serial devices into Ethernet networks
- Modbus-based data exchange with SCADA software
- Local control with expansion I/O via the XW-board bus
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186, 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NAND Flash | 256 MB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Storage Expansion | Yes, support up 32 GB microSD card |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 91 x 123 x 52 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
