tM-PDW8 8-channel Isolated Digital Input Module, Dry/Wet Contact, RS-485
RS-485 digital input module with 8 photocoupler-isolated channels that accept dry or wet contact signals, with 16-bit counting available on every channel.
- 8 digital input channels with photocoupler isolation and 3750 VDC intra-module isolation
- Dry contact (source-type) or wet contact (sink- or source-type) inputs, selected by wiring
- All channels usable as 16-bit counters, maximum count 65535, up to 100 Hz frequency
- Dual watchdog for module and communication supervision
- 1 x RS-485 port supporting DCON, Modbus RTU and Modbus ASCII
- Baud rates from 1200 to 115200 bps with 8-bit data format options including parity
1 229,82 kr per st.
| 1–9 st. | 1 229,82 kr | |
|---|---|---|
| 10–30 st. | 1 185,51 kr | −4 % |
| 31+ st. | 1 163,35 kr | −5 % |
Produktinformation "tM-PDW8 8-channel Isolated Digital Input Module, Dry/Wet Contact, RS-485"

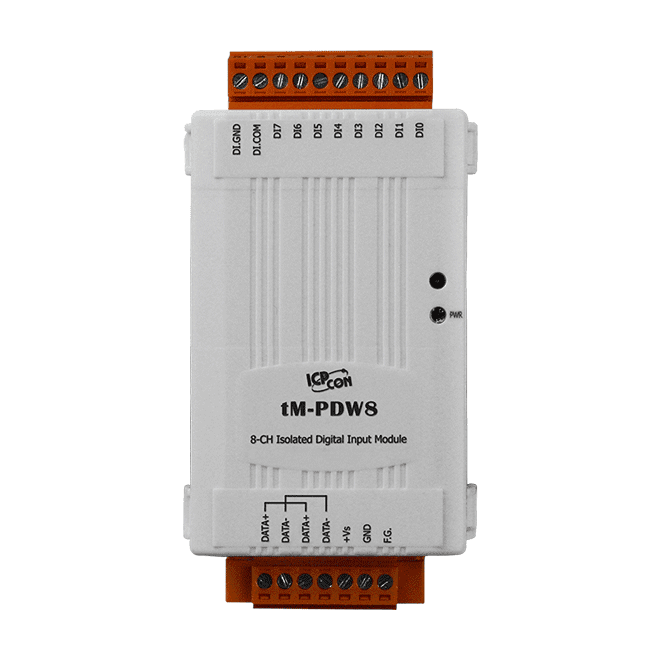

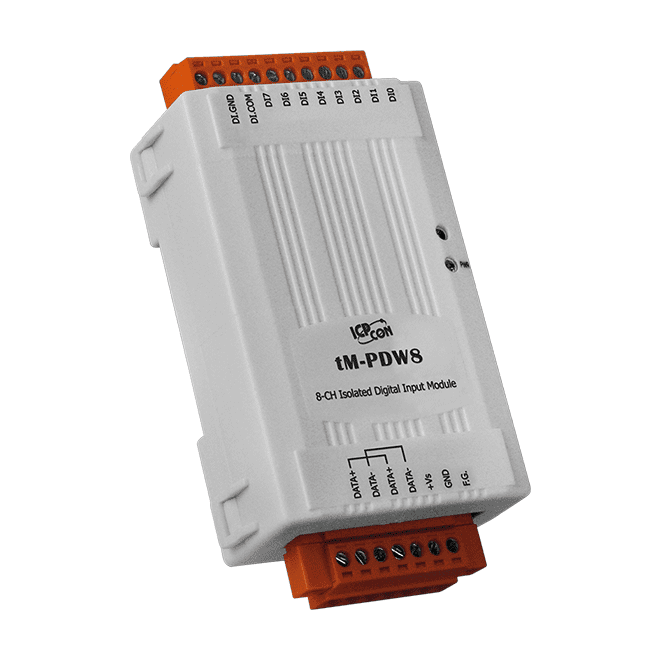

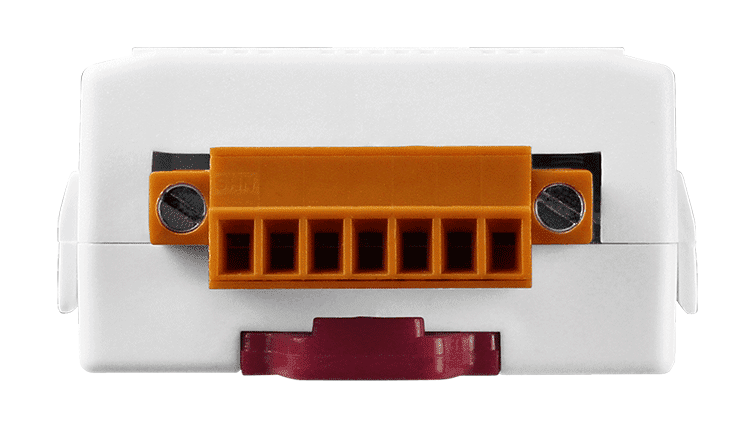

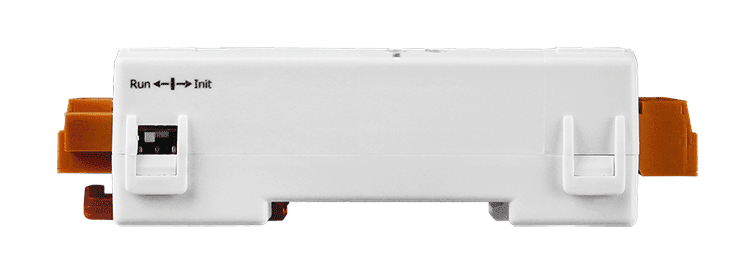

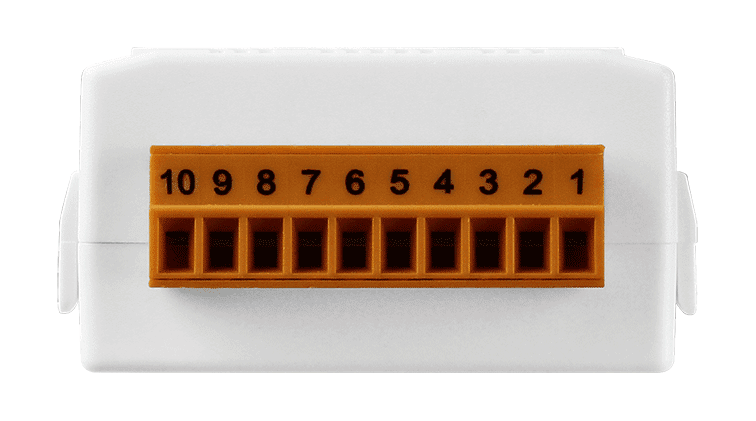

The tM-PDW8 CR is an 8-channel digital input module for RS-485 remote I/O networks. Each channel is photocoupler isolated, and the input type is set by wire connections, so the same module can read either dry contacts or wet (voltage) signals without changing hardware.
Wet contact channels can be wired as sink-type or source-type inputs, which helps when matching the module to the polarity of field devices. Every channel can also operate as a 16-bit counter with a maximum count of 65535, making the module suitable for pulse and switch counting tasks. Dual watchdog functions are provided for supervising the module and communication.
Communication uses DCON, Modbus RTU or Modbus ASCII over a single RS-485 port, with baud rates from 1200 to 115200 bps. The module is powered from 10 to 30 VDC, mounts on a DIN rail and has an operating temperature range of -25 to +75 °C. It carries CE, UKCA, FCC, RoHS and WEEE certification markings.
Applications
- On/off control
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage systems
- Semiconductor fabrication
- Control systems
| Product type: | Digital input module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus ASCII, Modbus RTU |
| Digital inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Dry Contact, Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +3.5 ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +1 VDC max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | ±70 VDC |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol | DCON, Modbus RTU, Modbus ASCII |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.43 W max. |
| Powered from Terminal Block | 10 ~ 30 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
