iPPC-6801-IoT 15-inch Panel PC with Atom E3845 and Windows 10 IoT
Fanless 15-inch touch Panel PC with Intel Atom E3845 and Windows 10 IoT Enterprise LTSC, offering dual Gigabit Ethernet, RS-232/422/485 serial ports and redundant power input.
- Windows 10 IoT Enterprise LTSC pre-installed on 128 GB SSD
- Intel Atom E3845 1.91 GHz 64-bit quad-core CPU with 4 GB DDR3 SDRAM
- 15-inch TFT LCD with 5-wire resistive touch panel, 1024 x 768 resolution
- Two RJ-45 10/100/1000 Base-TX Ethernet ports and two RS-232/RS-422/RS-485 serial ports
- Four USB 2.0 host ports and a Compact Flash slot for additional storage
- Fanless metal casing with NEMA 4/IP65 front panel for panel or VESA mounting
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "iPPC-6801-IoT 15-inch Panel PC with Atom E3845 and Windows 10 IoT"

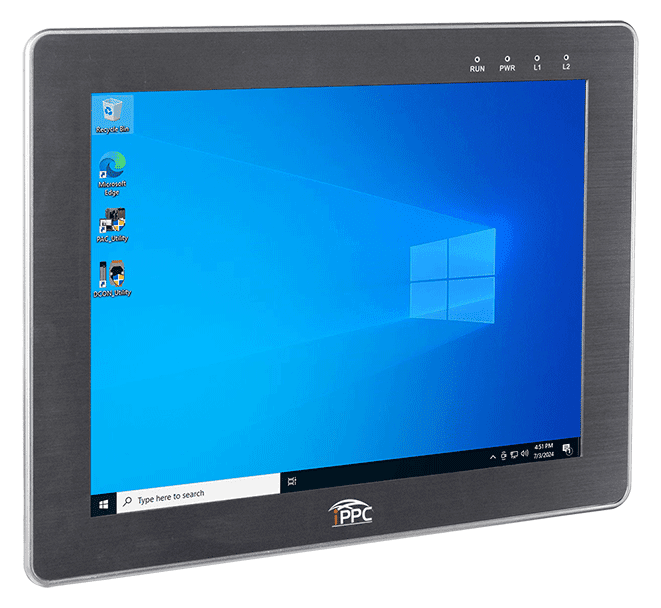

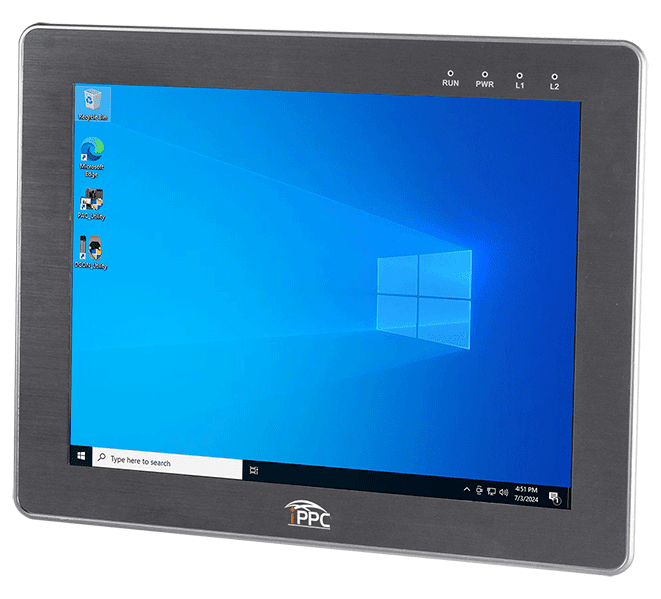

The iPPC-6801-IoT CR combines computing, I/O and a 15-inch TFT touch display in one panel-mounted unit. It suits engineers who need a single device for operator interface, data acquisition and control, running Windows 10 IoT Enterprise LTSC on a 1.91 GHz Intel Atom E3845 quad-core processor.

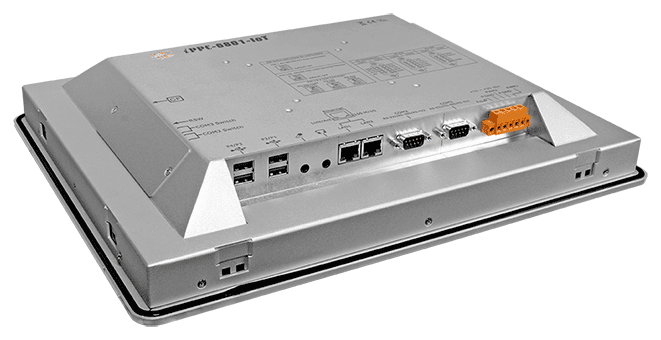

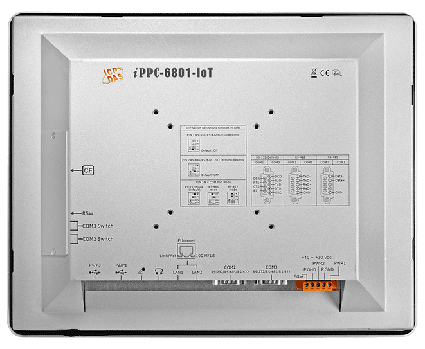

Connectivity covers two RJ-45 10/100/1000 Base-TX Ethernet ports, two RS-232/RS-422/RS-485 serial ports and four USB 2.0 host ports. The unit can be extended with remote Ethernet and RS-485 I/O modules. Storage comprises a 128 GB SSD and a Compact Flash slot, with 4 GB DDR3 SDRAM and non-volatile MRAM and EEPROM for data retention.
The fanless, metal-cased front panel is NEMA 4/IP65 rated for panel mounting, and the operating range is -20 ~ +60 °C. Power is +10 ~ 30 VDC with 1500 VDC isolation and a redundant power input option. The unit carries CE, UKCA, RoHS and WEEE marks.
Applications
- Operator interface (HMI) terminals
- Data acquisition at the machine or panel level
- Control functions with remote I/O expansion
- Industrial environments requiring IP65 front protection
| Product type: | Panel PC |
|---|---|
| Interface: | Ethernet, RS-232/RS-422/RS-485, USB 2.0 |
| Ports: | 2 x RJ-45, 2 x serial, 4 x USB 2.0 |
| Isolation: | 1500 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | Panel, VESA |
| Housing: | Metal, NEMA 4/IP65 front |
Specifikationer
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC |
| Framework Support | .Net Framework 3.5, 4.0, 4.5, 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | 1 x 128 GB SSD, 1 x CF card slot |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Size | 15" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 700：1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232/RS-422/RS-485 |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1500 VDC Isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 29.0 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 381 x 305 x 63 (W x L x H) |
| Panel Cut-out (mm) | 364 x 288, ±1 (W x H) |
| Installation | Panel Mounting, VESA Mounting (75 x 75, 100 x 100) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -20 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
