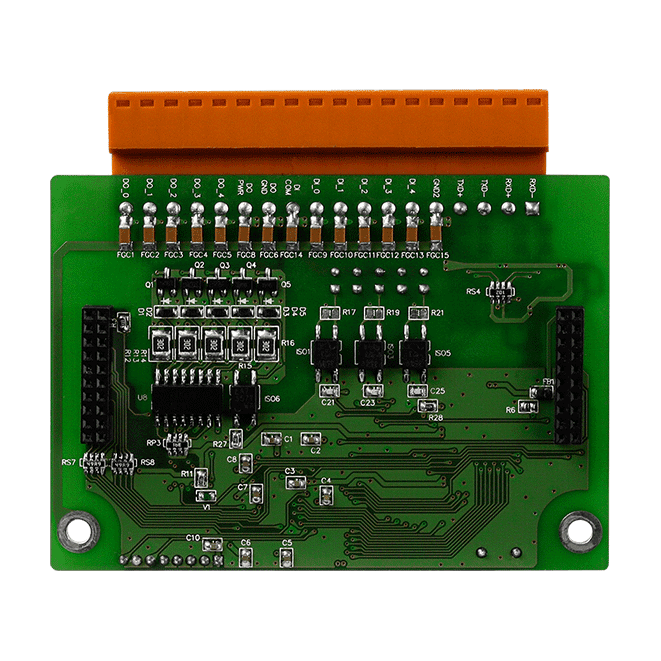

XW507 RS-422/485 Port and DI/O Expansion Board, 5-ch Isolated DI/DO
XW507 CR expansion board for uPAC-50xx and WP-51xx controllers, adding one RS-422/485 serial port and five isolated wet-contact inputs and sink-type outputs.
- One non-isolated RS-422/485 serial port with speeds up to 115200 bps
- 128-byte FIFO buffers on the serial port
- Five isolated wet-contact digital inputs, ON level +10 VDC to +50 VDC, 3750 Vrms isolation
- Five isolated sink (NPN) open-collector outputs, 10 ~ 40 VDC load voltage
- 200 mA per channel output load current at 25 °C, 1.4 A overload protection
- Serial parity None, Even, Odd, Mark, Space; 5 to 8 data bits; 1, 1.5 or 2 stop bits
961,87 kr per st.
| 1–9 st. | 961,87 kr | |
|---|---|---|
| 10–30 st. | 928,70 kr | −3 % |
| 31+ st. | 917,65 kr | −5 % |
Produktinformation "XW507 RS-422/485 Port and DI/O Expansion Board, 5-ch Isolated DI/DO"
The XW507 CR is an expansion board for the uPAC-50xx and WP-51xx series controllers. It adds a single non-isolated RS-422/485 serial port alongside five isolated digital inputs and five isolated digital outputs, so one board covers both serial connectivity and discrete I/O expansion.
The serial port runs at up to 115,200 bps and buffers data in 128-byte FIFOs. Parity, data bit and stop bit settings are configurable, which suits attaching bar code readers, intelligent sensors, instrumentation or computers that use an RS-422 or RS-485 interface.
The digital inputs are wet-contact type with sink/source capability and 3750 Vrms isolation. The outputs are isolated open-collector sink (NPN) channels rated for 10 to 40 VDC loads, each handling 200 mA at 25 °C. The board draws 0.4 W and operates from -25 to +75 °C.
Applications
- Serial connection of bar code readers, intelligent sensors and instrumentation equipment
- Discrete I/O expansion on uPAC-50xx and WP-51xx controllers
- Serial and digital I/O expansion for computers and other devices with RS-422 or RS-485 ports
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-422/485 |
| Digital inputs: | 5 |
| Digital outputs: | 5 |
| Ports: | 1 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 5 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 VDC ~ +50 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Isolation | 3750 Vrms |
| Input Impedance | 10 K Ohm |
| Overvoltage Protection | 60 VDC |
| Digital Output | |
| Channels | 5 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ 40 VDC |
| Load Current | 200 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Isolation | 3750 Vrms |
| COM Ports | |
| Ports | 1x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | 128 bytes |
| Power | |
| Consumption | 0.4 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 17 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
