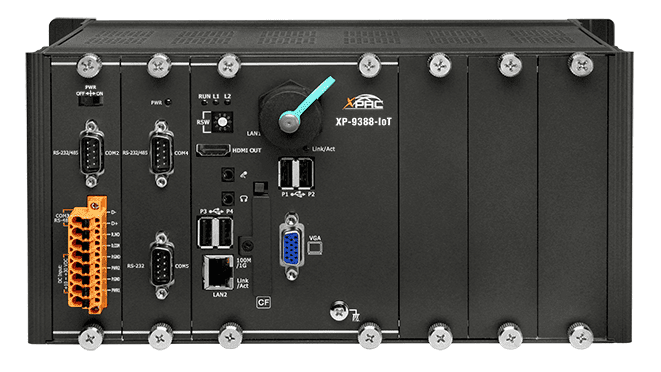

XP-9388-IoT Win-GRAF PAC, 3-Slot Windows 10 IoT Enterprise Soft PLC
3-slot Win-GRAF PAC running Windows 10 IoT Enterprise, combining control, HMI and I/O expansion in one unit with an Intel Atom E3845 CPU and IEC 61131-3 soft PLC.
- Three I/O expansion slots for I-9K and I-97K series modules
- Intel E3845 1.91 GHz quad-core CPU with 4 GB DDR3 SDRAM and 64 GB SSD
- Embedded Win-GRAF SoftLogic programming to IEC 61131-3
- VGA and HDMI outputs with eLogger HMI support
- Two RJ-45 10/100/1000 Base-TX Ethernet ports
- Isolated RS-232 and RS-485 COM ports rated 3000 VDC
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "XP-9388-IoT Win-GRAF PAC, 3-Slot Windows 10 IoT Enterprise Soft PLC"
The XP-9388-IoT CR is a Win-GRAF PAC from the XP-9000-IoT series that brings a soft PLC, an operator interface and I/O expansion into a single metal housing. Its three slots accept I-9K and I-97K series I/O modules, so local I/O can be built up alongside the controller without a separate HMI panel.
The controller runs Windows 10 IoT Enterprise (64-bit) on an Intel E3845 1.91 GHz quad-core CPU with 4 GB DDR3 SDRAM and a 64 GB SSD. Control logic is written in embedded Win-GRAF SoftLogic following IEC 61131-3, and eLogger HMI support, VGA and HDMI outputs, and a buzzer and rotary switch cover local operator tasks.
Communication options include two 10/100/1000 Base-TX Ethernet ports, isolated RS-232 and RS-485 COM ports, and an OPC UA server alongside Modbus TCP/IP, Modbus RTU and Modbus ASCII. Redundant power inputs and support for a dual-PAC redundant system are available for installations that need higher availability. The unit mounts on DIN-rail or wall.
Applications
- Combined control, HMI and data acquisition in a single PAC
- Local and remote I/O control with I-9K, I-97K and remote expansion modules
- Dual-PAC redundant control systems
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232/RS-485, USB, VGA |
| Protocol: | Modbus TCP, OPC UA |
| Ports: | 2 |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise (64-bit) |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Function | • eLogger HMI • Redundancy Solution • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM, 64 GB Flash |
| Storage | 64 GB SSD, 32 GB CF card |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | XP-9188-IoT: 1 XP-9388-IoT: 3 XP-9788-IoT: 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-9188-IoT: 18.5W XP-9388-IoT: 18.7W XP-9788-IoT: 20.4W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | XP-9188-IoT: 239 x 164 x 133 (W x L x H) XP-9388-IoT: 300 x 164 x 133 (W x L x H) XP-9788-IoT: 422 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
