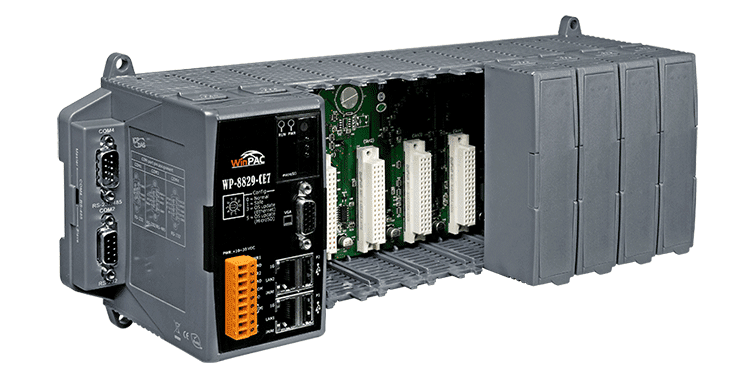

WP-8829-CE7-1500 InduSoft WinPAC 8-Slot Controller, Windows CE 7.0
Windows CE 7.0 WinPAC with a 1500-tag InduSoft runtime pre-installed, a 1.0 GHz Cortex-A8 CPU and 8 I/O expansion slots for HMI and SCADA projects.
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 Professional operating system with InduSoft runtime (1500 tags) pre-installed
- Eight I/O expansion slots for I-8K and I-87K series modules
- Two 10/100/1000M Ethernet ports (RJ-45)
- Redundant power inputs with one power relay (1 A @ 24 VDC) for alarm
- Hard real-time capability and watchdog timer
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-8829-CE7-1500 InduSoft WinPAC 8-Slot Controller, Windows CE 7.0"
The WP-8829-CE7-1500 is a Windows CE 7.0 based programmable automation controller supplied with a 1500-tag InduSoft runtime already installed. It pairs a 1.0 GHz Cortex-A8 processor with 512 MB of DDR3 memory and eight expansion slots that accept I-8K (parallel-type) and I-87K (serial-type) series I/O modules.
Engineers would typically select this unit for HMI and SCADA work that needs a VGA display output, two 10/100/1000M Ethernet ports, four serial COM ports and a redundant power input with an alarm relay. The 64-bit hardware serial number supports software copy protection, and the hard real-time capability and watchdog timer help with dependable control.
Environment and mechanical data
- Operating temperature -25 ~ +75 °C, storage -30 ~ +80 °C
- Humidity 10 ~ 90% RH, non-condensing
- Dimensions 355 x 132 x 111 mm (W x L x H), DIN-rail and wall mounting
Applications
- HMI (Human Machine Interface) applications
- SCADA (Supervisory Control and Data Acquisition) systems
- Distributed control with expandable I/O
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB, VGA |
| Ports: | 2 Ethernet, 4 COM, 2 USB |
| Isolation: | 3000 VDC (one RS-485 port) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash 256: MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 8 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
