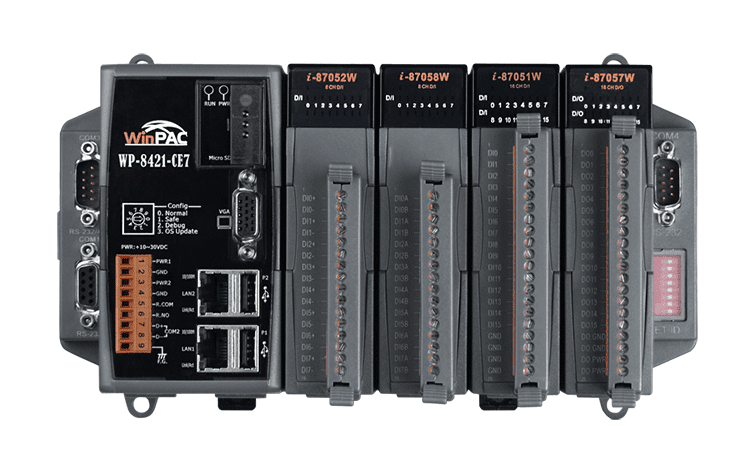

WP-8421-CE7 4-slot Standard PAC, Cortex-A8 1 GHz, WinCE 7.0
4-slot Windows CE 7.0 PAC with a 1.0 GHz Cortex-A8 CPU for I-8K and I-87K I/O expansion, with two Ethernet ports and four serial ports.
- Four expansion slots for I-8K (parallel) and I-87K (serial) I/O modules
- 1.0 GHz Cortex-A8 CPU running Windows CE 7.0 with hard real-time capability
- 512 MB SDRAM, 256 MB Flash and optional microSD card up to 32 GB
- Two 10/100/1000BASE-T Ethernet ports and two USB 2.0 host ports
- Four serial ports: two RS-232, one isolated RS-485 and one RS-232/RS-485
- Redundant power input with alarm relay, plus dual watchdog timer
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-8421-CE7 4-slot Standard PAC, Cortex-A8 1 GHz, WinCE 7.0"
The WP-8421-CE7 CR is a four-slot programmable automation controller built around a 1.0 GHz Cortex-A8 processor and Windows CE 7.0. It accepts four I-8K (parallel) or I-87K (serial) I/O modules, so you can build a local I/O system around a single controller, mounted on DIN-rail or on a wall.
Because it runs Windows CE 7.0, the controller can host PC-based control software, including applications written in Visual Basic.NET, Visual C#, Visual C++, as well as SCADA packages and soft PLC environments. Hard real-time capability and a dual watchdog timer support deterministic control.
Connectivity includes two 10/100/1000BASE-T Ethernet ports, four serial ports (two RS-232, one RS-485 with 3000 VDC isolation and one RS-232/RS-485), two USB 2.0 host ports and a VGA output. The unit measures 231 x 132 x 111 mm, weighs 885 g and operates from -25 ~ +75 °C.
Applications
- PC-based control with Visual Basic.NET, Visual C# or Visual C++ software
- SCADA systems
- Soft PLC control
- Local I/O control with I-8K and I-87K expansion modules
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Ports: | 2 x Ethernet, 4 x serial, 2 x USB 2.0 |
| Isolation: | 3000 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1x Power, 1 x System/Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | WP-8121-CE7: 1 WP-8421-CE7: 4 WP-8821-CE7: 8 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address * (except WP-8121-CE7) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | WP-8121-CE7: 1 x RS-232, 1 x RS-485 (3000 VDC Isolated) WP-8421-CE7: 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 WP-8821-CE7: 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Capacity | 1.2 A, 5 V supply to CPU and backplane, 4.8 A, 5 V supply to I/O expansion slots, total 30 W |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | WP-8121-CE7: 7.3 W (0.3 A @ 24 VDC) WP-8421-CE7: 9.1 W (0.38 A @ 24 VDC) WP-8821-CE7: 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | WP-8121-CE7: 95 x 132 x 111 WP-8421-CE7: 231 x 132 x 111 WP-8821-CE7: 355 x 132 x 111, (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Ingress Protection Rating | IP30 |
| Weight | WP-8121-CE7: 510 g WP-8421-CE7: 885 g WP-8821-CE7: 1225 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
