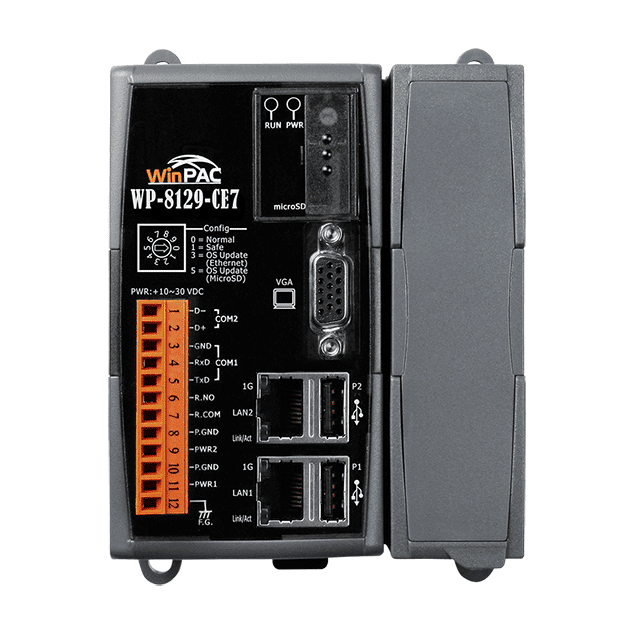

WP-8129-CE7-1500 InduSoft WinPAC, 1-Slot, Windows CE 7.0 PAC
1-slot WinPAC with InduSoft Runtime (1500 tags) pre-installed on Windows CE 7.0, a 1.0 GHz Cortex-A8 CPU and one expansion slot for I-8K and I-87K I/O modules.
- InduSoft Runtime (1500 tags) pre-installed on Windows CE 7.0 Professional
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- One I/O expansion slot for I-8K parallel and I-87K serial modules
- Two 10/100/1000Base-TX Ethernet ports (RJ-45)
- RS-232 (non-isolated) and RS-485 (3000 VDC isolated) serial ports, plus two USB ports
- Redundant power inputs (+10 ~ +30 VDC) with alarm relay
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-8129-CE7-1500 InduSoft WinPAC, 1-Slot, Windows CE 7.0 PAC"
WP-8129-CE7-1500 is a Windows CE 7.0 programmable automation controller with the InduSoft Runtime pre-installed and licensed for up to 1500 tags. It suits engineers building operator interfaces and supervisory systems who want the control hardware and HMI/SCADA runtime in one DIN-rail or wall-mounted unit.

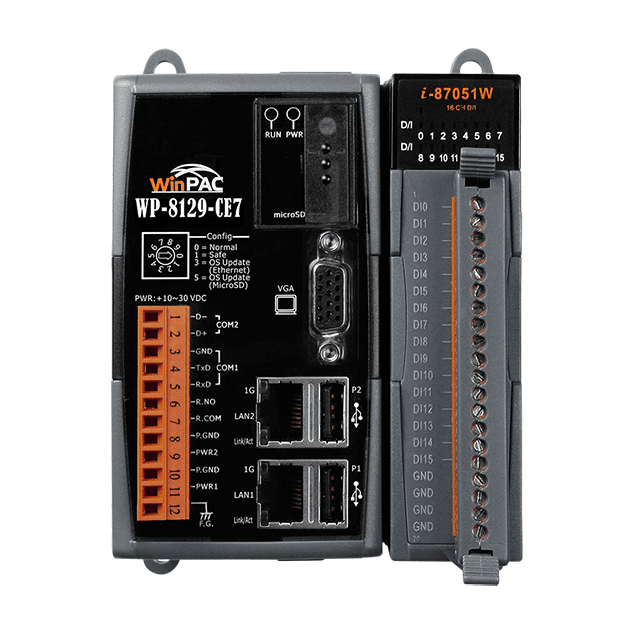

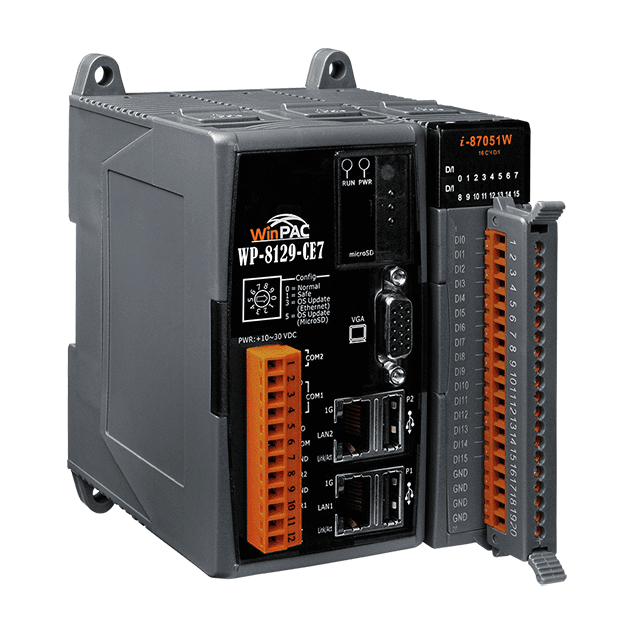

The controller is built around a 1.0 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 256 MB Flash, plus a microSD slot for storage expansion. A single I/O expansion slot accepts ICP DAS I-8K (parallel) or I-87K (serial) modules, and the unit provides two 10/100/1000Base-TX Ethernet ports, RS-232 and isolated RS-485 serial ports, two USB connectors and VGA video output.
Redundant power inputs with an alarm relay, a -25 ~ +75 °C operating range and a 64-bit hardware serial number for software copy protection make the unit suitable for demanding installations. Ordering code WP-8129-CE7-1500 CR refers to this 1500-tag InduSoft variant.
Applications
- HMI (Human Machine Interface) applications
- SCADA (Supervisory Control and Data Acquisition) systems
- Distributed control with I-8K and I-87K expansion I/O
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 x Ethernet, 1 x RS-232, 1 x RS-485, 2 x USB |
| Isolation: | RS-485 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 1 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 7.3 W (0.3 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 95 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
