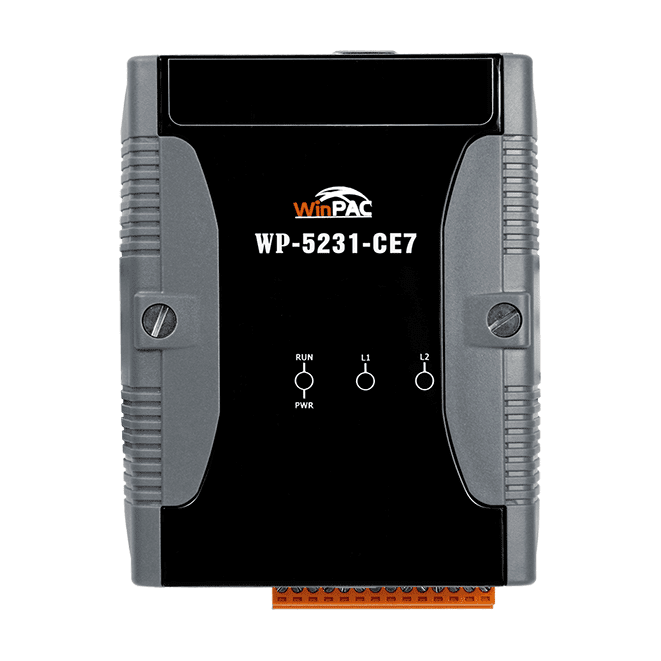

WP-5231-CE7 WinCE 7.0 PAC with Cortex-A8 1 GHz CPU and I/O Bus
Cortex-A8 1 GHz WinCE 7.0 programmable automation controller with 512 MB SDRAM, four RS-232/485 serial ports, Gigabit Ethernet and an I/O expansion bus for XV-board I/O.
- Cortex-A8, 1.0 GHz CPU running Windows CE 7.0 Professional
- 512 MB DDR3 SDRAM, 256 MB Flash and 64 KB FRAM for data retention
- Optional microSD card supporting up to 32 GB
- 1 x 10/100/1000 Base-TX Ethernet, 2 x RS-232, 2 x RS-485 (one 2500 VDC isolated) and 1 x USB 2.0
- I/O expansion bus interface for the optional XV-board high-protection I/O
- Built-in VGA port, real-time clock and dual watchdog timer
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-5231-CE7 WinCE 7.0 PAC with Cortex-A8 1 GHz CPU and I/O Bus"
The WP-5231-CE7 CR is a Windows CE 7.0 programmable automation controller built around a 1 GHz Cortex-A8 processor. It suits engineers who need a Windows-based PAC with built-in VGA output, multiple serial ports and an I/O expansion bus for local expansion.
Memory is provided by 512 MB SDRAM, 256 MB Flash and 64 KB FRAM for data retention, with an optional microSD card of up to 32 GB for storing programs, images and data. A 64-bit hardware serial number supports software protection, and dual watchdog timers are built in.

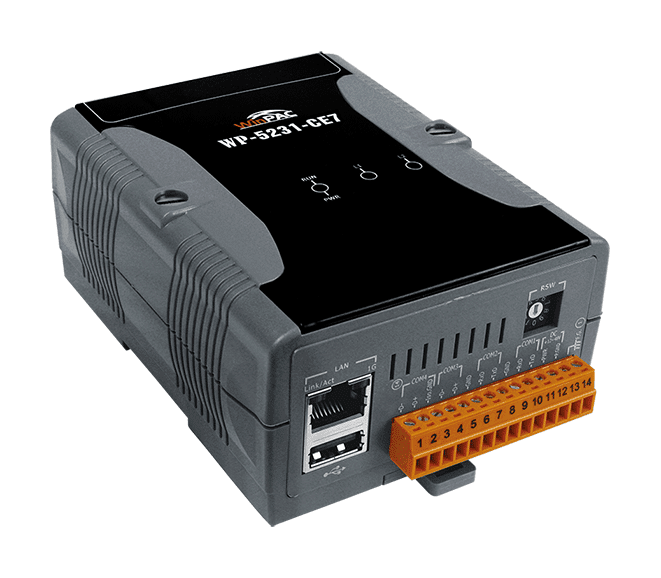

Connectivity includes one 10/100/1000BASE-T Ethernet port, four serial ports and one USB 2.0 host port. The unit operates from -25 ~ +75 °C and mounts on DIN-rail in a plastic housing rated IP30.
Applications
- Industrial automation control with a Windows CE PAC
- Local storage of application programs, image files and data
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 |
| Ports: | 6 |
| Isolation: | 2500 VDC (RS-485 port) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 Professional |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |

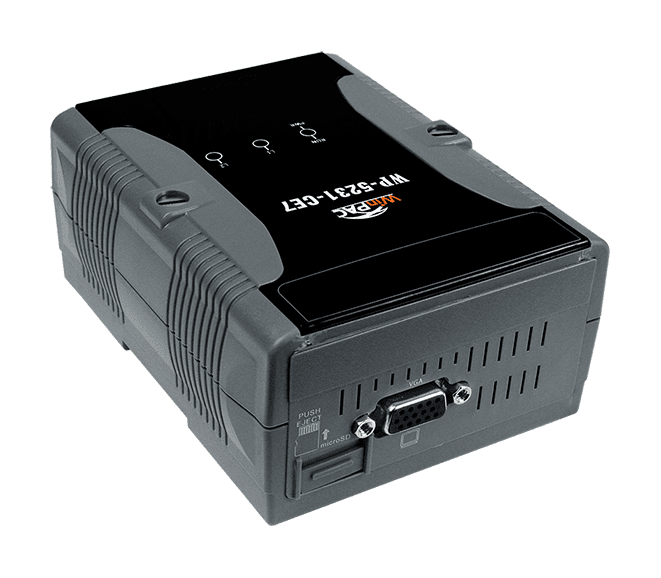

| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System/Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 |
| Weight | 260 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
