VPD-130N-H 3.5 inch Touch HMI Panel with RS-232/RS-485 and RTC
VPD-130N-H 3.5 inch colour touch HMI with one RS-232/RS-485 port, real-time clock and IP65 front panel, for DIN-rail or panel mounting.
- 3.5 inch TFT colour touch screen, 240 x 320 resolution, 65535 colours
- One RS-232/RS-485 serial port including self-tuner
- Real-time clock (RTC) on board
- IP65-rated front panel for panel-mounted installations
- Powered from terminal block, +12 ~ 48 VDC, 2 W consumption
- HMIWorks free development tool with GUI design, Ladder Designer and C language
2 703,40 kr per st.
| 1–9 st. | 2 703,40 kr | |
|---|---|---|
| 10–30 st. | 2 614,76 kr | −3 % |
| 31+ st. | 2 559,36 kr | −5 % |
Produktinformation "VPD-130N-H 3.5 inch Touch HMI Panel with RS-232/RS-485 and RTC"

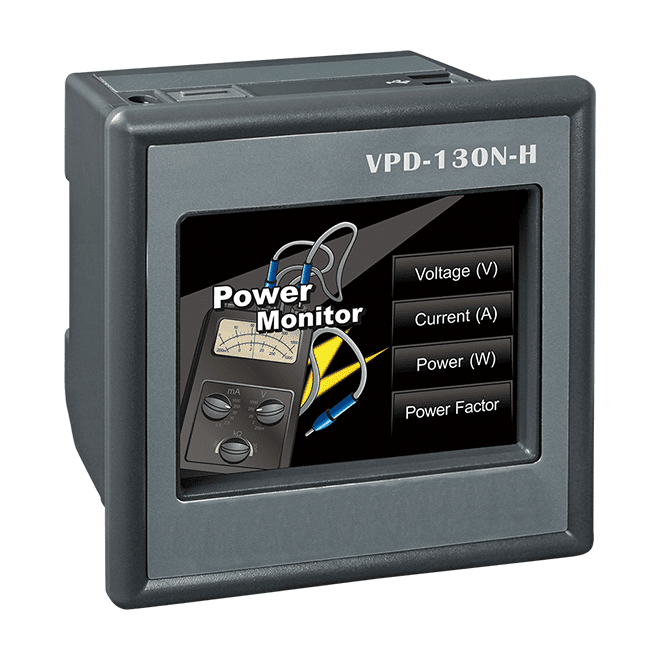

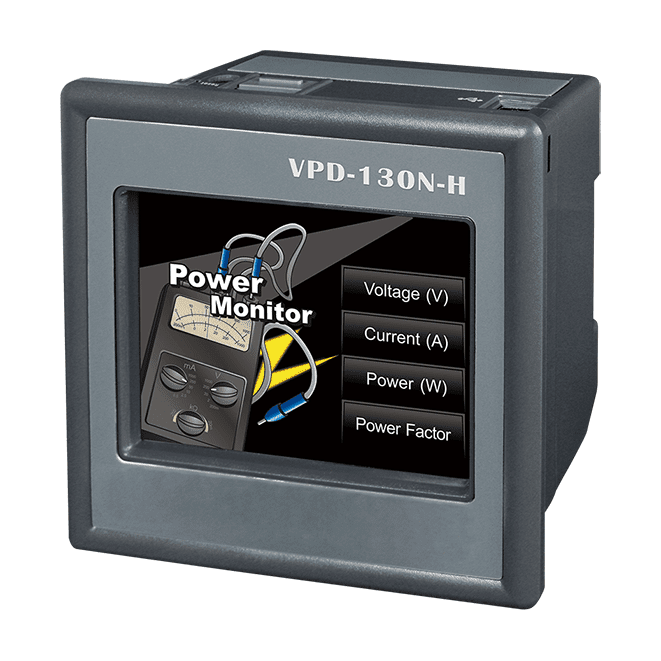

VPD-130N-H is a compact 3.5 inch colour touch HMI from the VPD series, built around a 240 x 320 TFT display with 65535 colours. It gives operators a graphical front end for machine and process control, with a touch screen, buzzer, rotary switch and reset button on the unit.
Connectivity centres on a single RS-232/RS-485 serial port with self-tuner, which suits serial links to controllers and remote devices. A real-time clock is included for time-stamped operation. The VPD-130N-H has no Ethernet port; the source lists Ethernet only for the VPD-133-H and VPD-133N-H.

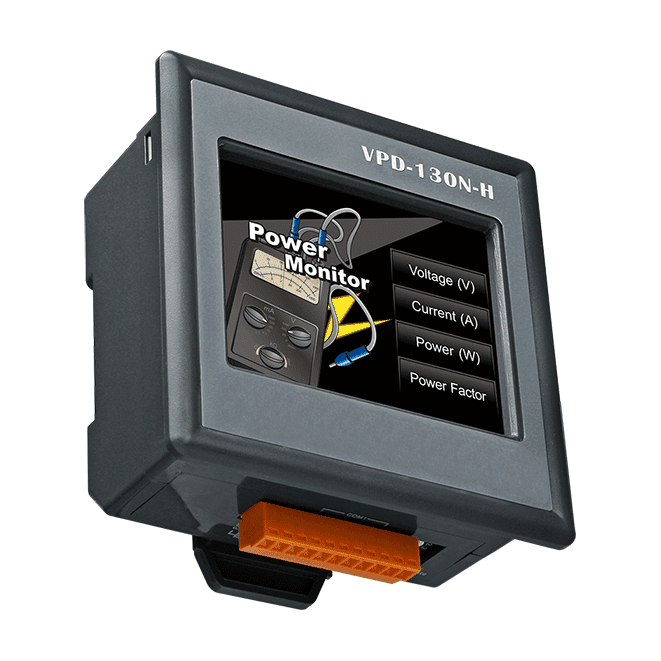

The unit mounts on DIN-rail or in a panel, with an IP65-rated front panel and a 12 to 48 VDC supply. Screens are developed in the free HMIWorks software, which offers GUI design, Ladder Designer for PLC users and C language for custom programming. Ordering code VPD-130N-H CR is the item supplied.
Applications
- Operator interface for machine and control panels
- System retrofits and new installations
- Serial-connected monitoring and control of remote I/O
| Product type: | HMI touch panel |
|---|---|
| Interface: | RS-232/RS-485 |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 3.5 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 270 cd/m2 |
| Touch Panel | Yes |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| COM Ports | |

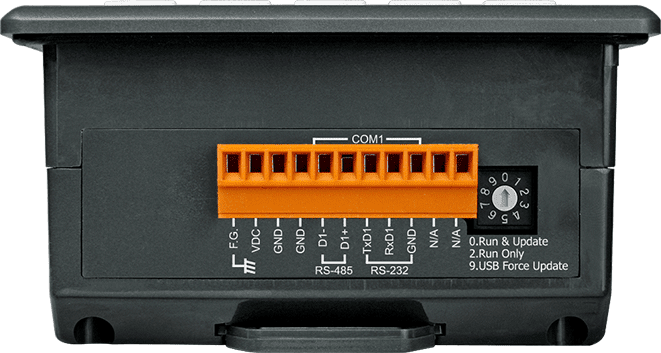

| Ports | 1 x RS-232/RS-485 including Self-Tuner |
| USB | |

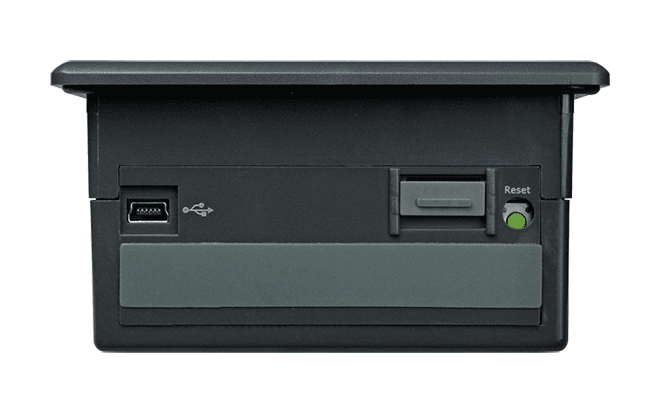

| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 103 mm x103 mm x 53 mm |

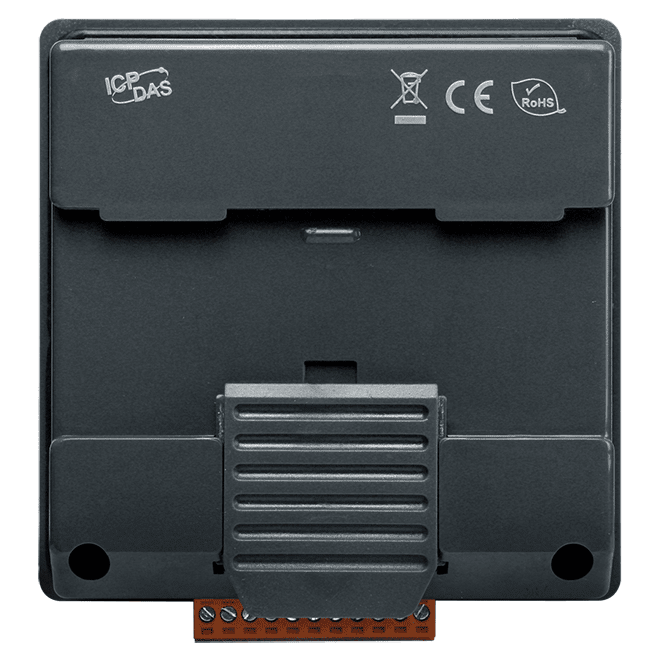

| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
