VPD-130-H 3.5-inch Touch HMI Device with RS-232/RS-485 and RTC
3.5-inch 240 x 320 colour touch HMI with one RS-232/RS-485 port, real-time clock, USB 1.1 firmware download port and IP65 front panel for DIN-rail or panel mounting.
- 3.5-inch 240 x 320 TFT touch screen with 65535 colours
- One RS-232/RS-485 serial port with Self-Tuner
- Real-time clock with 16 MB SDRAM and 16 MB Flash
- IP65 front panel with rubber keypad of five programmable keys
- Powered from +12 ~ 48 VDC terminal block, 2 W consumption
- Free HMIWorks software with GUI design and Ladder Designer
2 841,39 kr per st.
| 1–9 st. | 2 841,39 kr | |
|---|---|---|
| 10–30 st. | 2 764,00 kr | −3 % |
| 31+ st. | 2 697,66 kr | −5 % |
Produktinformation "VPD-130-H 3.5-inch Touch HMI Device with RS-232/RS-485 and RTC"

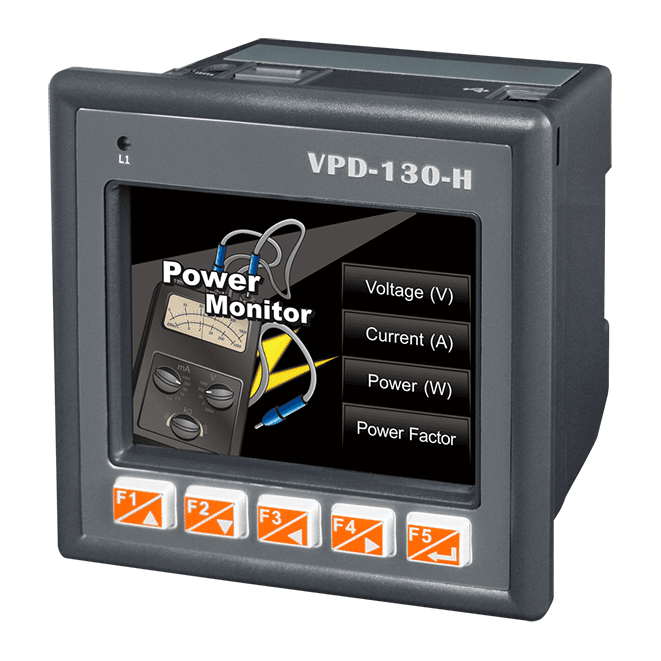

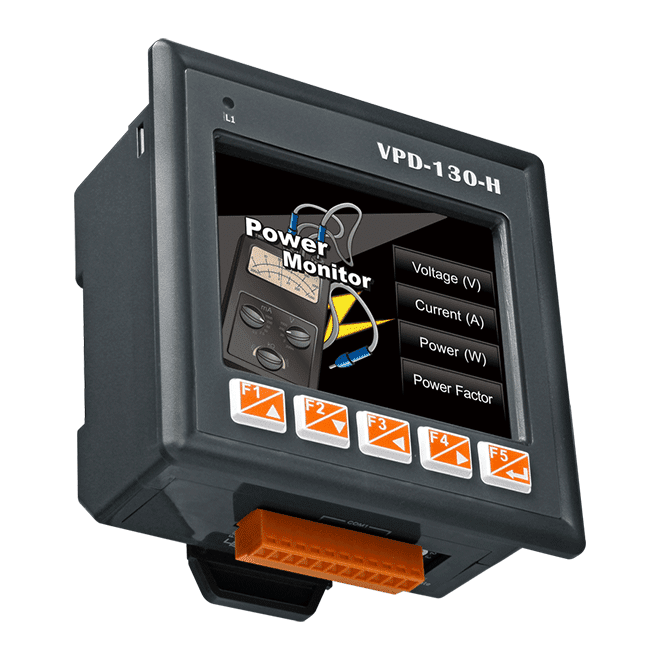

VPD-130-H CR is a 3.5-inch touch HMI for operator control and monitoring in automation systems. Its 240 x 320 colour TFT touch screen and single RS-232/RS-485 serial port suit both new installations and retrofits of existing equipment.
The unit includes a real-time clock, 16 MB SDRAM and 16 MB Flash, a buzzer, a rotary switch and a rubber keypad with five programmable keys. The front panel is rated IP65, and the device runs from a +12 ~ 48 VDC terminal block with a consumption of 2 W.
Applications are built with the free HMIWorks tool, which provides GUI design, Ladder Designer for PLC users and C language support for software developers, including user-defined third-party protocols. XV-Board I/O expansion boards are available for this series.
Applications
- Operator interfaces for automation and machine control
- Monitoring and control of remote I/O
- System retrofits and new installations
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-232/RS-485 |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail, Panel |
| Housing: | IP65 front panel |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 3.5 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 270 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Rubber Keypad | 5 keys (Programmable) |
| Reset Button | Yes |
| COM Ports | |

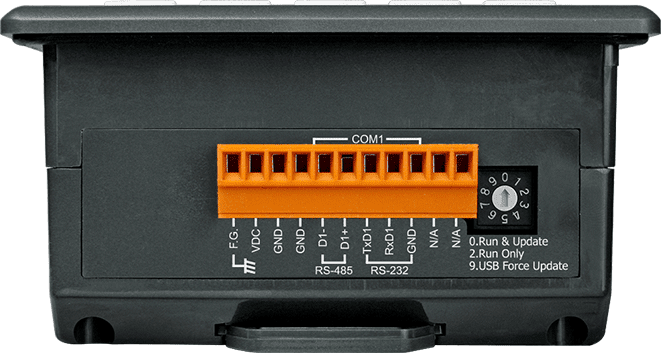

| Ports | 1 x RS-232/RS-485 including Self-Tuner |
| USB | |

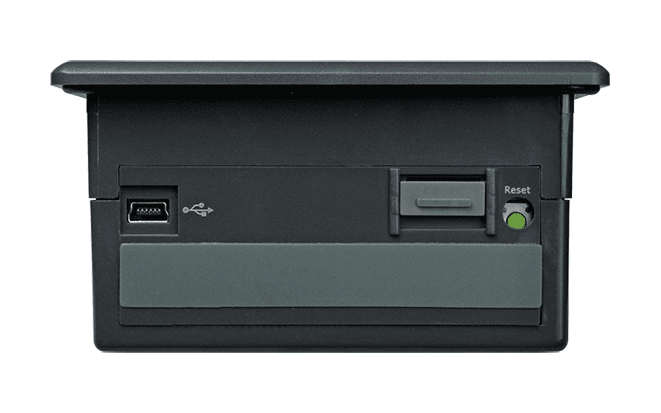

| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 103 mm x103 mm x 53 mm |

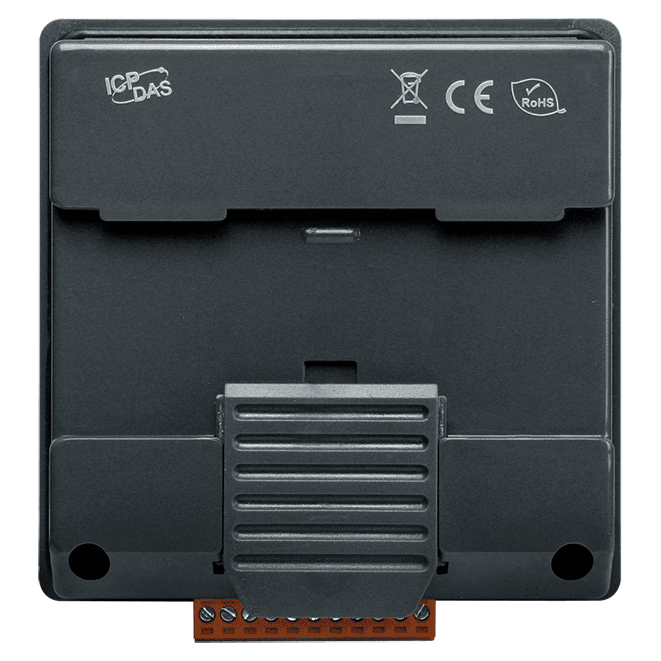

| Installation | DIN-Rail Mounting and Panel Mounting |
| Ingress Protection Rating | Front Panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
