VP-4231-CE7 10.4" WinCE ViewPAC with Cortex-A8 CPU and 3 I/O Slots
Panel-mounted 10.4" touch ViewPAC combining a 1 GHz Cortex-A8 controller, Windows CE 7.0 and three I/O expansion slots for HMI, data acquisition and control.
- Cortex-A8, 1.0 GHz CPU running Windows CE 7.0
- 10.4" TFT LCD, 800 x 600, with 5-wire resistive touch panel
- 512 MB SDRAM, 256 MB Flash and SD card storage up to 32 GB
- 3 I/O expansion slots for I-8K and I-87K series modules

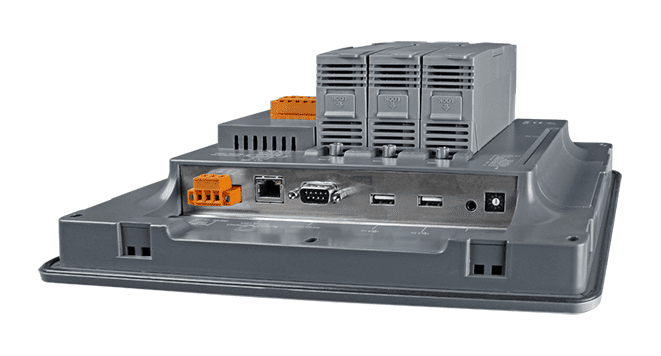

- 1 x 10/100/1000BASE-T Ethernet, 1 x RS-232/485 serial port with 2500 VDC isolated RS-485, 2 x USB 2.0 host
- Dual watchdog timer and built-in real-time clock
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "VP-4231-CE7 10.4" WinCE ViewPAC with Cortex-A8 CPU and 3 I/O Slots"

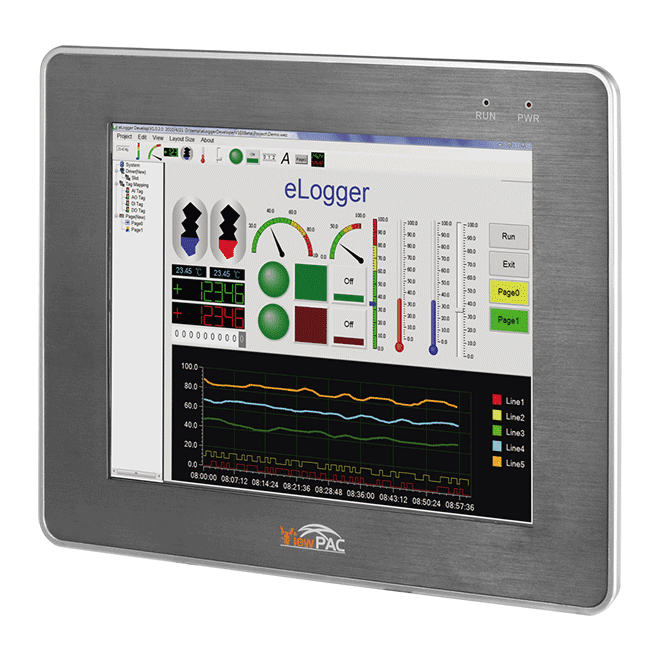

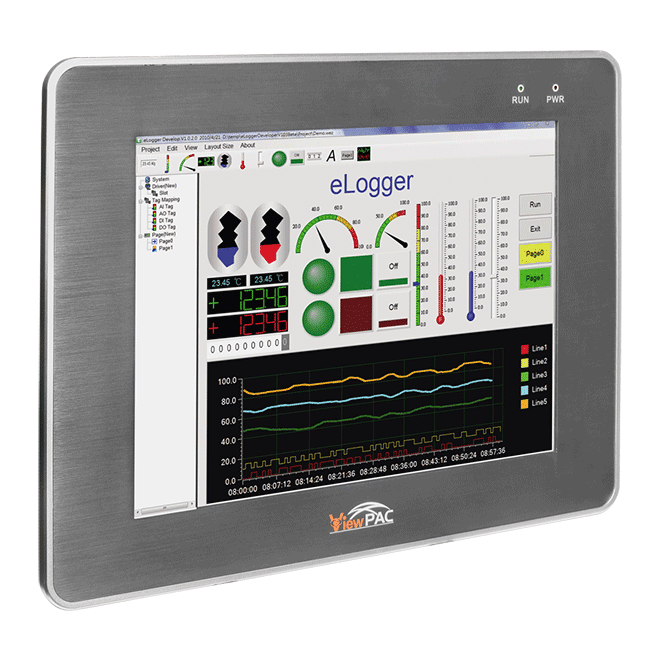

The VP-4231-CE7 brings computing, I/O and operator interface together in one panel-mounted unit. It runs Windows CE 7.0 on a 1.0 GHz Cortex-A8 processor and drives a 10.4" 800 x 600 TFT touch display, making it suited to combined HMI, data acquisition and control tasks.

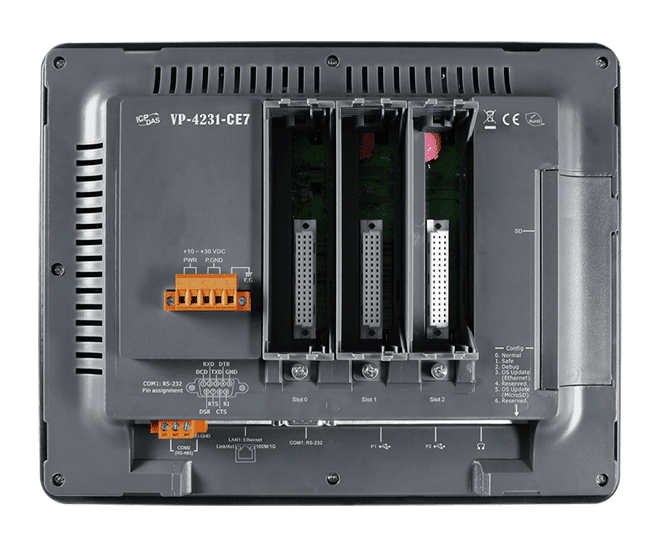

Local expansion uses three slots for I-8K and I-87K series I/O modules, and remote I/O can be added through Ethernet I/O and RS-485 I/O modules. Non-volatile storage includes 128 KB MRAM and 16 KB EEPROM for data retention, and a 64-bit hardware serial number supports software protection.
The front panel is rated NEMA 4/IP65 and the unit is designed for panel mounting. It operates from -20 to +70 °C, accepts +10 ~ 30 VDC with redundant power inputs, and carries RoHS and WEEE certifications.
Applications
- Operator interface (HMI) for machine and process control
- Data acquisition with local and remote I/O expansion
- Integrated control in panel-mounted installations
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 |
| Ports: | 1 Ethernet, 2 serial, 2 USB |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB SDRAM, 256 MB Flash |

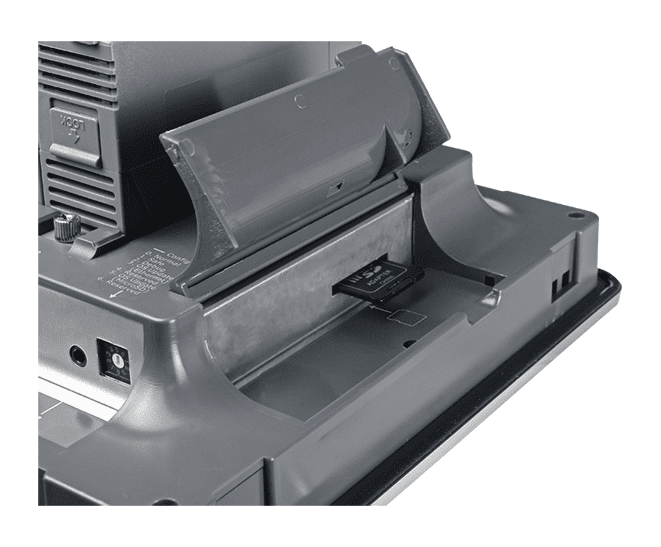

| Storage | SD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 10.4" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 0.45 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 291 x 229 x 129 (W x L x H) |
| Panel Cut-out (mm) | 276 x 214, ±1 (W x H) |
| Installation | Panel mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 2005 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
