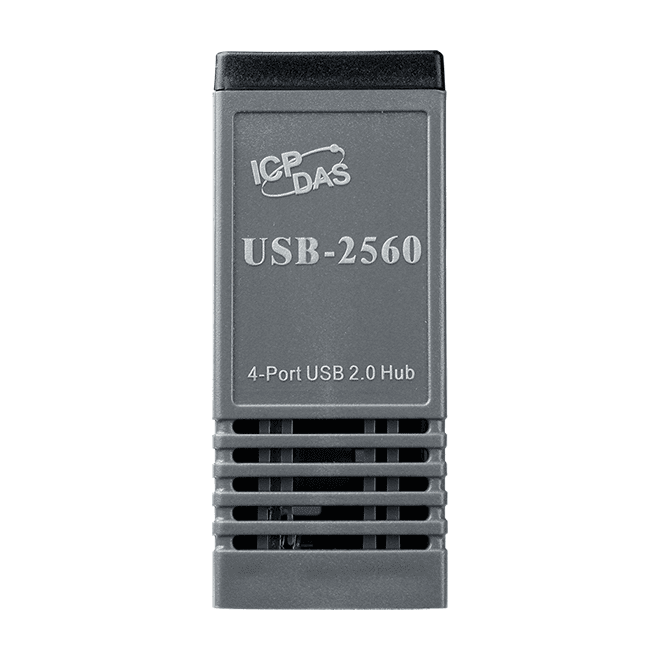

USB-2560/S 4-Port Industrial USB 2.0 Hub with GPSU06U-6 Power Supply
Self-powered 4-port industrial USB 2.0 hub for DIN-rail installation, with 480 Mbit/s high-speed support. Supplied with a CA-USB18 cable and GPSU06U-6 power supply.
- Four downstream USB 2.0 ports, each supplying up to 500 mA
- High-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) operation
- Self-powered operation only, from +10 ~ +30 VDC
- LED indicators for power and each downstream port
- DIN-rail mounting in a plastic housing, 33 x 107 x 78 mm
- Operating temperature 0 ~ +75 °C
1 393,06 kr per st.
| 1–9 st. | 1 393,06 kr | |
|---|---|---|
| 10–30 st. | 1 348,83 kr | −3 % |
| 31+ st. | 1 326,72 kr | −5 % |
Produktinformation "USB-2560/S 4-Port Industrial USB 2.0 Hub with GPSU06U-6 Power Supply"

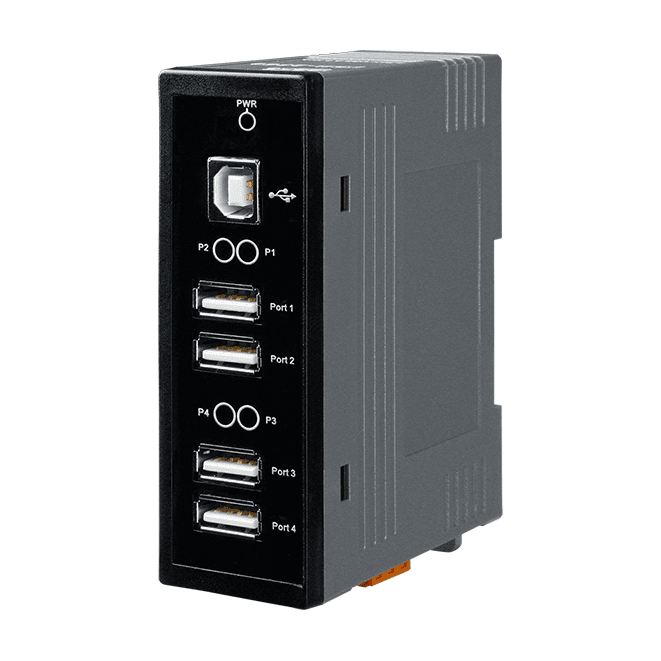

The USB-2560/S CR adds four downstream USB 2.0 ports to a host computer, so several peripheral devices can be connected through a single upstream Type B port. It complies with USB Specification Revision 2.0 and operates at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s).

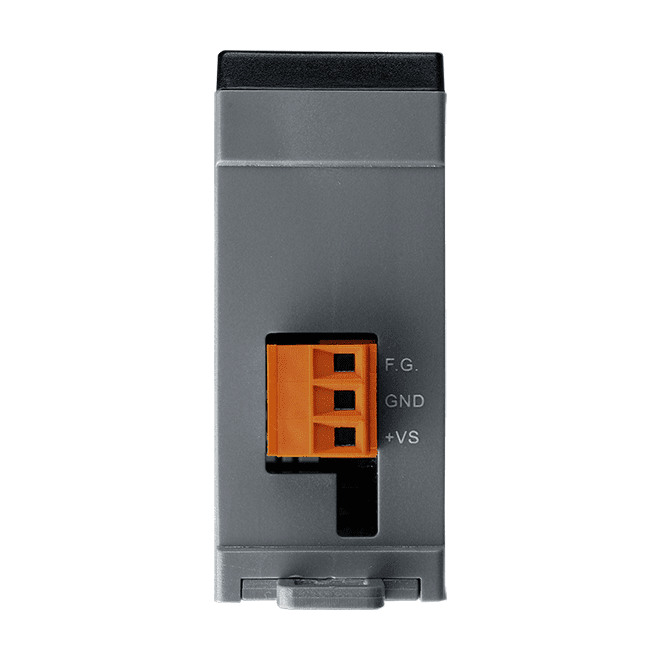

The hub works in self-powered mode only, taking its supply from an external +10 ~ +30 VDC source. The manufacturer notes that an externally powered hub gives the broadest compatibility for USB devices. Downstream port status is shown by LEDs, and the plastic housing mounts on a DIN-rail with an operating range of 0 ~ +75 °C.
This code is supplied with the CA-USB18 cable (USB 2.0 A-Male to B-Male, 1.8 m) and the GPSU06U-6 power supply (6 W), so it is ready to connect out of the box.
Applications
- Connecting multiple USB 2.0 peripheral devices to a computer
- Installation in industrial control cabinets on DIN-rail
| Product type: | USB Hub |
|---|---|
| Interface: | USB 2.0 |
| Ports: | 4 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | 0 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 4 x Downstream Ports |
| USB | |
| Ports | 4 |
| Specification | USB 1.1 and USB 2.0 standard compatible |
| Transfer Speed | 480 Mbit/s-high speed mode 12 Mbit/s- full speed mode 1.5 Mbit/s-low speed mode |
| Supply Current | 500 mA Max. per port |
| Connector | 1 x Upstream (Type B) 4 x Downstream (Type A) |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.25 A @ 24 VDC for 250mA per port. 0.5 A @ 24 VDC for 500mA per port. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | 0 ~ +75 °C |
| Storage Temperature | -20 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
