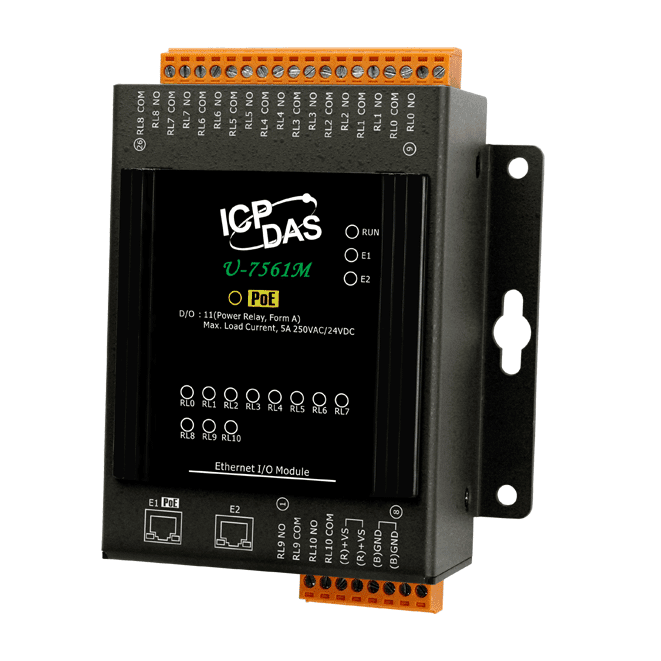

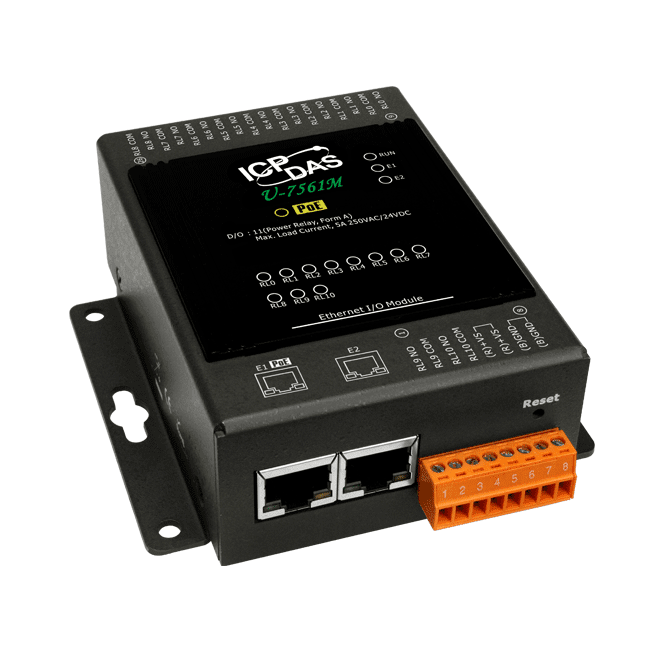

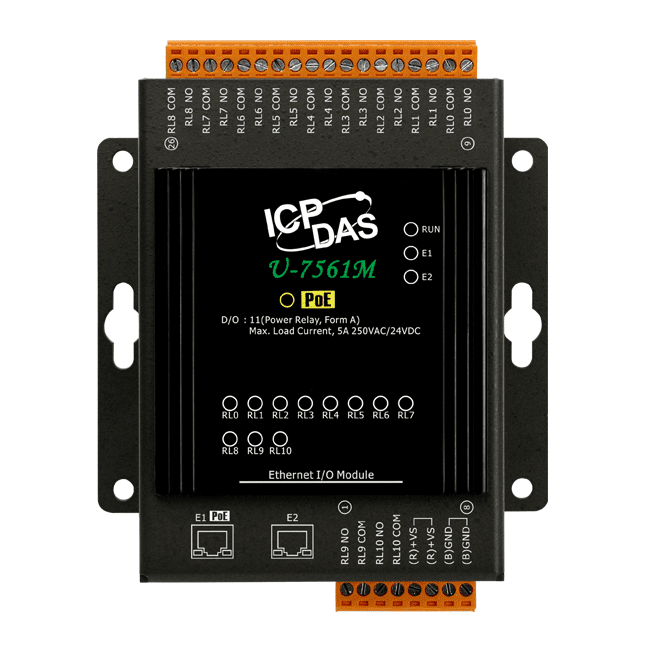

U-7561M OPC UA I/O Module, 11-ch Power Relay with 2-port Ethernet Switch
OPC UA I/O module with 11 power relay channels, a dual-port Ethernet switch for daisy-chain wiring and IEEE 802.3af PoE power input.
- 11 power relay channels, Form A (SPST N.O.), rated 5 A @ 250 VAC/24 VDC (resistive load)
- OPC UA Server/Client, MQTT Client and RESTful API (HTTP/HTTPS) running simultaneously
- Dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology
- IEEE 802.3af (Class 3) PoE input, or +12 ~ +48 VDC terminal block power
- Logic rules (IF, THEN, ELSE), scheduling and I/O trigger messages for local automation
- Built-in web user interface, with IoTstar Cloud management software support
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "U-7561M OPC UA I/O Module, 11-ch Power Relay with 2-port Ethernet Switch"
U-7561M is a networked I/O module that switches 11 power relay channels and reports their status over OPC UA, MQTT and RESTful API. Its built-in dual-port Ethernet switch lets you pass the network through the module in a daisy-chain, which reduces cabling and the need for separate switch ports.
The module can receive power from a PoE-enabled network (IEEE 802.3af, Class 3) or from a +12 ~ +48 VDC terminal block. Each relay is Form A (SPST N.O.) rated 5 A @ 250 VAC/24 VDC for resistive loads, with programmable power-on and safe values.
Configuration, control and monitoring are handled through a built-in web interface in a browser. Logic rules (IF, THEN, ELSE), scheduled actions and I/O trigger messages can run locally, and OPC UA, MQTT and RESTful API can be used at the same time.
Applications
- Remote switching of loads over an Ethernet network
- Passing I/O values to cloud or field control systems for display, analysis or control strategy
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Relay outputs: | 11 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 3000 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Relay Output | |
| Channels | 11 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 10 ms (max.) |
| Release Time | 5 ms (max.) |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 × 10^7 ops. |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

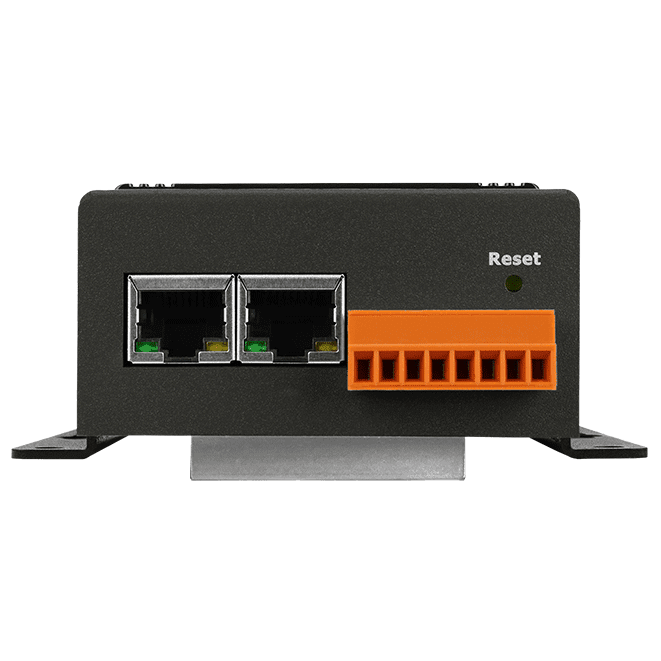

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 7.3 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

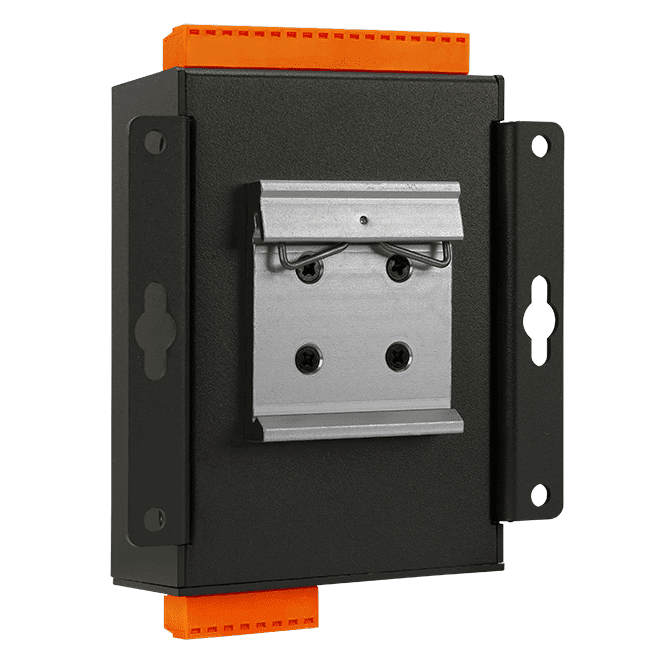

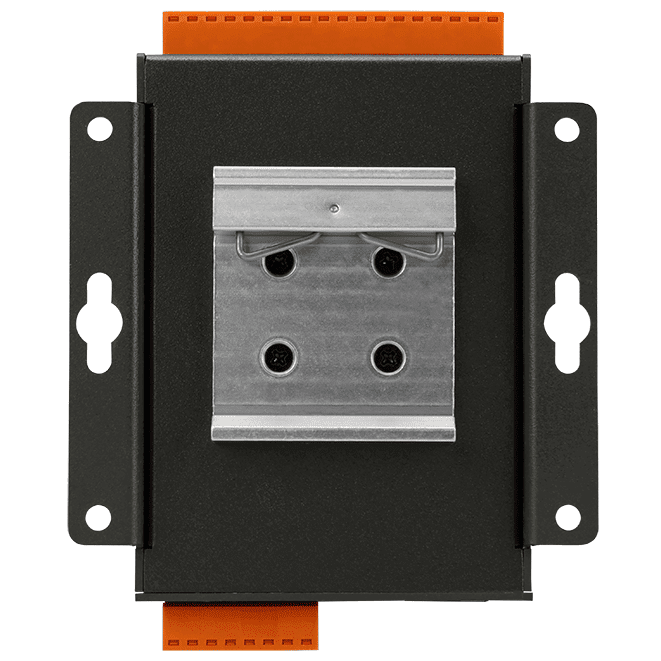

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
