TPD-283-M2 2.8-inch Touch HMI Device with PoE Ethernet
2.8-inch resistive touch HMI with a 240 x 320 TFT colour display, 10/100 Base-TX Ethernet and PoE (IEEE 802.3af), designed for building and home automation.
- 2.8-inch TFT colour touch screen, 240 x 320 resolution, 65535 colours, resistive touch
- Modbus TCP protocol support over a 10/100 Base-TX RJ-45 Ethernet port
- Power over Ethernet, IEEE 802.3af Class 1 (48 V), 1.5 W consumption
- Free HMIWorks development tool with Ladder Designer and C language environment
- Supports a custom communication protocol written in C
- Built-in buzzer, rotary switch and reset button
1 949,99 kr per st.
| 1–9 st. | 1 949,99 kr | |
|---|---|---|
| 10–30 st. | 1 883,52 kr | −3 % |
| 31+ st. | 1 850,28 kr | −5 % |
Produktinformation "TPD-283-M2 2.8-inch Touch HMI Device with PoE Ethernet"

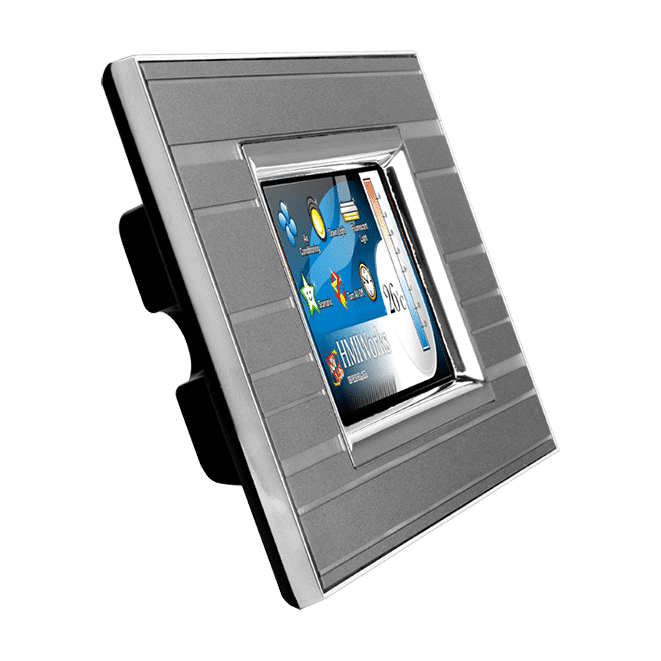

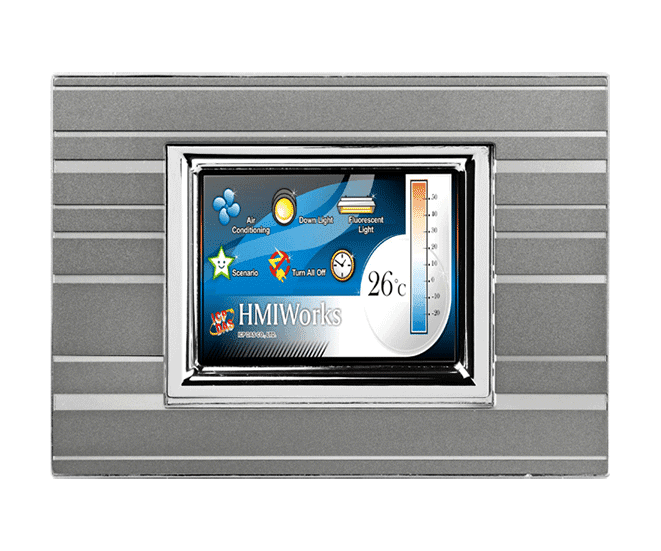

TPD-283-M2 CR is a compact 2.8-inch touch HMI with a high-resolution TFT colour display, designed for building and home automation. Its Ethernet port takes power over PoE, so a single cable can supply both power and network connectivity. It is intended to replace mechanical switches with intelligent control pads that show user-defined screens.
The unit supports Modbus TCP and a custom communication protocol written in C. Its wall-mounting design fits into a standard electrical wall outlet arrangement, and it includes a buzzer, a rotary switch and a reset button.
Application programs can be created in the free HMIWorks tool. PLC users can work with Ladder Designer, while users with programming experience can use the C language environment. The TPD-283-M2 CR is supplied with a gray cover and carries CE, UKCA, FCC, RoHS and WEEE certifications.
Applications
- Building automation
- Home automation
- Upgrading mechanical switches to intelligent control pads
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Ports: | 1 |
| PoE: | Yes (IEEE 802.3af) |
| Power input: | PoE, 48 V |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| Power | |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 30 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
