TPD-283-M1 2.8-inch Touch HMI with PoE Ethernet, Modbus TCP
Compact 2.8-inch resistive touch HMI with a 240 x 320 colour TFT, PoE-powered RJ-45 Ethernet and Modbus TCP support, designed for wall-mounted building and home automation control.
- Resistive touch on a high-resolution 2.8-inch TFT with 65535 colours
- PoE Ethernet powering to IEEE 802.3af, Class 1 (48 V), consumption 1.5 W
- Single RJ-45 10/100 Base-TX Ethernet port
- Modbus TCP protocol support
- Free HMIWorks tool with Ladder Designer and C language environment
- Custom communication protocols can be implemented in C
1 813,18 kr per st.
| 1–9 st. | 1 813,18 kr | |
|---|---|---|
| 10–30 st. | 1 757,90 kr | −3 % |
| 31+ st. | 1 713,68 kr | −5 % |
Produktinformation "TPD-283-M1 2.8-inch Touch HMI with PoE Ethernet, Modbus TCP"

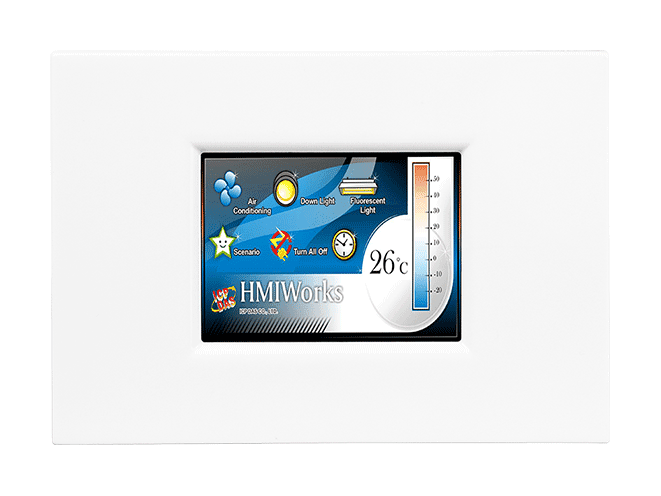

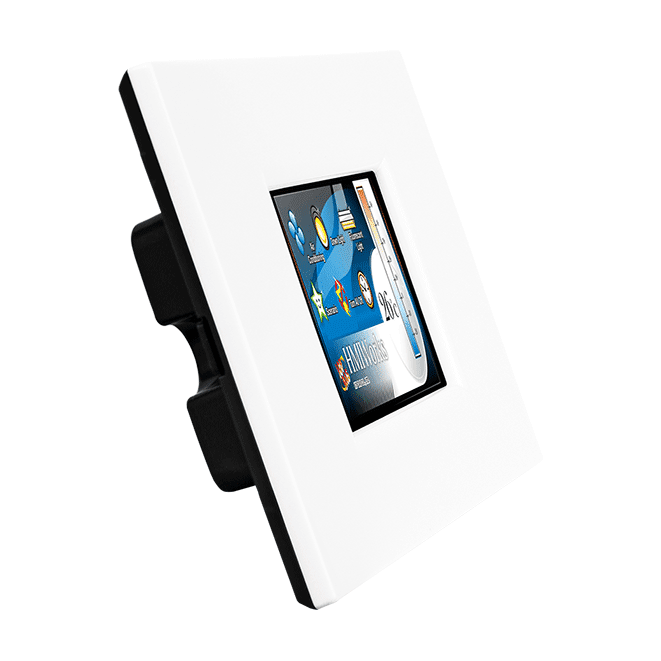

The TPD-283-M1 CR is a compact 2.8-inch touch HMI with a 240 x 320 colour TFT display and resistive touch panel, designed for wall-mounted building and home automation control. It is powered over Ethernet under IEEE 802.3af, so one RJ-45 connection provides both network access and power, making it a practical replacement for mechanical switches with an intelligent control pad.
Programming suits both PLC and IT engineers. The free HMIWorks development tool includes Ladder Designer for PLC-style logic, while the C language environment supports custom communication protocols. Modbus TCP is supported out of the box for connecting to controllers on the network.
- Operating temperature -20 ~ +70 °C, storage -30 ~ +80 °C
- Front panel IP40 rating, 127 mm x 92 mm x 30 mm
- Buzzer, rotary switch and reset button on the HMI panel
- White cover, supplied with CE, UKCA, FCC, RoHS and WEEE certifications
Applications
- Building automation control panels
- Home automation control pads
- Replacing mechanical wall switches with intelligent control pads
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet RJ-45 |
| Protocol: | Modbus TCP |
| Ports: | 1 |
| PoE: | Yes |
| Power input: | PoE 48 V (IEEE 802.3af Class 1) |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall-mount |
| Housing: | IP40 front panel |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| Power | |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 30 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
