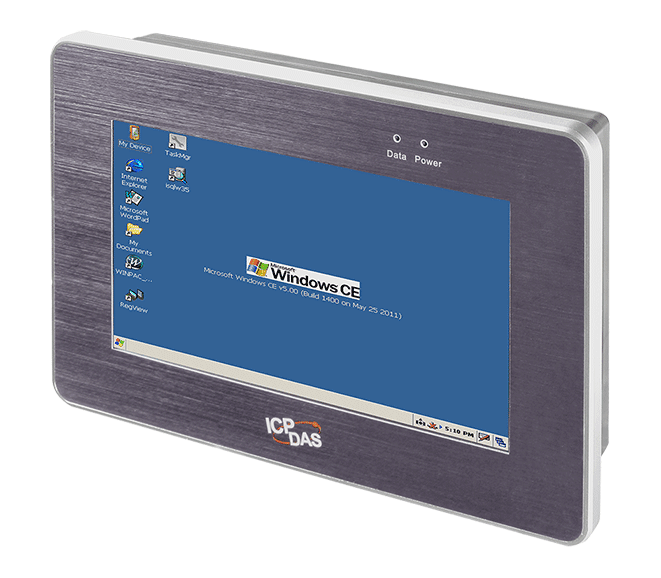

TP-2070/NP 7" Resistive Touch Monitor, 800 x 480, RS-232/USB, Without PSU
7-inch 800 x 480 resistive touch panel monitor with RS-232 or USB, IP65 front panel and -20 ~ +70 °C operation. Supplied without power supply.
- 7-inch LCD with 800 x 480 resolution, 400 cd/m2 brightness and 500:1 contrast ratio
- 4-wire analogue resistive touch panel with 80% light transmission
- IP65-rated front panel for dusty or splash-prone environments
- Full-function OSD control for brightness, contrast, clock, phase, position and sharpness
- Operating temperature -20 ~ +70 °C; storage -30 ~ +80 °C
- Driver support for Windows, Windows IoT, WES, WinCE and Linux
4 610,35 kr per st.
| 1–9 st. | 4 610,35 kr | |
|---|---|---|
| 10–30 st. | 4 477,68 kr | −3 % |
| 31+ st. | 4 389,23 kr | −5 % |
Produktinformation "TP-2070/NP 7" Resistive Touch Monitor, 800 x 480, RS-232/USB, Without PSU"
TP-2070/NP CR is a 7-inch panel mount touch monitor for operator interfaces in industrial control cabinets and machine panels. It pairs an 800 x 480 LED-backlit LCD with a 4-wire analogue resistive touch layer, so it can be operated with a finger, glove or stylus.
The front panel is rated IP65 and the unit is specified for operation from -20 to +70 °C. On-screen display controls cover brightness, contrast, clock, phase, horizontal and vertical position and sharpness. Driver support is listed for Windows, Windows IoT, WES, WinCE and Linux.

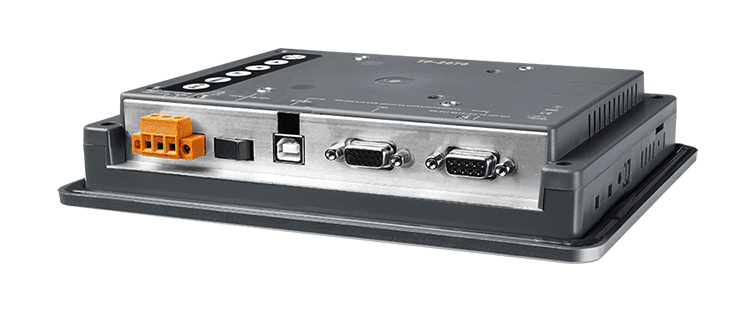

This ordering code is the version without a power supply. The unit accepts +12 ~ 48 VDC input and includes one RS-232 (combo) port and one USB port. It is guaranteed to work with ICP DAS PAC control systems such as the WP-5000 series, LinPAC series and XP-9000 series.
Applications
- Operator panels and HMI displays for ICP DAS PAC control systems
- Panel-mounted monitoring and control in industrial cabinets
- Machine control interfaces using Windows, WinCE or Linux software
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232, USB |
| Ports: | 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 7" |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 480 |
| Touch Panel | 4-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |

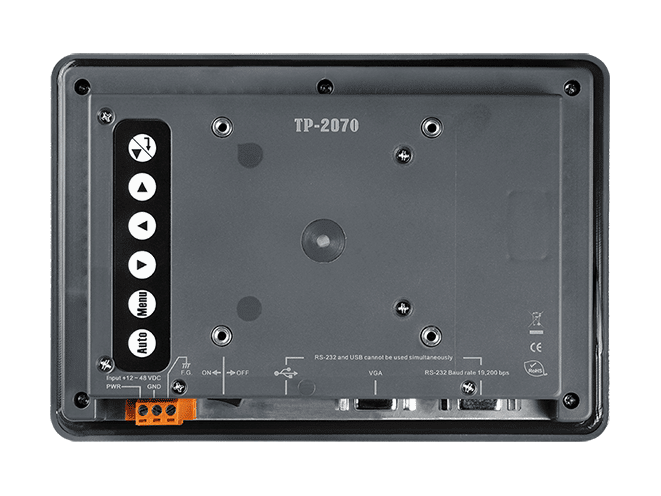

| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 5.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 213 x 148 x 44 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 695 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
