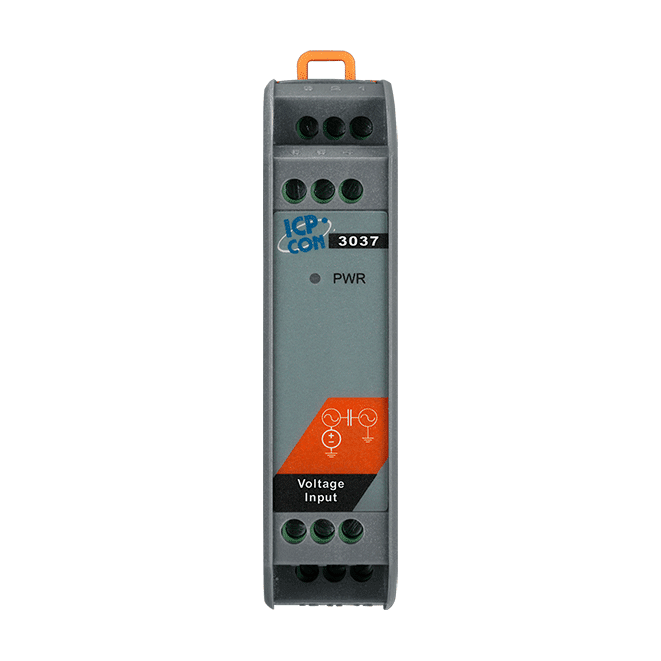

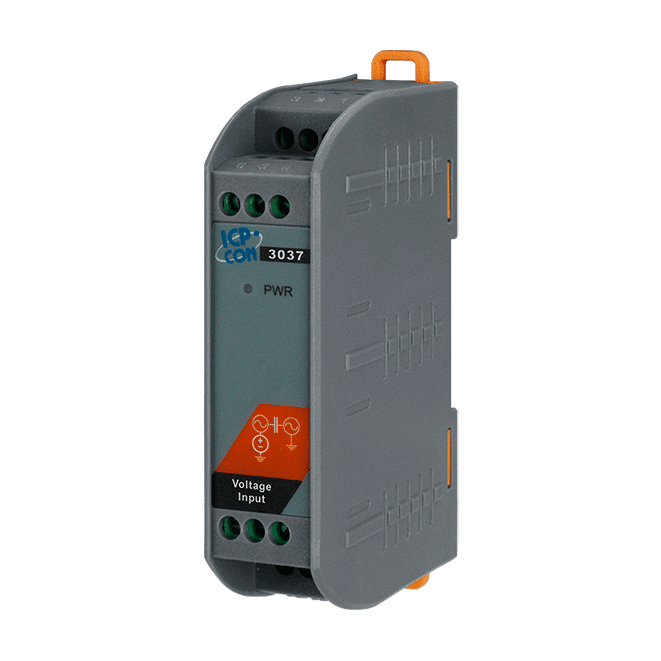

SG-3037-G Triaxial Signal Conditioner for Voltage-Output Accelerometers
Three-channel signal conditioner that accepts 0-24 V accelerometer outputs, supplies 24 VDC excitation and provides ±10 VDC analogue outputs with 50 kHz bandwidth.
- Three analogue voltage input channels, 0-24 V range
- Three ±10 VDC analogue voltage outputs
- 50 kHz signal bandwidth on the inputs
- 24 VDC excitation supply for the accelerometer
- Accuracy of ±5% of FSR
- Reverse polarity protection and 10 to 30 VDC power input
829,20 kr per st.
| 1–9 st. | 829,20 kr | |
|---|---|---|
| 10–30 st. | 807,09 kr | −3 % |
| 31+ st. | 784,98 kr | −5 % |
Produktinformation "SG-3037-G Triaxial Signal Conditioner for Voltage-Output Accelerometers"
SG-3037-G conditions the voltage output of a triaxial accelerometer so that all three axes can be read by downstream acquisition hardware. Each of the three input channels accepts a 0-24 V signal and delivers a corresponding ±10 VDC analogue output, keeping the vibration data in a form that standard I/O modules can digitise.
The unit also supplies the 24 VDC excitation voltage needed by the accelerometer, so no separate sensor supply is required. With a 50 kHz signal bandwidth, it suits vibration measurement work where fast changes in the signal need to be preserved. Reverse polarity protection and EFT, ESD and surge immunity ratings help it tolerate demanding installation conditions.
The SG-3037-G ordering code is the RoHS-compliant variant. It mounts on DIN-rail or on a wall and operates from -25 to +75 °C, making it practical for control cabinets and remote monitoring points alike.
Applications
- Data acquisition systems
- Remote diagnosis
- Vibration measurement
- Testing equipment
| Product type: | Signal conditioner |
|---|---|
| Analog inputs: | 3 |
| Analog outputs: | 3 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) | ±1 kV for Power Line |
| LED Indicators | |
| Status | 1 as Power Indicator |
| Analog Input | |
| Channels | 3 |
| Type | Voltage |
| Range | 0 ~ 24 VDC |
| Accuracy | ±5% of FSR |
| Bandwidth | 50 kHz |
| Analog Output | |
| Channels | 3 |
| Type | Voltage |
| Range | ±10 VDC |
| Excitation Voltage Output | |
| Range | 24 VDC |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
