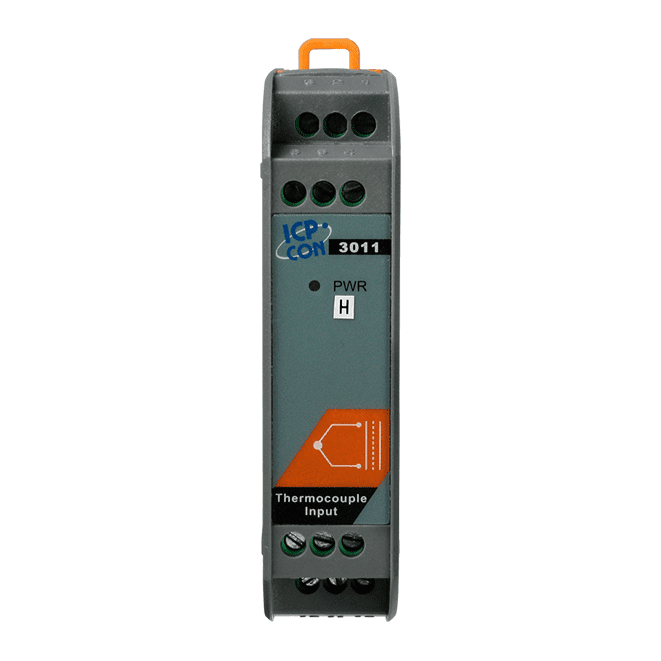

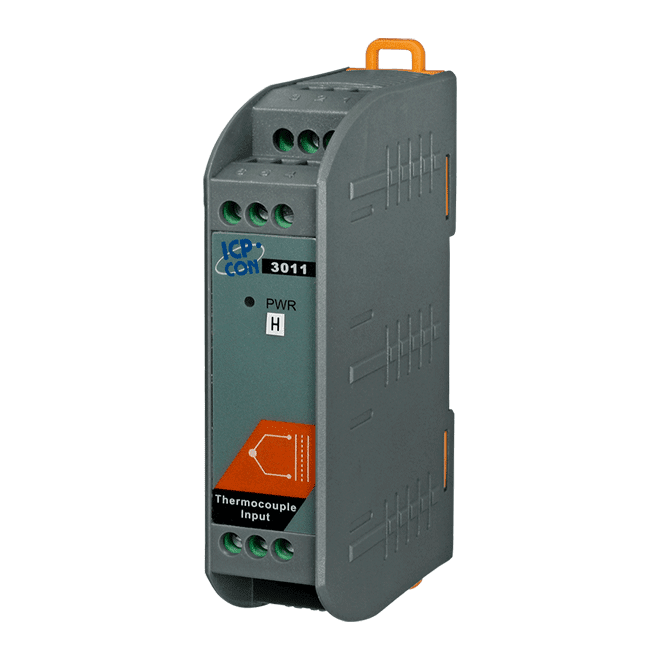

SG-3011H-G Thermocouple Input Signal Conditioner, High-speed 0.5 ms Response
Single-channel thermocouple input signal conditioner with 24-bit A/D conversion, switchable 0.5 ms or 100 ms response, 0 ~ 10 VDC or 0 ~ 20 mA output and 1000 VDC isolation.
- Single thermocouple input with 24-bit A/D conversion and linearisation
- Supports J, K, T, E, R, S, B, N, C, L, M and L2 (DIN43710) thermocouple types
- Switch-selectable response time of 0.5 ms or 100 ms
- Adjustable CJC offset and open thermocouple detection
- 0 ~ 10 VDC or 0 ~ 20 mA analogue output with 12-bit resolution
- Three-way isolation rated at 1000 VDC
2 056,42 kr per st.
| 1–9 st. | 2 056,42 kr | |
|---|---|---|
| 10–30 st. | 1 990,08 kr | −3 % |
| 31+ st. | 1 945,86 kr | −5 % |
Produktinformation "SG-3011H-G Thermocouple Input Signal Conditioner, High-speed 0.5 ms Response"
The SG-3011H-G converts a thermocouple input into a standardised analogue output for use in control and monitoring systems. A microprocessor-controlled 24-bit A/D converter samples the thermocouple and the cold junction compensation input, and linearisation and cold junction compensation are applied to the reading. It supports twelve thermocouple types, from J and K through to R, S, B and the DIN43710 L2 type.
Response time is switch selectable between 0.5 ms and 100 ms, so the module can be set for fast-changing signals or for slower, steadier readings. Adjustable CJC offset and open thermocouple detection help with commissioning and fault diagnosis. The internally isolated power supply for the input and output circuitry provides three-way isolation rated at 1000 VDC.
The module mounts on a standard DIN rail and is specified for an operating range of -25 ~ +75 °C, making it suitable for cabinets in demanding environments. Its 0 ~ 10 VDC and 0 ~ 20 mA outputs are supplied with a 12-bit resolution and ±0.1% of FSR accuracy.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Signal conditioner |
|---|---|
| Analog inputs: | 1 |
| Analog outputs: | 1 |
| Isolation: | 1000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Isolation | |
|---|---|
| Three-way Isolation | 1000 VDC |
| Analog Input | |
| Channels | 1 |
| Type | J, K, T, E, R, S, B, N, C, L, M, L2 |
| Resolution | 24-bit |
| Accuracy | ±0.1% of FSR |
| Input Impedance | 1.6 MΩ |
| Open Wire Detection | Yes |
| Offset Mode | Adjustable CJC Offset |
| Response Time | 0.5 ms or 100 ms (Switch Selectable) |
| Analog Output | |
| Channels | 1 |
| Type | 0 ~ 10 VDC, 0 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Current Output Wiring | <50 Ω |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.44 W |
| Mechanical | |
| Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
