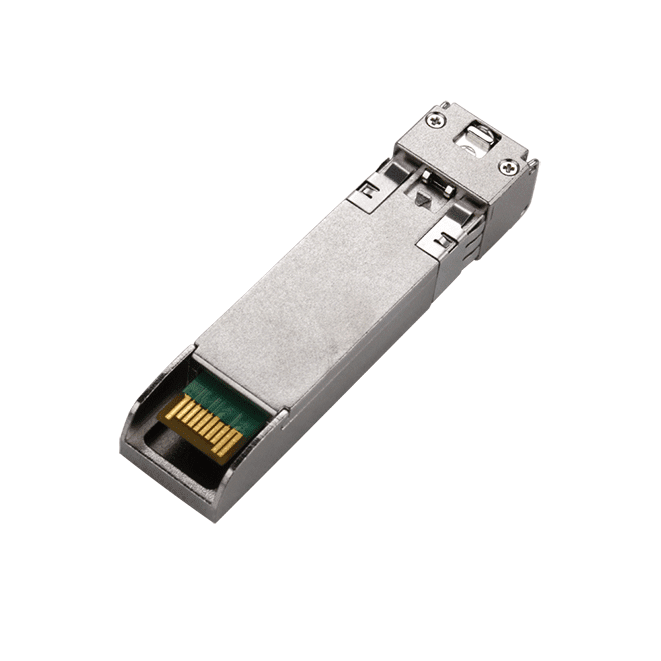

SFP-1G85M-SX 1000Base-SX Multi-mode SFP Module, 850 nm, 0.5 km
Multi-mode SFP module for 1000Base-SX fibre links at 850 nm, with an LC connector and a 0.5 km reach. Hot-pluggable for easy expansion of fibre switch ports.
- 1000Base-SX multi-mode fibre transceiver operating at 850 nm
- LC fibre connector
- Rated distance of 0.5 km
- Hot-pluggable SFP form factor for easy port extension
- Operating temperature range of -40 ~ +85 °C
- Supports fibre links that reduce EMI and noise interference
608,08 kr per st.
| 1–9 st. | 608,08 kr | |
|---|---|---|
| 10–30 st. | 585,97 kr | −4 % |
| 31+ st. | 574,91 kr | −5 % |
Produktinformation "SFP-1G85M-SX 1000Base-SX Multi-mode SFP Module, 850 nm, 0.5 km"
The SFP-1G85M-SX CR is a 1000Base-SX SFP module for multi-mode fibre links at 850 nm, with an LC connector and a rated distance of 0.5 km. It is intended for use in fibre switches that take SFP modules, adding gigabit fibre connectivity where a port needs upgrading or a link needs extending.
Because the module supports hot plugging, it can be inserted or removed while the host equipment is running, which simplifies maintenance and future port changes. Using fibre instead of copper for the link also helps to reduce EMI and noise interference, as noted by the manufacturer.
The module is rated for an operating temperature of -40 ~ +85 °C and carries CE, UKCA, FCC, RoHS and WEEE certification marks. Check the compatibility of your host switch with SFP modules before ordering.
Applications
- Gigabit multi-mode fibre uplinks in fibre switches with SFP ports
- Extending Ethernet connectivity over fibre where EMI and noise are a concern
| Product type: | SFP module |
|---|---|
| Interface: | LC |
| Operating temperature: | -40 ~ +85 °C |
Specifikationer
| Fiber | |
|---|---|
| Connector | LC |
| Speed | 1000Base-SX |
| Mode | Multi-mode |
| Distance | 0.5 km |
| Wavelength | 850 nm |
| Environment | |
| Operating Temperature | -40 ~ +85 °C |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
