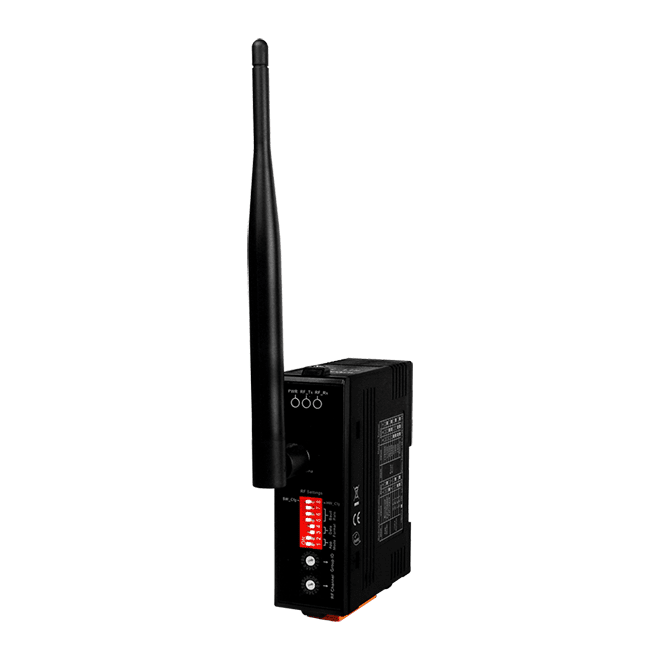

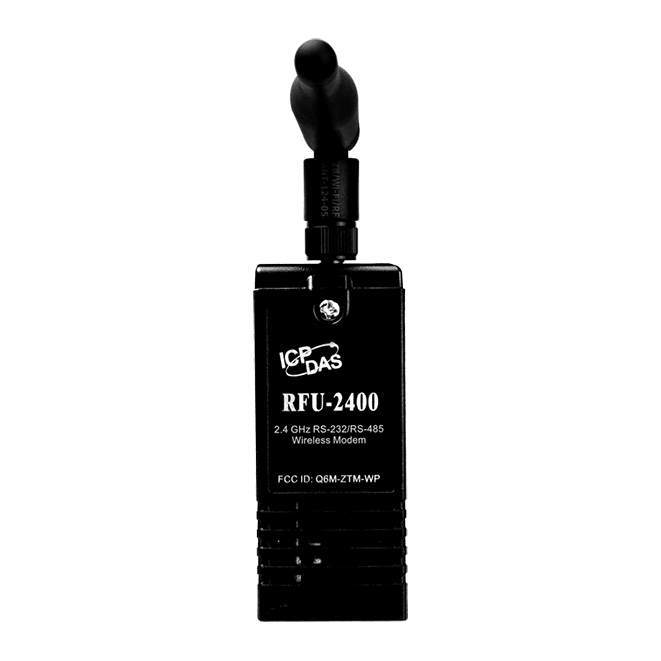

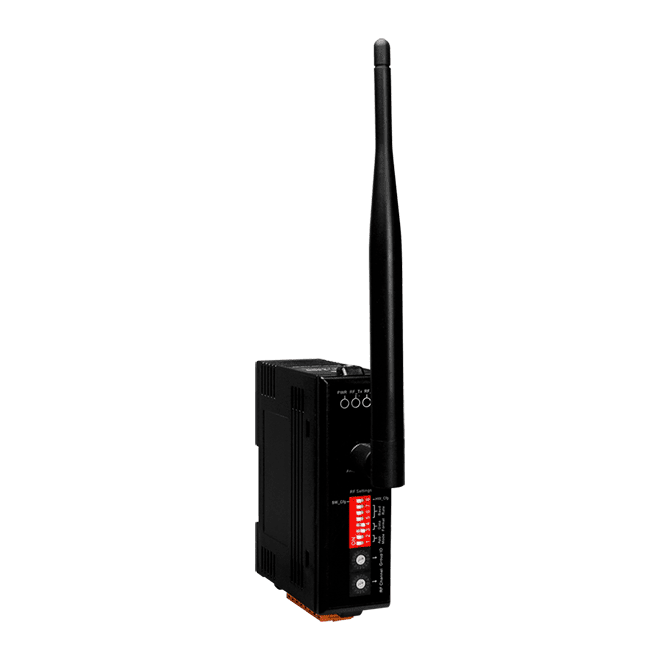

RFU-2400 2.4 GHz DSSS RF Wireless Modem, 1-port RS-232/485
A 2.4 GHz DSSS RF modem with one RS-232 and one RS-485 port, acting as a wireless serial bridge for remote sensors where cabling is impractical. Range up to 700 m.
- 2.4 GHz ISM band DSSS RF modem using IEEE 802.15.4 principles
- One RS-232 port and one RS-485 port for serial-to-wireless bridging
- Wireless range up to 700 m (default setting), 700 m typical line of sight
- Half-duplex communication up to 115200 bps and full-duplex up to 57600 bps
- Peer-to-Peer mode for full-duplex and Broadcast mode for half-duplex multi-point links
- Fully external switch for hardware configuration
2 204,82 kr per st.
| 1–9 st. | 2 204,82 kr | |
|---|---|---|
| 10–30 st. | 2 138,34 kr | −3 % |
| 31+ st. | 2 094,03 kr | −5 % |
Produktinformation "RFU-2400 2.4 GHz DSSS RF Wireless Modem, 1-port RS-232/485"
The RFU-2400 CR is a 2.4 GHz wireless modem that converts serial signals into a radio link, so a host and remote devices can exchange data without a physical cable run. It offers one RS-232 port and one RS-485 port, which makes it suitable for linking existing serial equipment into a wireless network.
Built on direct sequence spread spectrum (DSSS) radio technology and the IEEE 802.15.4 standard, the modem operates across 16 channels in the 2405 to 2480 MHz range. It supports Peer-to-Peer mode for full-duplex communication and Broadcast mode for half-duplex multi-point links. Configuration is handled by a fully external switch, and the unit is fitted with surge and ESD protection.
Key points for specification:
- Default transmission power of 11 dBm, rising to 19 dBm maximum
- Receive sensitivity of -96 dBm
- Power consumption of 1 W maximum
- Operating temperature range of -25 ~ +75 °C
- Plastic housing for DIN-rail mounting
Applications
- Low-cost data acquisition between a host and remote sensors
- Wireless control links where physical wiring is inconvenient
- Serial-to-wireless bridging for existing RS-232 or RS-485 equipment
- Multi-point serial communication using Broadcast mode
| Product type: | RF wireless modem |
|---|---|
| Interface: | RS-232/RS-485 |
| Protocol: | IEEE 802.15.4 |
| Ports: | 2 |
| Isolation: | Non-isolated (RS-485) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer

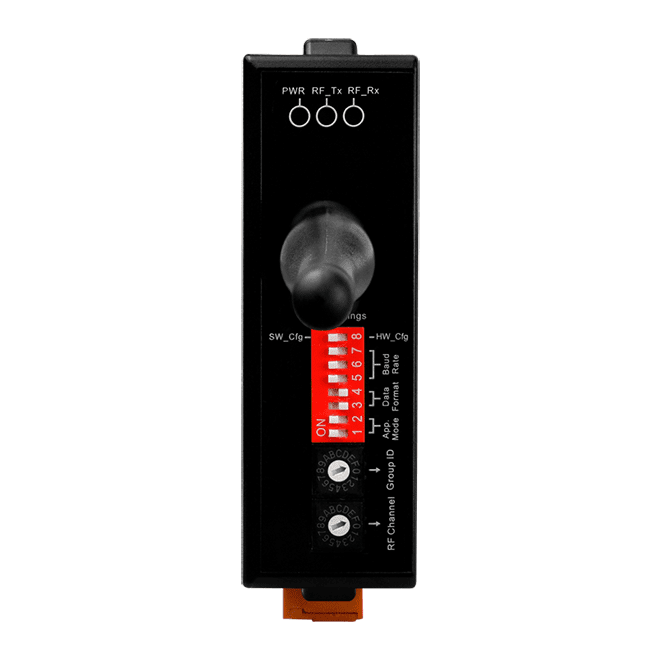

| LED Indicators | |
|---|---|
| Status | 1 x RF_Tx 1 x RF_Rx 1 x PWR |
| RF | |
| Antenna | 2.4G - 5 dBi Omnidirectional Ante |
| Channels | 16 |
| Modulation | OQPSK (Offset Quadrature Phase-shift Keying) |
| RX Sensitivity | -96 dBm |
| Spread Spectrum | DSSS (Direct-Sequence Spread Spectrum) |
| Transmission Power | 11 dBm (Default) 19 dBm (Max.) |
| Transmission Distance (LoS) | 700 m (Typical) |
| COM Ports | |

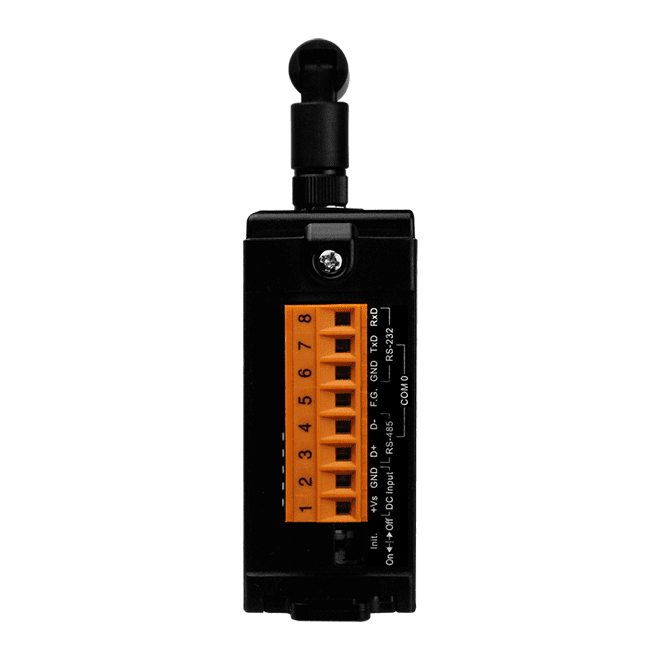

| Ports | 1 x RS-232(TxD, RxD and GND) 1 x RS-485(DATA+, DATA-; Internal ASIC Self-tuner; Non-isolated) |
| Baud Rate | Full-duplex: 2400 to 57600 bps Half-duplex: 2400 to 115200 bps |
| Data Format | N81, O81, E81, N82 |
| Receive Buffer | 2560 Bytes |
| Power | |
| Consumption | 1 W (Max.) |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 108 x 84 x 33 (W x L x H)( not include antenna ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
