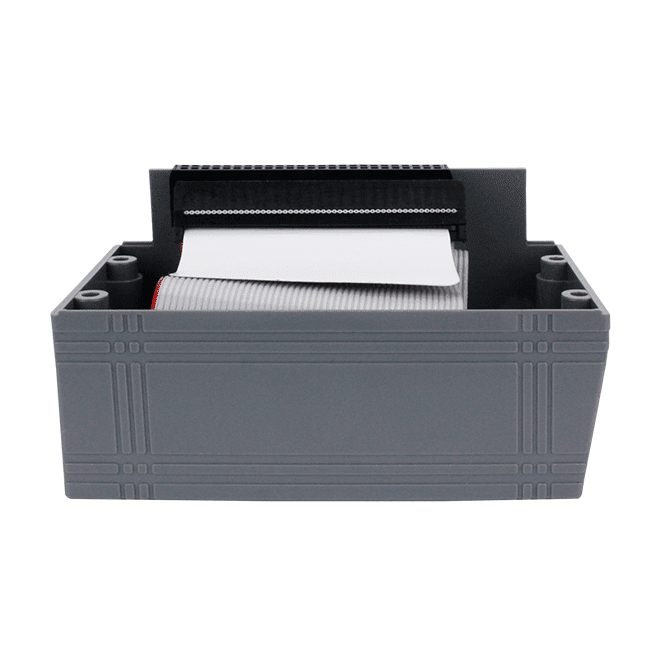

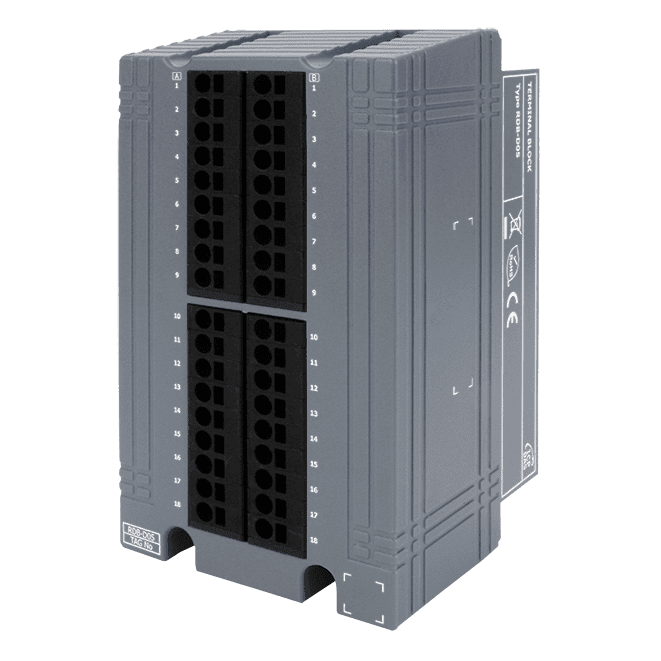

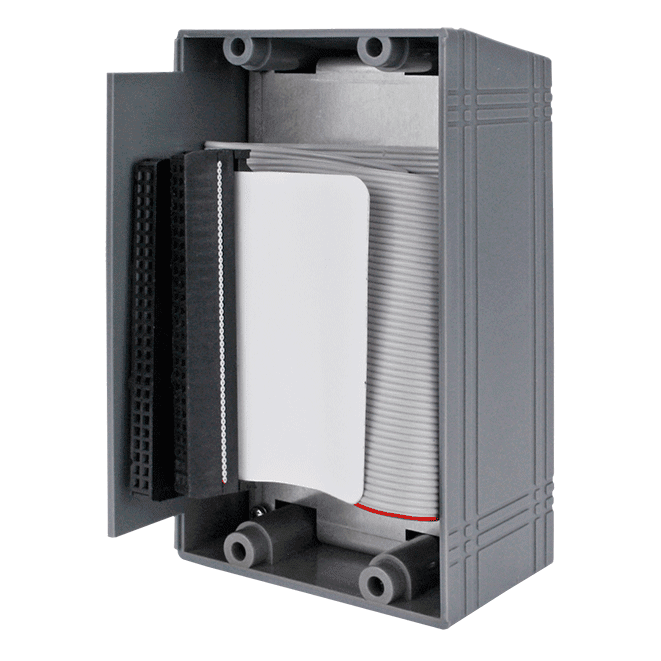

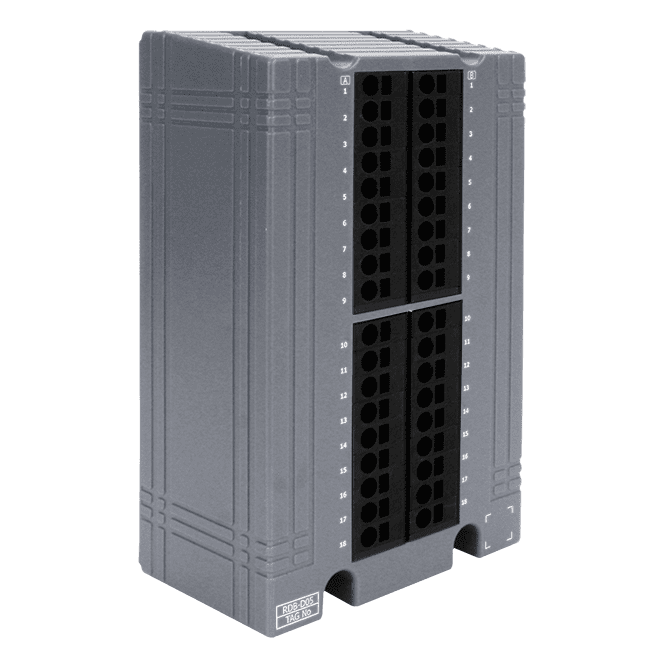

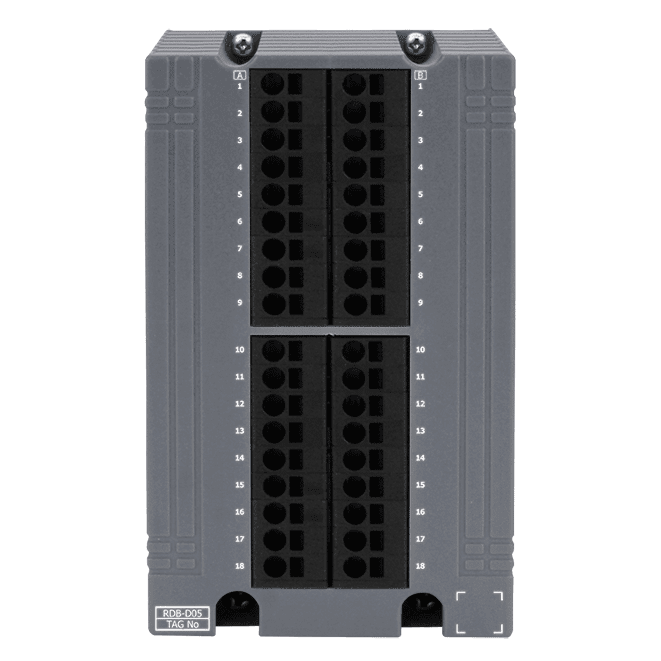

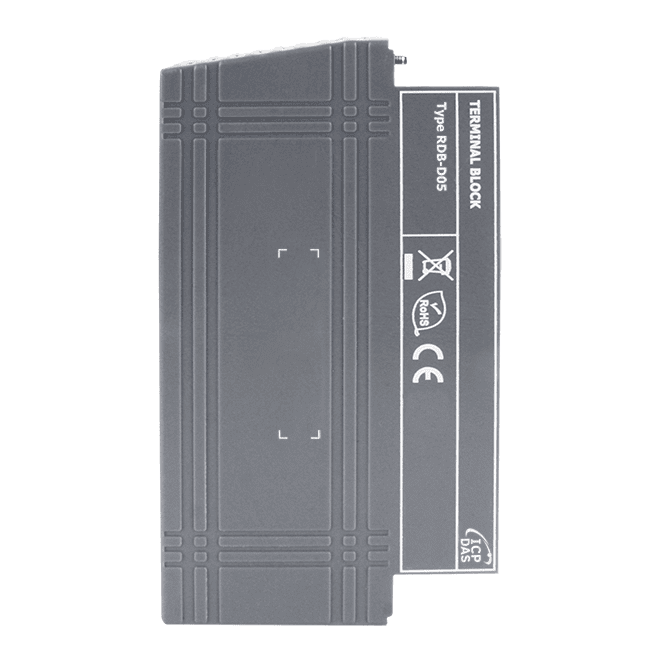

RDB-D05 Duplex DO Termination Board for R-9041, Spring Clamp
Spring clamp termination board for the duplex digital output of the R-9041, with disconnection detection that raises an alarm if it separates from the I/O module.
- Spring clamp terminals for faster, simpler wiring and shorter installation time
- Terminal board disconnection detection raises an alarm when the board separates from the I/O module
- Designed for the R-9041 duplex digital output module
- 32 digital output channels
- Operating temperature -25 °C ~ 70 °C
- Humidity tolerance 5 ~ 95% RH, non-condensing
1 794,88 kr per st.
| 1–9 st. | 1 794,88 kr | |
|---|---|---|
| 10–30 st. | 1 739,48 kr | −3 % |
| 31+ st. | 1 706,24 kr | −5 % |
Produktinformation "RDB-D05 Duplex DO Termination Board for R-9041, Spring Clamp"
RDB-D05 CR is a termination board for the duplex digital output module R-9041. Its spring clamp terminals simplify field wiring and reduce the time needed to install a system.
The board monitors its connection to the I/O module. If it becomes disconnected, an alarm is triggered promptly, helping to protect wiring integrity and reduce the risk of undetected system faults in demanding installations.
- 32 digital output channels
- Dimensions 65 x 115 x 60 mm
- Operating temperature -25 °C ~ 70 °C, 5 ~ 95% RH non-condensing
Applications
- Field wiring of duplex digital output signals in Remote I/O systems using the R-9041
- Industrial environments requiring high wiring reliability and signal stability
- Systems where early alarm on terminal board disconnection is required
| Product type: | Termination board |
|---|---|
| Digital outputs: | 32 |
| Operating temperature: | -25 ~ +70 °C |
Specifikationer
| Digital Output | |
|---|---|
| Channels | 32 |
| Mechanical | |
| Dimensions (mm) | 65 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ 70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
